B&R 4PP045.0571-062

Q: When can 4PP045.0571-062 be shipped?

4PP045.0571-062 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 4PP045.0571-062 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 4PP045.0571-062 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4PP045.0571-062, subject to availability and destination.

Power Panel PP45 5.7&quot

MPN: 4PP045.0571-062
Category: Power Panel 45

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 4PP045.0571-062?

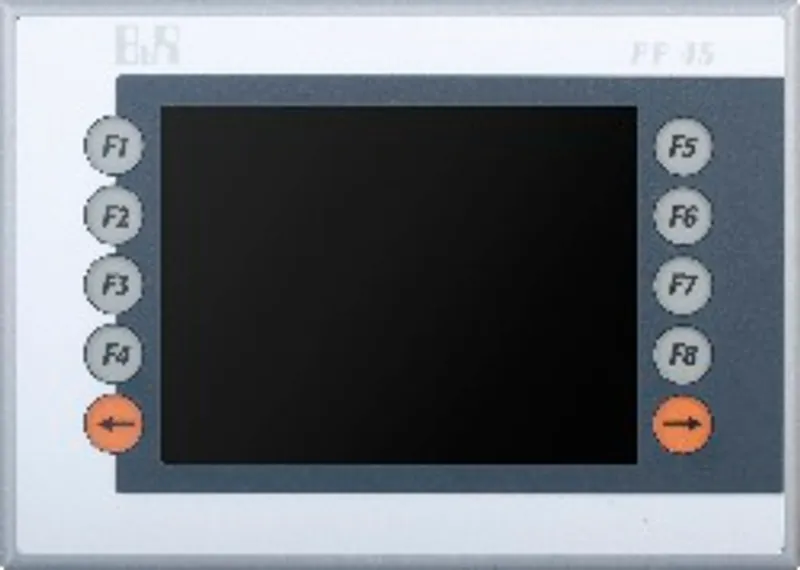

Power Panel PP45 5.7" QVGA color LC display with touch screen (resistive), 10 touch-keys, 64 MB DRAM, 48 kB SRAM, CompactFlash slot, 1x ETH 10/100, 1x X2X Link, 2x USB, IP65 protection (from front), order program memory separately, order TB103 and TB704 terminal blocks separately.

Specifications

General information

Battery – Type	Renata 950 mAh
Battery – Service life	2½ years
Battery – Removable	Yes, accessible from the outside
Battery – Variant	Lithium Ion
Certifications – KC	Yes

24 VDC power supply

Input voltage

24 VDC ±25%

Controller

Real-time clock – Battery-backed	Yes
SRAM – Size	48 kB
SRAM – Battery-backed	Yes
Mode/Node switches	2, 16 digits each
Power failure logic	System management controller, 10 ms buffer time
Processor	ELAN SC520 100 MHz, Intel compatible
Watchdog	Internal system management controller
Main memory	64 MB DRAM
PP45 Compact IF slot	1

Display

Viewing angles – Horizontal	Direction R / Direction L = 40°
Viewing angles – Vertical	Direction U = 40°/ direction D = 50°
Backlight – Brightness	140 cd/m²
Backlight – Half-brightness time	55,000 h
Touch screen – Technology	Analog, resistive
Type	Color LCD
Diagonal	5.7" (144 mm)
Colors	512 (note: The actual number of colors depends on the graphics memory, the graphics mode set and the graphics driver used.)
Resolution	QVGA, 320 x 240 pixels

Interfaces

CompactFlash slot 1 – Type	Type I
USB – Quantity	2
USB – Type	USB 2.0
USB – Variant	Type A
USB – Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s), high speed (480 Mbit/s)
USB – Current-carrying capacity	Max. 500mA per connection
Ethernet – Quantity	1
Ethernet – Transfer rate	10/100 Mbit/s
Ethernet – Max. baud rate	100 Mbit/s
X2X – Quantity	1
X2X – Variant	4-pin plug
X2X – Status LED	Yes

Keys

Function keys

Operating conditions

Degree of protection per EN 60529

IP65 (front side) / IP20 (back side)

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-20 to 70°C
Temperature – Transport	-20 to 70°C
Relative humidity – Operation	10 to 90%
Relative humidity – Storage	T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: < 90%

Mechanical properties

Dimensions – Width	203 mm
Dimensions – Height	145 mm
Dimensions – Depth	55 mm
Weight	0.5 kg

Accessories

Required accessories (order separately)

0TB103.91	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
0TB103.9	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
5CFCRD.2048-06	CompactFlash cards — 2 GBSLC flash CompactFlash card
0TB704.91	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB704.9	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.

Optional accessories (7)

4A0006.00-000	Batteries — Lithium battery, 3 V / 950 mAh, button cell
0AC201.91	Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell
4PP045.IF33-1	Interface modules — PP45 interface module, 2 CAN interfaces isolated and network-capable, order 0TB704 terminal block separately.
4PP045.IF24-1	Interface modules — PP45 interface module, 1 PROFIBUS DP slave interface isolated and network-capable, 1 RS232 interface, 1 RS422/RS485 interface, RS422/RS485:…
4PP045.IF23-1	Interface modules — PP45 interface module, 1 RS232 interface, 1 RS485/RS422 interface, RS422 isolated, RS485 isolated and network-capable, RS232/RS485/RS422 co…
4PP045.IF10-1	Interface modules — PP45 interface module, 1 RS232 interface
4A0064.00-000	Legend strips — 5 piece of DIN A4 legend strips 16 areas for all in all 40 PP45 devices Download the CorelDraw file, from the web site.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings
