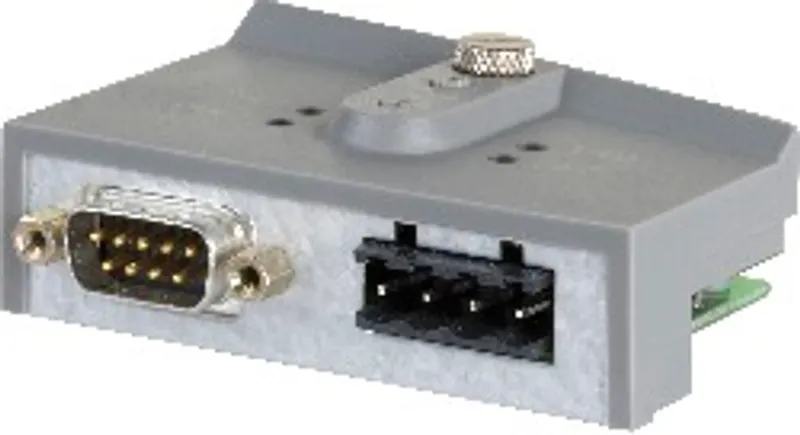

B&R 4PP045.IF23-1

Communication module, 1x RS232/RS422/RS485, 1x CAN

MPN: 4PP045.IF23-1
Category: Interface modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 4PP045.IF23-1?

PP45 interface module, 1 RS232 interface, 1 RS485/RS422 interface, RS422 isolated, RS485 isolated and network-capable, RS232/RS485/RS422 combined in one connector, 1 CAN interface isolated and network-capable, order 0TB704 terminal block separately.

Specifications

Short description

Communication module

1x RS232/RS422/RS485, 1x CAN

Interfaces

Interface IF1 – Type	RS232
Interface IF1 – Variant	9-pin DSUB plug
Interface IF1 – Max. transfer rate	115.2 kbit/s
Interface IF2 – Type	RS485/RS422
Interface IF2 – Variant	9-pin DSUB plug
Interface IF2 – Max. transfer rate	115.2 kbit/s
Interface IF3 – Type	CAN bus
Interface IF3 – Variant	4-pin multipoint plug
Interface IF3 – Max. transfer rate	1 Mbit/s

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file DXF/STEP 4PP045.IFxx-1ZIP · 3 MB · 1.0 (12/10/2008)
