Home / B&R / Interface modules / B&R 4PP045.IF10-1

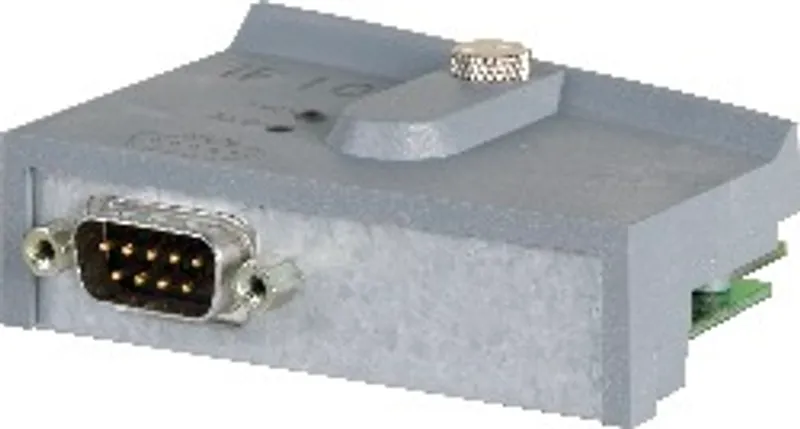

B&R 4PP045.IF10-1

Communication module, 1x RS232

MPN: 4PP045.IF10-1
Category: Interface modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 4PP045.IF10-1?

PP45 interface module, 1 RS232 interface

Specifications

General Information

Communication module

1 x RS232

Interfaces

Interface IF1 – Type	RS232
Interface IF1 – Design	9-pin DSUB connector
Interface IF1 – Maximum transfer rate	115.2 kBit/s

General information

Status indicators	Data transfer
Diagnostics – Data transfer	Yes, with status LEDs
Electrical isolation – PLC - IF1	No
Certification	CE, C-UL-US, GOST-R
Operating temperature	0°C to +50°C
Relative humidity	10 to 90%, non-condensing
Protection type	IP20
Temperature	-25°C to +70°C
Relative humidity	10 to 90%, non-condensing

Mechanical characteristics

Slot	PP45 insert

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file DXF/STEP 4PP045.IFxx-1ZIP · 3 MB · 1.0 (12/10/2008)
