B&R 4PP035.E300-36
Power Panel, 24 VDC, 153 x 120 mm, LCD display
- MPN
- 4PP035.E300-36
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 4PP035.E300-36?

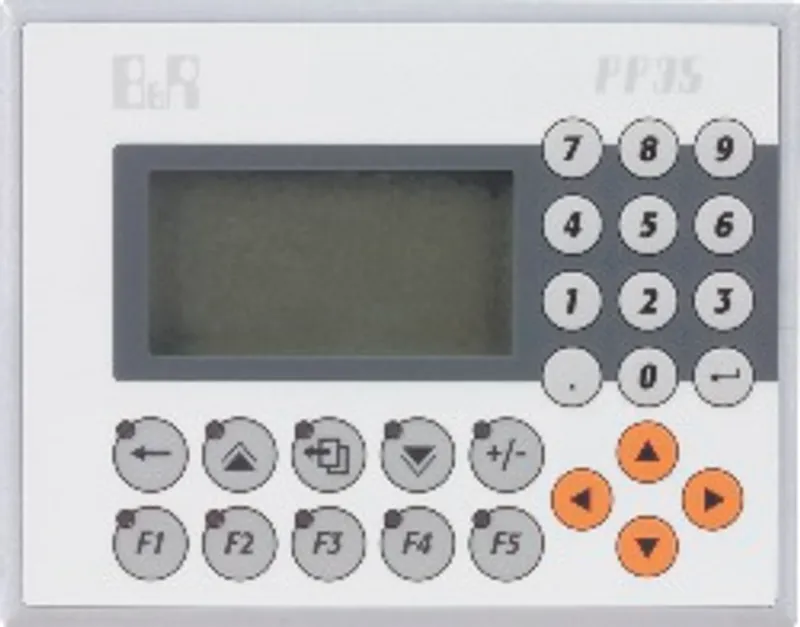

Power Panel, 24 VDC, 153 x 120 mm, LCD display, 160 x 80 pixels, 3 inch, backlight, 26 keys, 300 kB SRAM, 1024 kB FlashPROM, 1 RS232, 1 CAN interface network-capable, 8 digital inputs, 24 VDC, sink/source, 2 event counters or 1 incremental encoder or 2x gate/period measurement, 8 digital outputs, 24 VDC, 0.5 A source, 4 analog inputs, ±10 V, 12-bit, two of the analog inputs can be used as KTY10 or Pt1000 inputs, 4 analog outputs, ±10 V, 12-bit, IP65 protection (front), order 2x TB718, 1x TB103 terminal blocks separately!
Specifications
General information
| Diagnostics – I/O function | Yes, using LEDs |
| Diagnostics – Interface | Yes, using LEDs |
| Diagnostics – State | Yes, using LED status indicator |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Evaluation ongoing |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – CE | Yes |
| Status indicators | I/O function per channel, status |
Controller
| Standard memory – System PROM | 448 kB FlashPROM |
| Standard memory – User PROM | 1024 kB FlashPROM |
| Standard memory – User RAM | 300 kB SRAM |
| Data buffering | Lithium battery 3 V / 950 mAh |
| Real-time clock | Nonvolatile, resolution 1 s |
| Voltage monitoring | An NMI is triggered at a supply voltage of <15 VDC. |
| System bus for expansions | No |
| Typical instruction cycle time | 0.8 µs |
| Watchdog | Yes |
Display
| Backlight – Type | LED |
| Type | Monochrome LCD |
| Resolution | 160 x 80 pixels |
| Display character set | European/Cyrillic |
Interfaces
| Interface IF1 – Type | RS232 |
| Interface IF1 – Execution | 9-pin male DSUB connector |
| Interface IF1 – Electrical isolation | No |
| Interface IF1 – Max. baud rate | 115.2 kbit/s |
Digital inputs
| Input filter – Channel 1-3 | <10 µs |
| Input filter – Channel 4-8 | <1 ms |
| Input current at nominal voltage – Channel 1-3 | Approx. 10 mA |
| Input current at nominal voltage – Channel 4-8 | Approx. 5 mA |
| Electrical isolation – Group isolation | No |
| Electrical isolation – Channel - Bus | Yes |
| Electrical isolation – Channel - Channel | No |
| Additional functions – Channel 1-3 | Counters |
| Additional functions – Channel 4-8 | - |
| Quantity | 8 |
| Nominal voltage | 24 VDC |
| Input circuit | Sink or source |
Analog inputs
| Electrical isolation – Group isolation | No |
| Electrical isolation – Channel - Bus | Yes |
| Electrical isolation – Channel - Channel | No |
| Input filter – Hardware | Cutoff frequency 10 kHz / slope 60 dB |
| Input filter – Software | - |
| Quantity | 4 differential inputs, 2 of which can be configured individually as temperature inputs |
| Input | ±10 V |
| Digital converter resolution | 12-bit |
| Conversion time | 150 µs for all channels |
| Output format | INT |
| Input impedance in signal range | 20 MΩ |
| Input circuit | IEC 61131-2 |
Temperature measurement
| Input filter – Hardware | Cutoff frequency 10 kHz / slope 60 dB |
| Input filter – Software | - |
| Sensor – Note | Configurable per channel |
| Sensor – KTY10-6 | -50 to 125°C |
| Sensor – Pt1000 | -200 to 850°C |
| Electrical isolation – Group isolation | No |
| Electrical isolation – Channel - Bus | Yes |
| Electrical isolation – Channel - Channel | No |
| Quantity | Up to 2 (depends on the configuration) |
| Output format | INT |
| Digital converter resolution | 12-bit |
| Input | Resistance measurement in 2-wire method with constant current supply |
| Input circuit | IEC 61131-2 |
| Conversion time | 150 µs for all channels |
| Resistance measurement range | 0-4000 Ω |
Digital outputs
| Electrical isolation – Group isolation | No |
| Electrical isolation – Channel - Bus | No |
| Electrical isolation – Channel - Channel | No |
| Quantity | 8 |
| Nominal voltage | 24 VDC |
| Nominal output current | 0.5 A |
| Total nominal current | 4 A |
| Output circuit | Source |
| Output protection | Overload protection, short-circuit protection |
| Internal protective circuit | VDR |
Analog outputs
| Electrical isolation – Group isolation | No |
| Electrical isolation – Channel - Bus | Yes |
| Electrical isolation – Channel - Channel | No |
| Quantity | 4 |
| Output | ±10 V |
| Digital converter resolution | 12-bit |
| Conversion time | 150 µs for all channels |
| Switch on/off behavior | Internal enable relay for startup and errors |
| Output protection | Single-channel continuous short circuit protection |
| Basic accuracy | ±0.088% (note: At 25°C based on the current output value.) |
Keys
| Function keys | 10 with LED (yellow) |
| Soft keys | No |
| System keys | Numeric keys, cursor block |
| Label | 10 keys using slide-in labels |
Power supply unit
| Nominal voltage | 24 VDC |
| Power consumption | Max. 6 W |
Operating conditions
| Degree of protection per EN 60529 | IP65 (front) |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -20 to 60°C |
| Relative humidity – Operation | 10 to 90% |
| Relative humidity – Storage | 5 to 95% |
Mechanical properties
| Dimensions – Width | 153 mm |
| Dimensions – Height | 120 mm |
| Dimensions – Depth | 46.1 mm |
| Weight | 0.5 kg |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 4A0044.00-000 | Legend strips — 5 piece of DIN A4 legend strips 6 areas for all in all 30 devices with CorelDraw file. |
| 7TB718.91 | Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
| 7TB718.9 | Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
Optional accessories (2)
| 4A0006.00-000 | Batteries — Lithium battery, 3 V / 950 mAh, button cell |
| 0AC201.91 | Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell |
