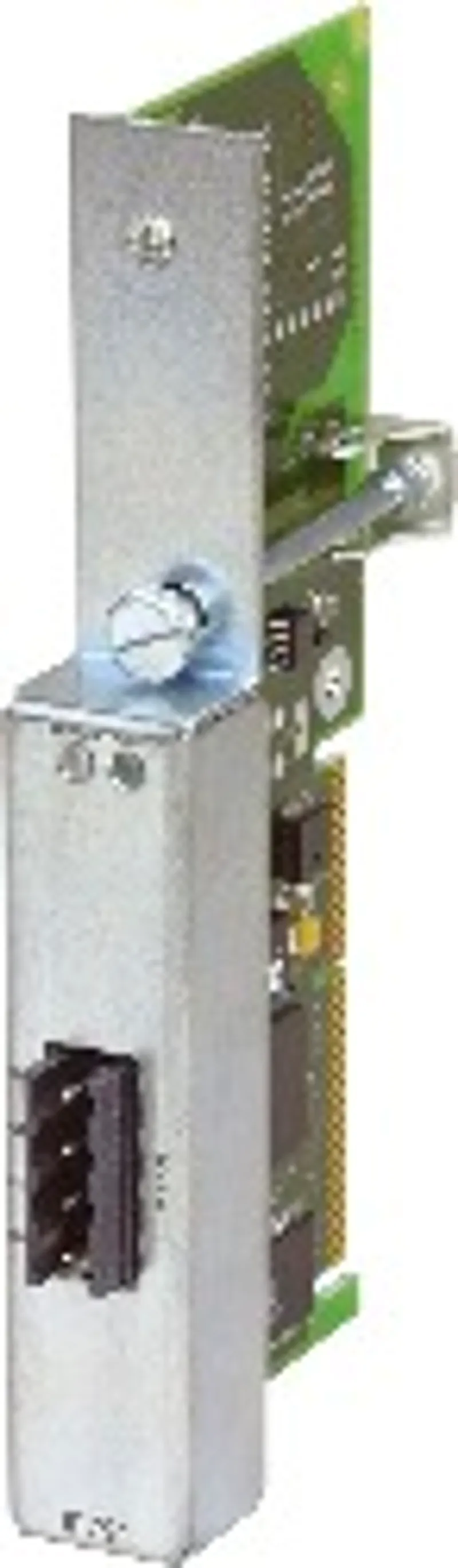

B&R 3IF791.9

Communication module, 1x X2X Link master

MPN: 3IF791.9

€147.34excl. VAT & shipping

In stock — 11 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3IF791.9?

X2X Link connection

aPCI interface module, 1 X2X Link master interface, electrically isolated, order 1x terminal block TB704 separately!

Specifications

Short description

Communication module

1x X2X Link master

General information

Diagnostics – Data transfer	Yes, using LED status indicator
Power consumption – 3.3 VDC	0.43 W
Power consumption – 5 VDC	0.76 W
Power consumption – Total	1.19 W
Electrical isolation – PLC - IF1	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – KC	Yes
Status indicators	Transmit data and status for IF1

Interfaces

Interface IF1 – Fieldbus	X2X Link master
Interface IF1 – Execution	4-pin male multipoint connector
Interface IF1 – Distance between 2 stations	Max. 100 m

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block TB704 separately.
Slot	Slot, e.g. in the CP360

Accessories

Required accessories (order separately)

0TB704.91	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB704.9	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 3IF791.9PDF · 408 KB · 1.0 (04/18/2005) - EN
