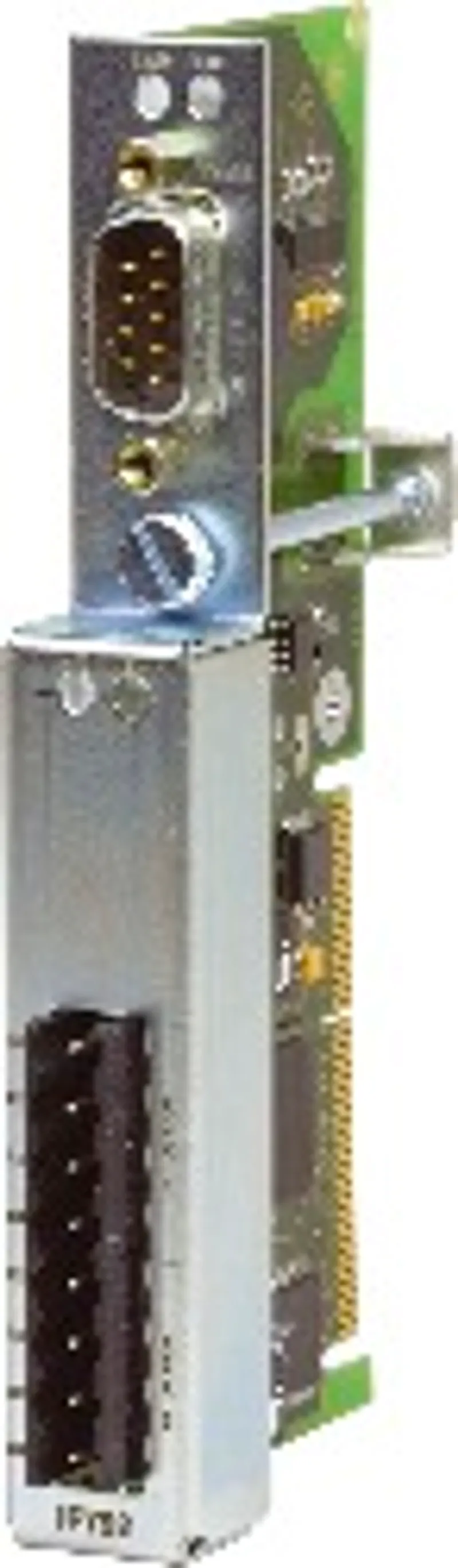

B&R 3IF792.9
Communication module, 1x RS232, 2x X2X Link master
- MPN
- 3IF792.9
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 3IF792.9?
Dual X2X Link connection
RS232 can be configured as an online interface
aPCI interface module, 2 X2X Link master interfaces, electrically isolated, 1 RS232 interface, order 2x 0TB704.9 terminal blocks separately!
Specifications
Short description
| Communication module | 1x RS232, 2x X2X Link master |
General information
| Diagnostics – Data transfer | Yes, using LED status indicators |
| Power consumption – 3.3 VDC | 0.5 W |
| Power consumption – 5 VDC | 1.35 W |
| Power consumption – Total | 1.85 W |
| Electrical isolation – IFx - IFx | Yes |
| Electrical isolation – PLC - IF1 | No |
| Electrical isolation – PLC - IF2 | Yes |
| Electrical isolation – PLC - IF3 | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – KC | Yes |
| Status indicators | 2 LEDs for transmitting/receiving data for IF1 ; 1 LED each for transmitting/receiving data for IF2 and IF3 |
Interfaces
| Interface IF1 – Signal | RS232 |
| Interface IF1 – Variant | 9-pin male DSUB connector |
| Interface IF1 – Max. distance | 900 m |
| Interface IF1 – Transfer rate | Max. 115.2 kbit/s |
| Interface IF2 – Fieldbus | X2X Link master |
| Interface IF2 – Variant | 4-pin male multipoint connector |
| Interface IF2 – Distance between 2 stations | Max. 100 m |
| Interface IF3 – Fieldbus | X2X Link master |
| Interface IF3 – Variant | 4-pin male multipoint connector |
| Interface IF3 – Distance between 2 stations | Max. 100 m |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 2x 0TB704.9 terminal blocks separately |
| Slot | Slot, e.g. in the CP360 |
Accessories
Required accessories (order separately)
| 0TB704.9 | Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses. |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
3IF792.9: frequently asked questions
When can 3IF792.9 be shipped?
3IF792.9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3IF792.9 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3IF792.9 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3IF792.9, subject to availability and destination.
