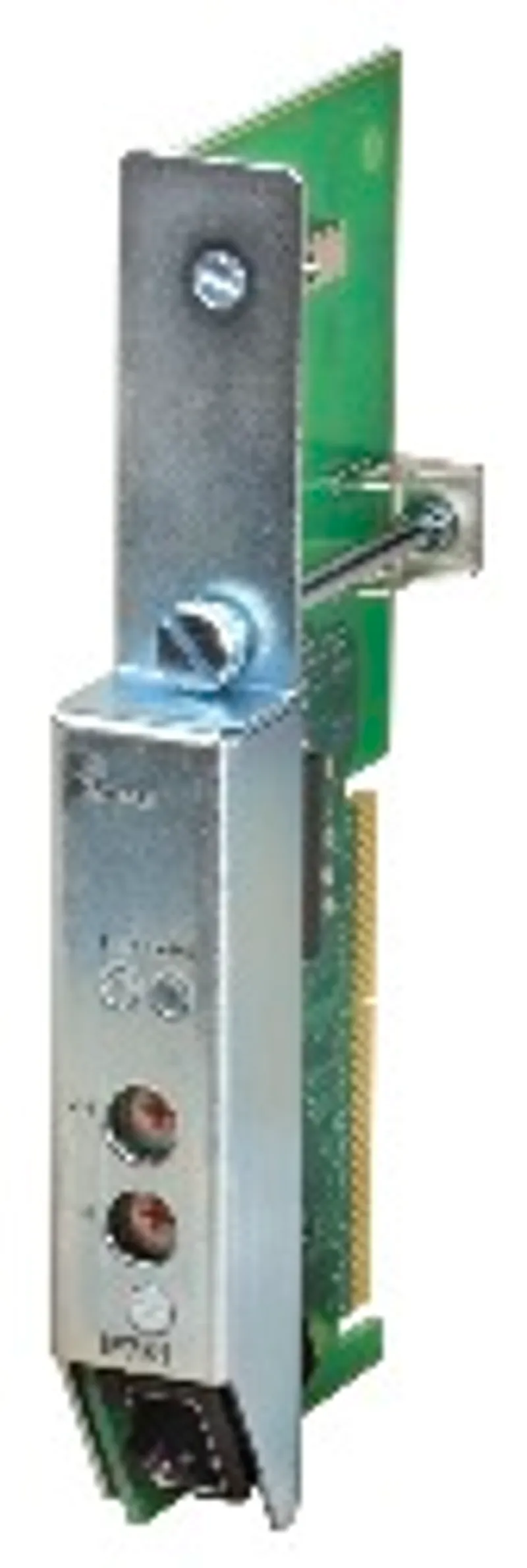

B&R 3IF781.9
Communication module, 1x Ethernet
- MPN
- 3IF781.9
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 3IF781.9?
Ethernet 10/100 MBit/s as single interface
aPCI interface module, 1 Ethernet interface 10/100BASE-T
Specifications
Short description
| Communication module | 1x Ethernet |
General information
| Diagnostics – Data transfer | Yes, using LED status indicator |
| Diagnostics – Transfer rate | Yes, using LED status indicator |
| Power consumption – 3.3 VDC | 0.66 W |
| Power consumption – 5 VDC | - |
| Power consumption – Total | 0.66 W |
| Electrical isolation – PLC - IF1 | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – KC | Yes |
| Status indicators | Transfer rate, transmit/receive data |
Interfaces
| Transfer – Physical layer | 10BASE-T/100BASE-TX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | Yes |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | No |
| Signal | Ethernet |
| Variant | 1x shielded RJ45 port |
| Line length | Max. 100 m between two stations (segment length) |
| Transfer rate | 10/100 Mbit/s |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
Mechanical properties
| Slot | Slot, e.g. in the CP360 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
3IF781.9: frequently asked questions
When can 3IF781.9 be shipped?
3IF781.9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3IF781.9 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3IF781.9 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3IF781.9, subject to availability and destination.
