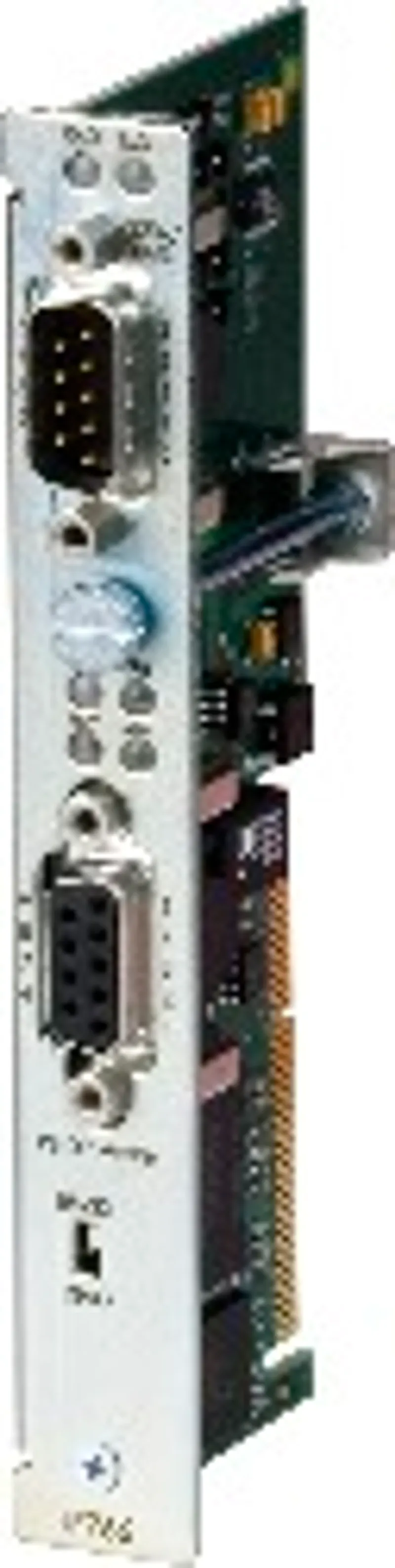

B&R 3IF766.9
Communication module, 1x RS232, 1x PROFIBUS DP V0/V1 master
- MPN
- 3IF766.9
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 3IF766.9?
Profibus DP master connection
RS232 can be used as an online interface
aPCI interface module, 1 PROFIBUS DP master interface, electrically isolated and network-capable, max. 12 Mbit/s, max. 3.5 kB input data and max. 3.5 kB output data, RS232 configuration interface
Specifications
Short description
| Communication module | 1x RS232, 1x PROFIBUS DP V0/V1 master |
General information
| Diagnostics – PROFIBUS DP bus function | Yes, using LED status indicators |
| Diagnostics – RS232 data transfer | Yes, using LED status indicators |
| Power consumption – 3.3 VDC | 0.8 W |
| Power consumption – 5 VDC | 0.5 W |
| Power consumption – Total | 1.3 W |
| Electrical isolation – IF1 - IF2 | Yes |
| Electrical isolation – PLC - IF1 | No |
| Electrical isolation – PLC - IF2 | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – KC | Yes |
| Status indicators | 2 LEDs for transmitting/receiving data for IF1 ; 4 LEDs for bus function for IF2 |
Interfaces
| Interface IF1 – Signal | RS232 |
| Interface IF1 – Variant | 9-pin male DSUB connector |
| Interface IF1 – Max. distance | 900 m |
| Interface IF1 – Transfer rate | Max. 115.2 kbit/s |
| Interface IF2 – Fieldbus | PROFIBUS DP V0/V1 master (note: The fieldbus is configured using the implemented configurator starting with Automation Studio 3.0. For older Automation Studio versions, the fieldbus configurator must be ordered separately.) |
| Interface IF2 – Variant | 9-pin female DSUB connector |
| Interface IF2 – Number of slaves | 125 |
| Interface IF2 – Max. distance | 1200 m |
| Interface IF2 – Transfer rate | Max. 12 Mbit/s |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
Mechanical properties
| Slot | Slot, e.g. in the CP360 |
Accessories
Required accessories (order separately)
| 1A0550.03 | Undefined — B&R Fieldbus Configurator V03 |
Optional accessories (2)
| 0G1000.00-090 | Infrastructure components — The RS485 bus connector is used to connect a controller to a Profibus network or an RS485 network. The terminating resistor is integrated i… |
| 0AC916.9 | Infrastructure components — Bus termination, RS485, active for PROFIBUS networks, remote I/O standard top-hat rail mounting supply voltage: 120 / 230 VAC |
