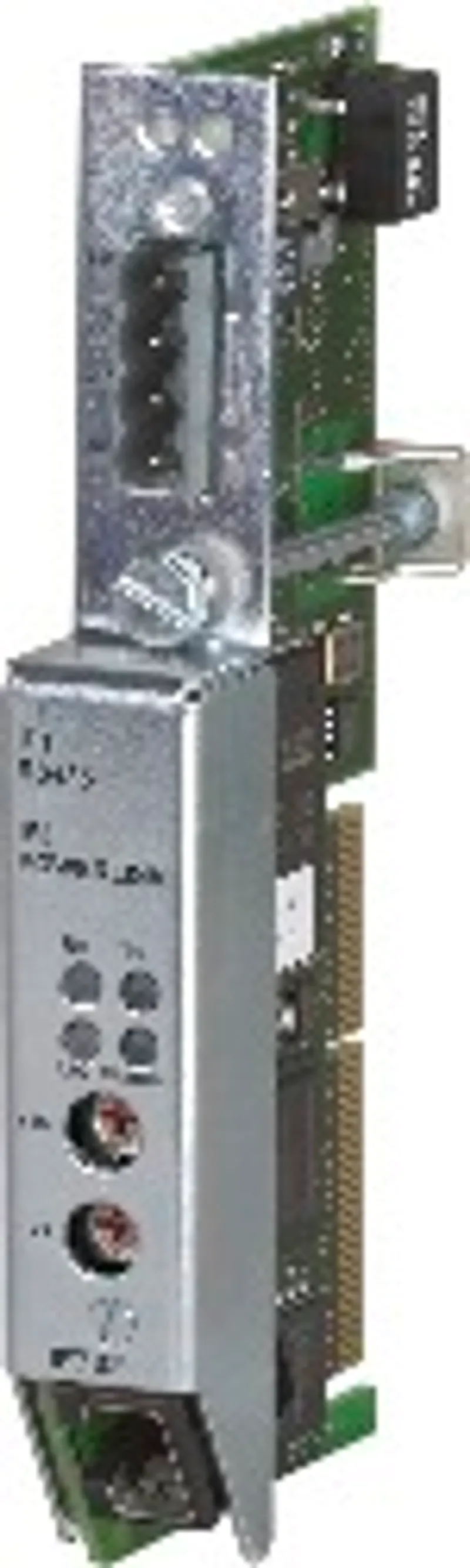

B&R 3IF782.9-1

Communication module, 1x RS485

MPN: 3IF782.9-1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3IF782.9-1?

POWERLINK for real-time Ethernet communication

RS485 on multipoint connector

aPCI interface module, 1 POWERLINK interface, managing or controlled node, 1 RS485 interface on terminal block, order 1x terminal block TB704 separately!

Specifications

Short description

Communication module

1x RS485, 1x POWERLINK (V1/V2) managing or controlled node

General information

Diagnostics – Bus function (IF2)	Yes, using LED status indicator and software
Diagnostics – Data transfer (IF1)	Yes, using LED status indicators
Diagnostics – Station status (IF2)	Yes, using LED status indicator and software
Power consumption – 3.3 VDC	2.5 W
Power consumption – 5 VDC	0.3 W
Power consumption – Total	2.8 W
Electrical isolation – IF1 - IF2	Yes
Electrical isolation – PLC - IFx	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – KC	Yes
Status indicators	Transmitting/Receiving data for IF1 ; Status of POWERLINK station, network activity, link/collision for IF2

Interfaces

Interface IF1 – Signal	RS485
Interface IF1 – Variant	4-pin male multipoint connector
Interface IF1 – Max. distance	1200 m
Interface IF1 – Transfer rate	Max. 115.2 kbit/s
Interface IF2 – Physical layer	100BASE-TX
Interface IF2 – Half-duplex	Yes
Interface IF2 – Full-duplex	No
Interface IF2 – Autonegotiation	Yes
Interface IF2 – Auto-MDI/MDIX	Yes
Interface IF2 – Fieldbus	POWERLINK (V1/V2) managing or controlled node
Interface IF2 – Type	Type 3General information, Hardware - IF/LS" in the POWERLINK help documentation."> (note: See)
Interface IF2 – Variant	1x shielded RJ45 port
Interface IF2 – Line length	Max. 100 m between two stations (segment length)
Interface IF2 – Transfer rate	100 Mbit/s

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block TB704 separately.
Slot	Slot, e.g. in the CP360

Accessories

Required accessories (order separately)

0TB704.91	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB704.9	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
