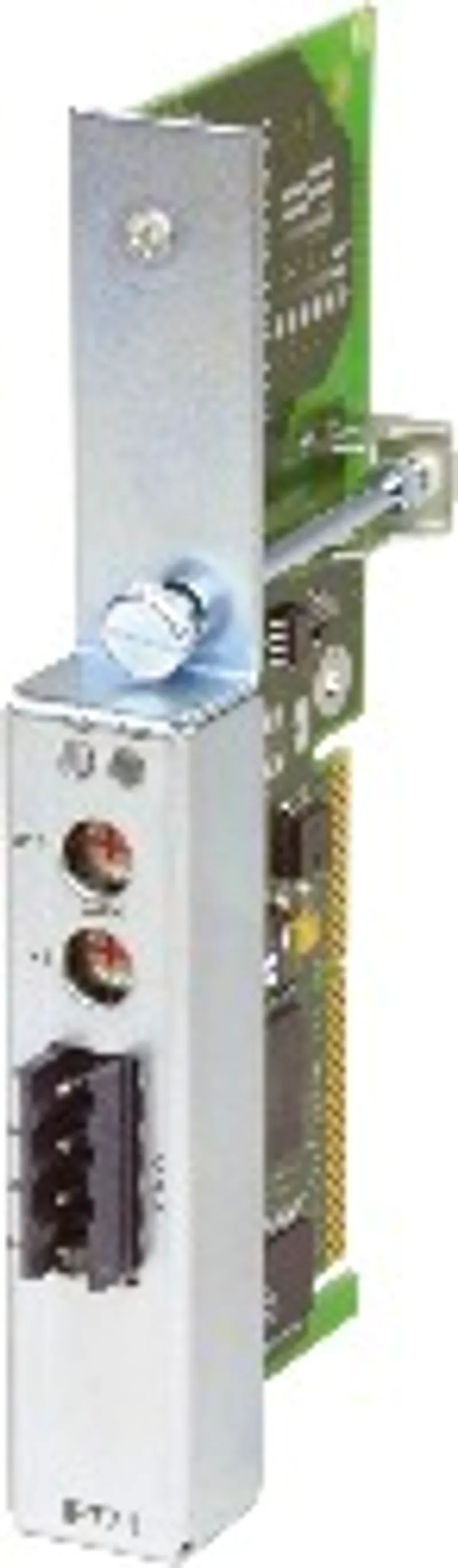

B&R 3IF771.9

Communication module, 1x CAN bus

MPN: 3IF771.9

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3IF771.9?

CAN bus connection as single interface

aPCI interface module, 1 CAN bus interface, max. 500 kbit/s, electrically isolated, network-capable, object buffer in the transmit and receive directions, order 1x terminal block TB704 separately!

Specifications

Short description

Communication module

1x CAN bus

General information

Diagnostics – Data transfer	Yes, using LED status indicators
Power consumption – 3.3 VDC	0.64 W
Power consumption – 5 VDC	0.66 W
Power consumption – Total	1.3 W
Electrical isolation – PLC - IF1	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD
Certifications – KC	Yes
Status indicators	Transmitting/Receiving data for IF1

Interfaces

Interface IF1 – Signal	CAN bus (note: This CAN bus interface can be configured as a CANopen master in Automation Studio 3.0 and later.)
Interface IF1 – Execution	4-pin male multipoint connector
Interface IF1 – Max. distance	1000 m
Interface IF1 – Transfer rate	Max. 500 kbit/s

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block TB704 separately.
Slot	Slot, e.g. in the CP360

Accessories

Required accessories (order separately)

0TB704.91	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB704.9	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.

Optional accessories (1)

0AC913.93

Infrastructure components — Bus adapter, CAN bus, 2 CAN bus interfaces, including 03 m attachment cable (TB704)

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 3IF771.9PDF · 665 KB · 1.0 (06/05/2008) - EN
