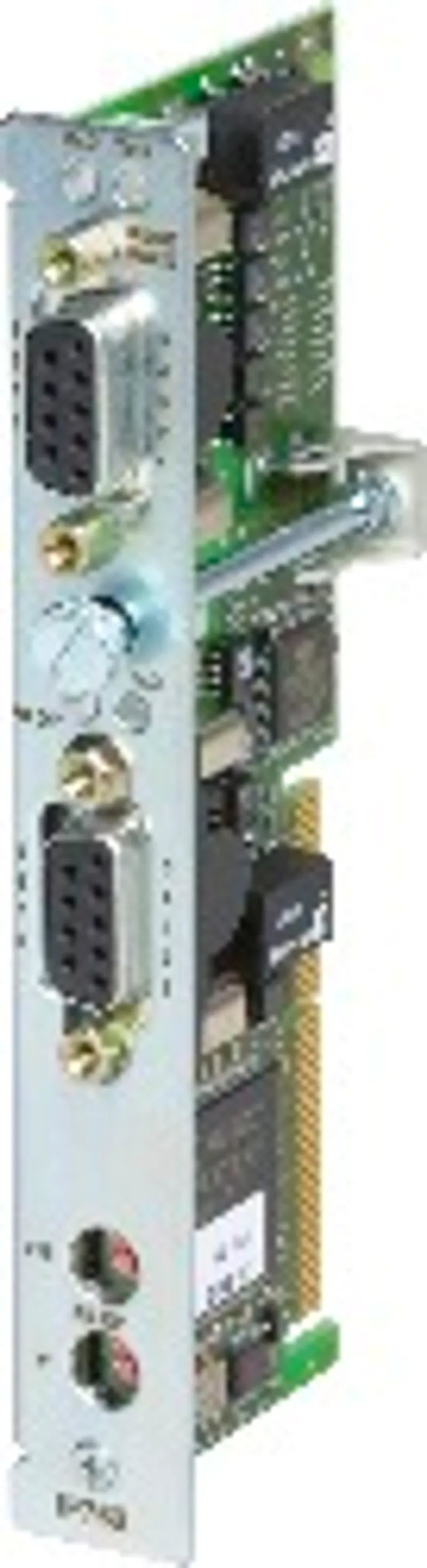

B&R 3IF762.9
Communication module, 1x RS485/RS422
- MPN
- 3IF762.9
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 3IF762.9?
Profibus DP slave connection
RS485/RS422 custom programming
aPCI interface module, 1 PROFIBUS DP interface, electrically isolated and network-capable, 1 RS422/485 interface, electrically isolated and network-capable
Specifications
Short description
| Communication module | 1x RS485/RS422, 1x PROFIBUS DP V0 slave |
General information
| Diagnostics – Data transfer | Yes, using LED status indicators |
| Power consumption – 3.3 VDC | 0.15 W |
| Power consumption – 5 VDC | 1.29 W |
| Power consumption – Total | 1.44 W |
| Electrical isolation – IF1 - IF2 | Yes |
| Electrical isolation – PLC - IFx | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD |
| Certifications – KC | Yes |
| Status indicators | Transmit/Receive data per interface |
Interfaces
| Interface IF1 – Signal | RS485/RS422 |
| Interface IF1 – Variant | 9-pin female DSUB connector |
| Interface IF1 – Max. distance | 1200 m |
| Interface IF1 – Transfer rate | Max. 115.2 kbit/s |
| Interface IF2 – Fieldbus | PROFIBUS DP V0 slave |
| Interface IF2 – Variant | 9-pin female DSUB connector |
| Interface IF2 – Max. distance | 1200 m |
| Interface IF2 – Transfer rate | Max. 12 Mbit/s |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
Mechanical properties
| Slot | Slot, e.g. in the CP360 |
Accessories
Optional accessories (2)
| 0G1000.00-090 | Infrastructure components — The RS485 bus connector is used to connect a controller to a Profibus network or an RS485 network. The terminating resistor is integrated i… |
| 0AC916.9 | Infrastructure components — Bus termination, RS485, active for PROFIBUS networks, remote I/O standard top-hat rail mounting supply voltage: 120 / 230 VAC |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
3IF762.9: frequently asked questions
When can 3IF762.9 be shipped?
3IF762.9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3IF762.9 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3IF762.9 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3IF762.9, subject to availability and destination.
