Bosch Rexroth R15617A018

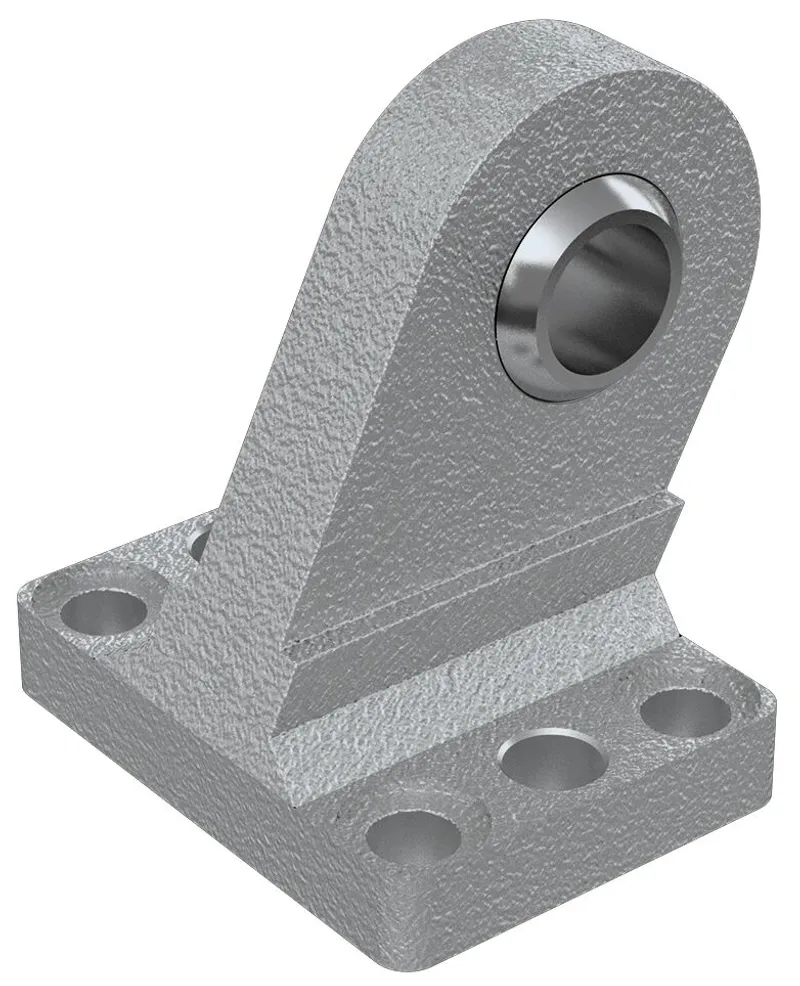

SPHERICAL PLAIN BEARING EMC100XC

MPN: R15617A018
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15617A018?

Group 6, option 03

Material: Galvanized cast iron with spheroidal graphite

Specifications

Fastening elements for electromechanical cylinders	Swivel bearing
Nominal size [mm]	100XC
Weight [kg]	5.81
Surface finishing	galvanized
Material of electromechanical cylinders	Cast iron with spheroidal graphite

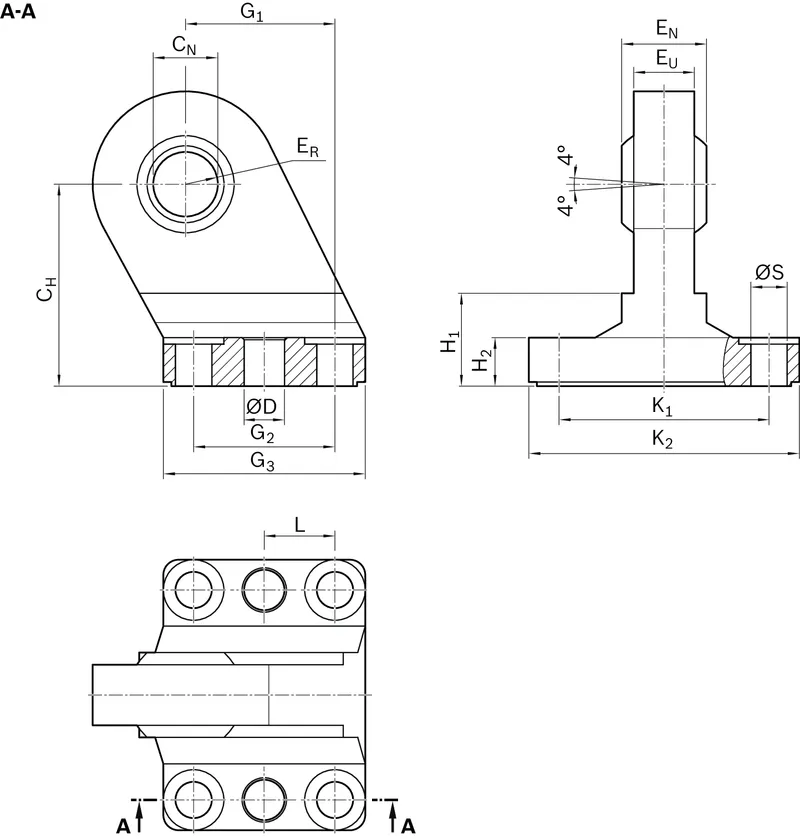

Dimension CH JS15 [mm]	115
Dimension CN H7 [mm]	35
Dimension D H11 [mm]	12
Dimension EN [mm]	43
Dimension EN tolerance [mm]	-1
Dimension ER max. [mm]	44
Dimension EU [mm]	28
Dimension G1 JS14 [mm]	97
Dimension G2 JS14 [mm]	88
Dimension G3 max. [mm]	126
Dimension H1 (profiled rail systems) [mm]	70
Dimension H2 (profiled rail systems) [mm]	17
Dimension H2 tolerance [mm]	±1.5
Dimension K1 JS14 [mm]	118
Dimension K2 max. [mm]	156
Dimension L [mm]	44
Dimension L tolerance [mm]	±0.2
Dimension S H13 [mm]	14
