Bosch Rexroth R15617B021

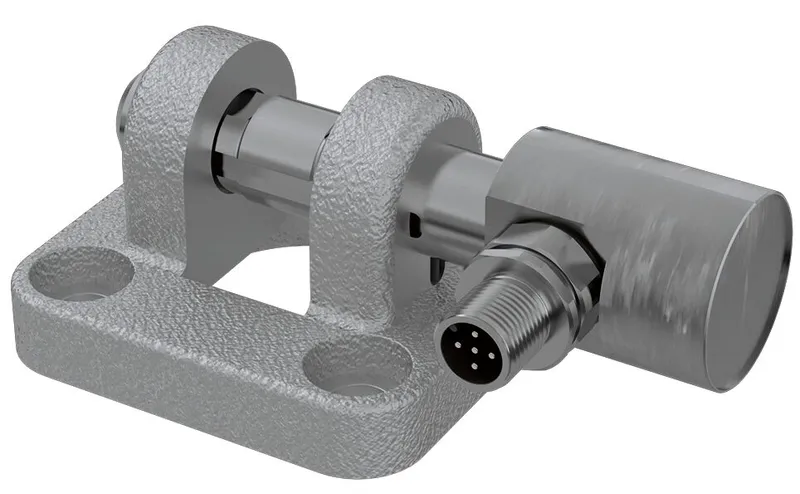

MEASURING ROD EMC100XC BG

MPN: R15617B021
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15617B021?

Group 1, option 02; group 5, option 10

Material: Aluminum/galvanized spheroidal graphite iron

Specifications

Fastening elements for electromechanical cylinders	Clevis mount
Nominal size [mm]	100XC
Weight [kg]	8.29
Surface finishing	galvanized
Pitch T guide rail [mm]	6
Material of electromechanical cylinders	Spheroidal graphite iron

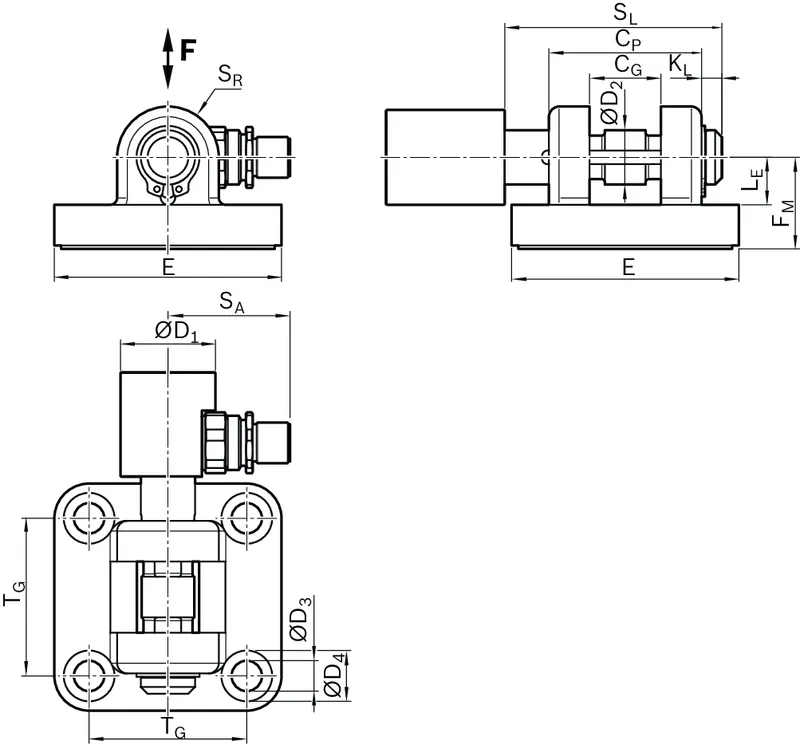

Dimension CG D10 [mm]	43
Dimension CP d12 [mm]	122
Dimension D1 [mm]	35
Dimension D2 f8 [mm]	35
Dimension D3 [mm]	18
Dimension D4 [mm]	26
Dimension E [mm]	180
Dimension FM [mm]	55
Dimension FM tolerance [mm]	±0.2
Dimension KL [mm]	10.5
Dimension LE min. [mm]	35
Dimension SA [mm]	35.5
Dimension SL [mm]	135; 135
Dimension SR [mm]	26
Dimension T [mm]	6
Dimension T tolerance [mm]	±0.2
Dimension Tg [mm]	140
Dimension TG [mm]	140
Dimension TG tolerance [mm]	±0.2
Dimension hex socket head cap screws DIN 912	M16x50 mm
Dimension hex socket head cap screw DIN 912 thread diameter	M16
Hex socket head cap screw DIN 912 screw Dimension, length [mm]	50
