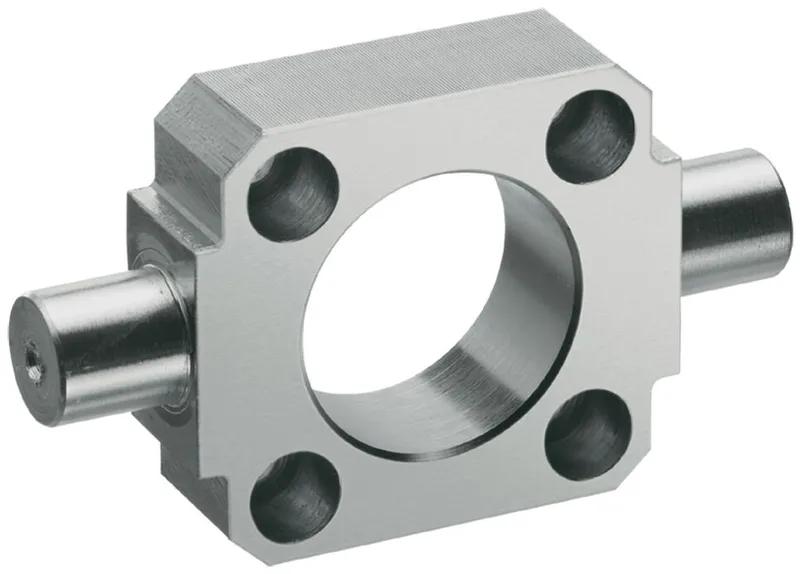

Bosch Rexroth R15617A001
TRUNNION EMC100XC
- MPN
- R15617A001
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R15617A001?
Group 3, option 01
included in group 3, option 03
Material: Galvanized cast iron with spheroidal graphite
Specifications
Specifications
| Fastening elements for electromechanical cylinders | Trunnion |
| Nominal size [mm] | 100XC |
| Weight [kg] | 2.68 |
| Surface finishing | galvanized |
| Material of electromechanical cylinders | Cast iron with spheroidal graphite |

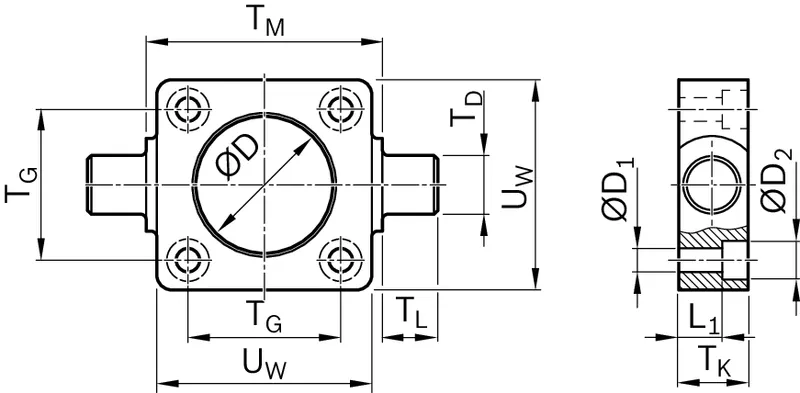

| Dimension D H11 [mm] | 75 |
| Dimension D1 [mm] | 13.5 |
| Dimension D2 [mm] | 20 |
| Dimension L1 [mm] | 25.5 |
| Dimension TD e9 [mm] | 25 |
| Dimension Tg [mm] | 89 |
| Dimension TG [mm] | 89 |
| Dimension TG tolerance [mm] | ±0.2 |
| Dimension Tk [mm] | 38 |
| Dimension TL h14 [mm] | 25 |
| Dimension TM h14 [mm] | 132 |
| Dimension UW [mm] | 120 |
