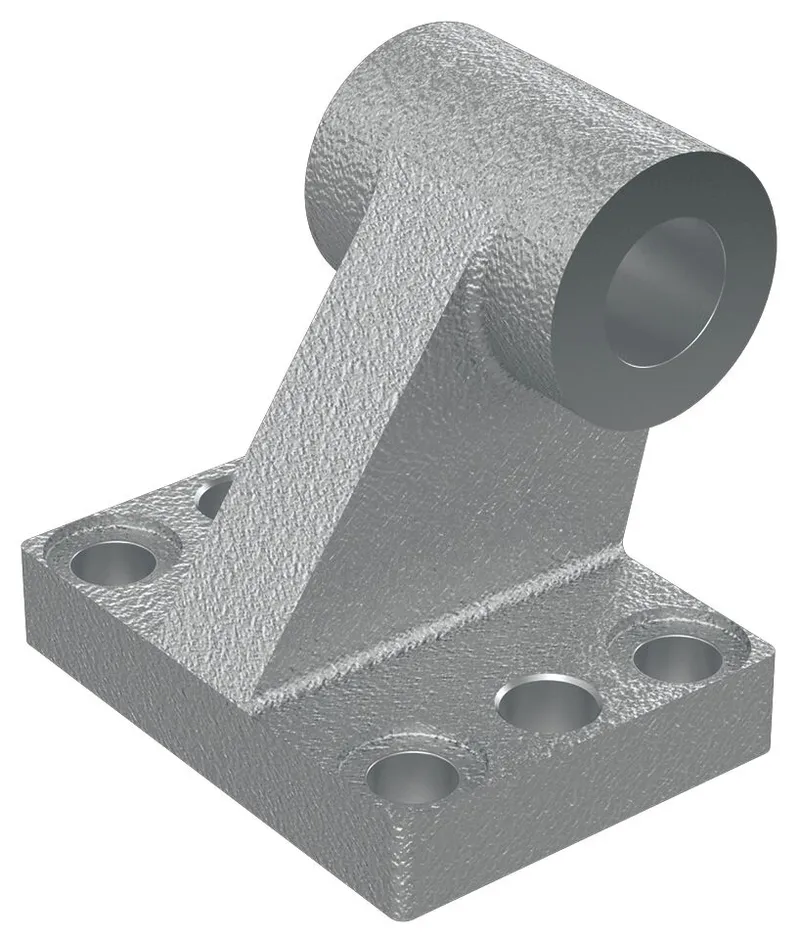

BEARING PEDESTAL EMC100XC

Name: BEARING PEDESTAL EMC100XC
Brand: Bosch Rexroth
SKU: R15617A017

MPN: R15617A017 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Fastening elements for electromechanical cylinders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R15617A017 be shipped?

R15617A017 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R15617A017 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R15617A017 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R15617A017, subject to availability and destination.

Group 6, option 01 Material: Galvanized cast iron with spheroidal graphite Counterpart to clevis mount group 5, option 07

Specifications

Fastening elements for electromechanical cylinders	Bearing block
Nominal size [mm]	100XC
Weight [kg]	2.1
Surface finishing	galvanized
Pitch T guide rail [mm]	17
Material of electromechanical cylinders	Cast iron with spheroidal graphite

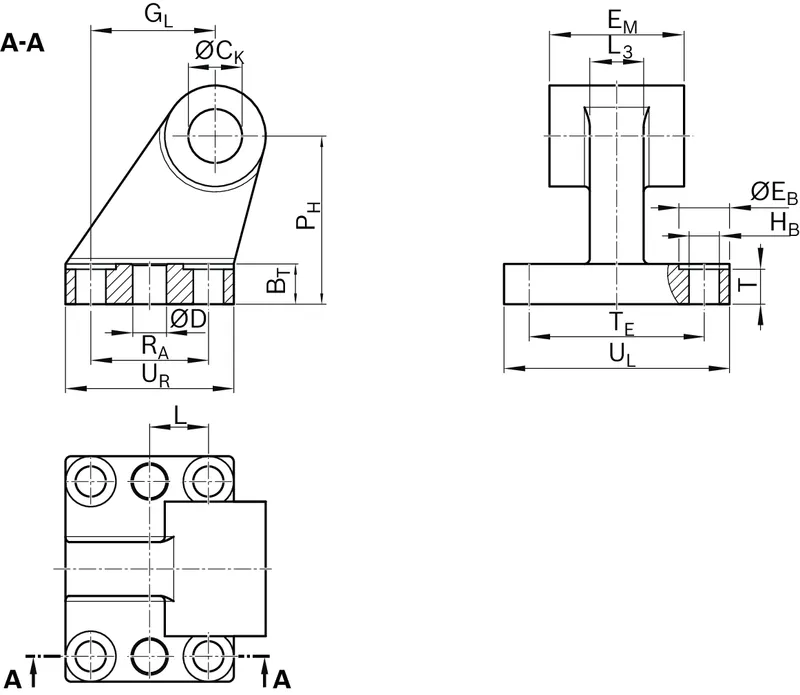

Dimension BR [mm]	31.5
Dimension BT [mm]	25
Dimension CK H9 [mm]	25
Dimension D H11 [mm]	12
Dimension EB H13 [mm]	26
Dimension EM [mm]	90
Dimension GL [mm]	97
Dimension HB H13 [mm]	14
Dimension L [mm]	44
Dimension L tolerance [mm]	±0.2
Dimension L3 [mm]	36
Dimension PH JS15 [mm]	115
Dimension RA JS14 [mm]	88
Dimension T [mm]	17
Dimension TE JS14 [mm]	118
Dimension TL tolerance [mm]	-0.2; -0.6
Dimension UL [mm]	156
Dimension UR [mm]	126
