Bosch Rexroth R15617B026

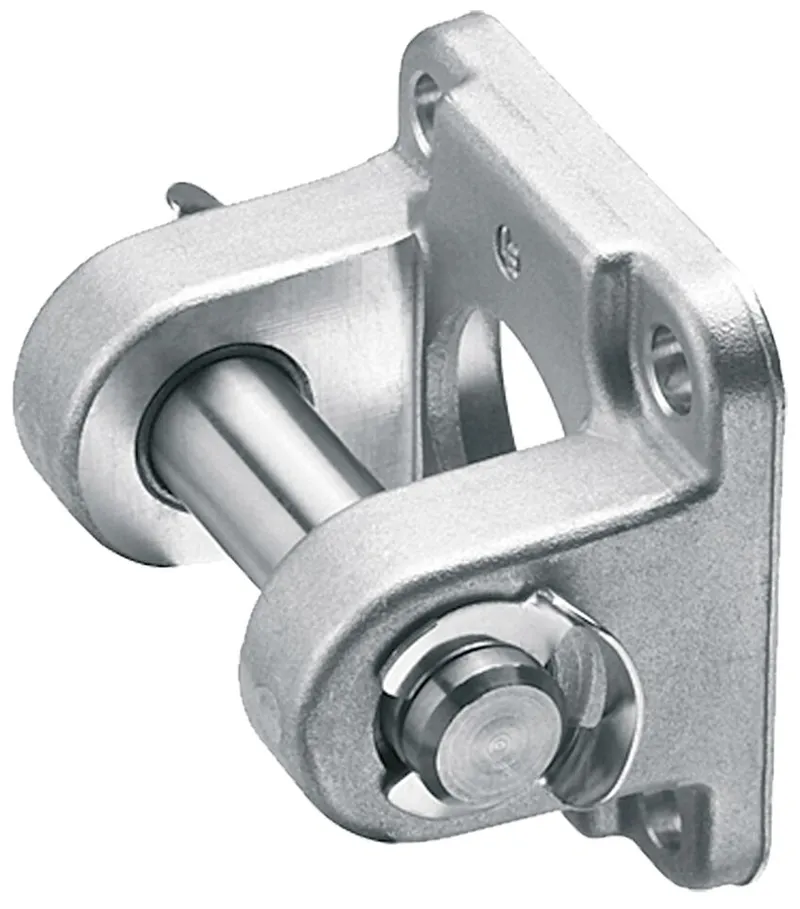

CAP DETACHABLE CLEVIS EMC100XC

MPN: R15617B026
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15617B026?

Group 5, option 07

Material: Aluminum/galvanized cast iron with spheroidal graphite

Specifications

Fastening elements for electromechanical cylinders	Clevis mount
Nominal size [mm]	100XC
Weight [kg]	6.88
Footnote max. dynamic load	Fmax EMC
Surface finishing	galvanized
Material of electromechanical cylinders	Cast iron with spheroidal graphite

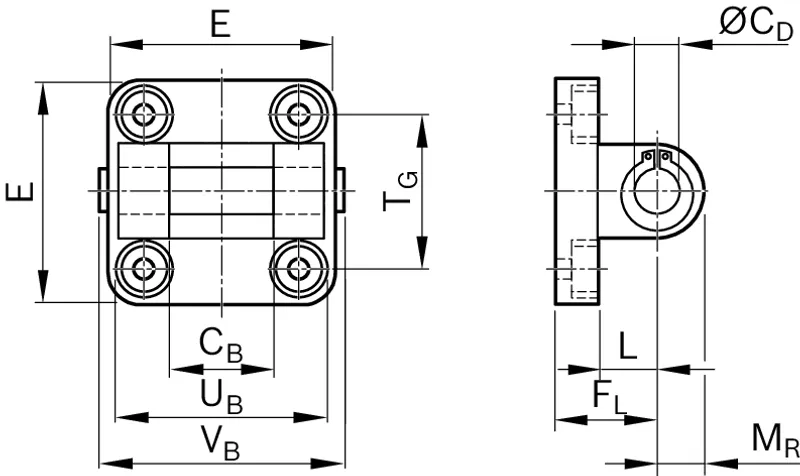

Dimension CB H14 [mm]	90
Dimension CD H9 [mm]	30
Dimension E max. [mm]	177
Dimension FL [mm]	55
Dimension FL tolerance [mm]	±0.2
Dimension L min. [mm]	35
Dimension MR [mm]	31
Dimension Tg [mm]	140
Dimension TG [mm]	140
Dimension TG tolerance [mm]	±0.2
Dimension UB h14 [mm]	170
Dimension VB [mm]	180.5
