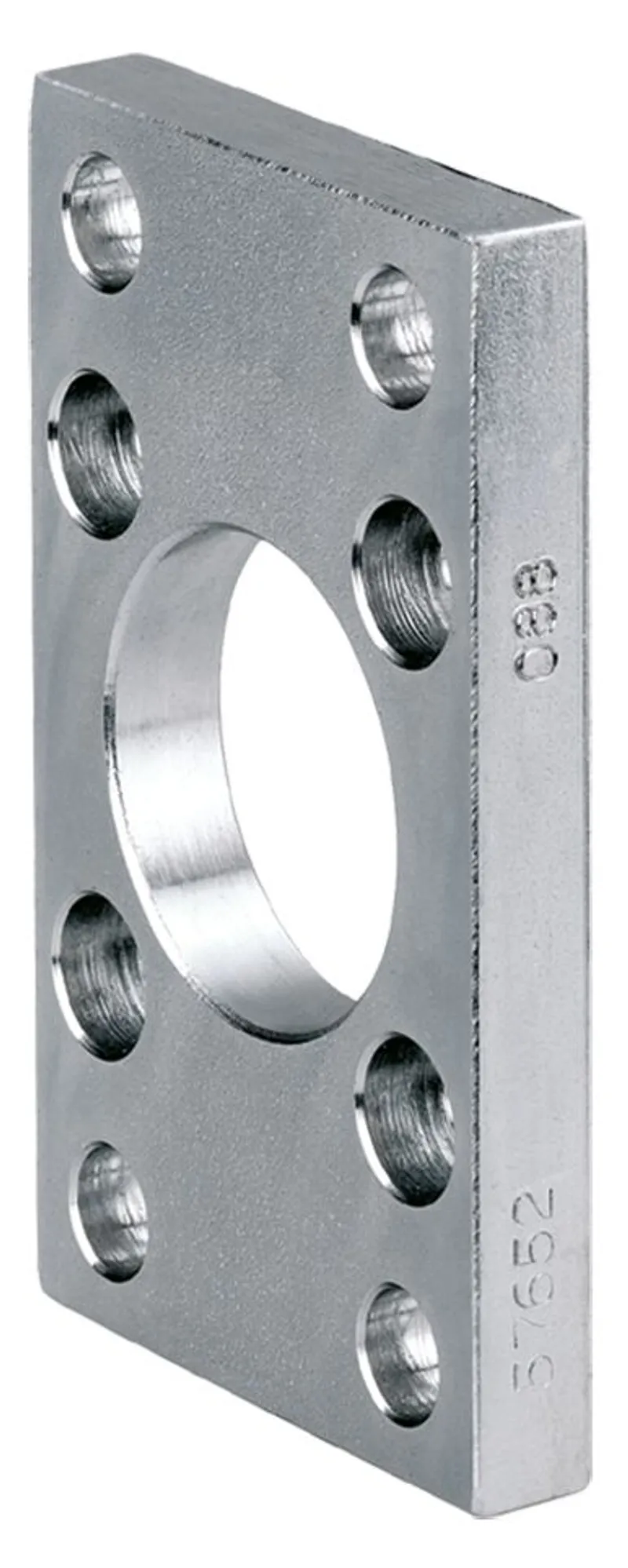

Bosch Rexroth R15617A002
FLANGE MOUNTING EMC100XC
- MPN
- R15617A002
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R15617A002?
Group 3, option 04
Material: Galvanized steel

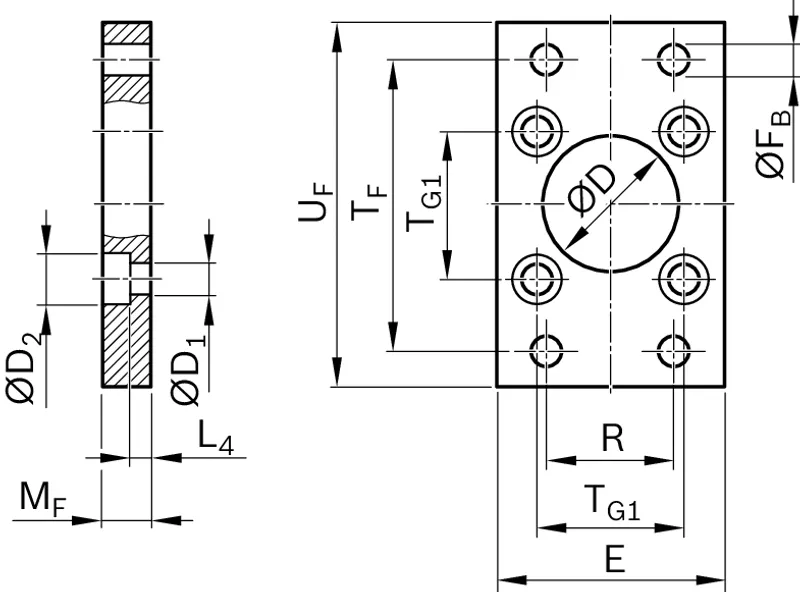

Specifications
Specifications
| Fastening elements for electromechanical cylinders | Flange fastening |
| Nominal size [mm] | 100XC |
| Weight [kg] | 3.02 |
| Material | Galvanized steel |
| Surface finishing | galvanized |
| Material of electromechanical cylinders | Steel |
| Dimension D H11 [mm] | 75 |
| Dimension D1 H13 [mm] | 13.5 |
| Dimension D2 H13 [mm] | 20 |
| Dimension E max. [mm] | 120 |
| Dimension FB [mm] | 17.5 |
| Dimension L4 [mm] | 12.6 |
| Dimension MF [mm] | 24 |
| Dimension MF tolerance [mm] | ±0.1 |
| Dimension R [mm] | 75 |
| Dimension R tolerance [mm] | ±0.2 |
| Dimension TF [mm] | 150 |
| Dimension TF tolerance [mm] | ±0.2 |
| Dimension TG1 [mm] | 89 |
| Dimension TG1 tolerance [mm] | ±0.2 |
| Dimension UF [mm] | 186 |
| Dimension UF tolerance [mm] | ±0.2 |
