BELT SECTION BS 1/M

Name: BELT SECTION BS 1/M
Brand: Bosch Rexroth
SKU: 3842999900

MPN: 3842999900 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Belt sections TS 1
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842999900 be shipped?

3842999900 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842999900 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842999900 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842999900, subject to availability and destination.

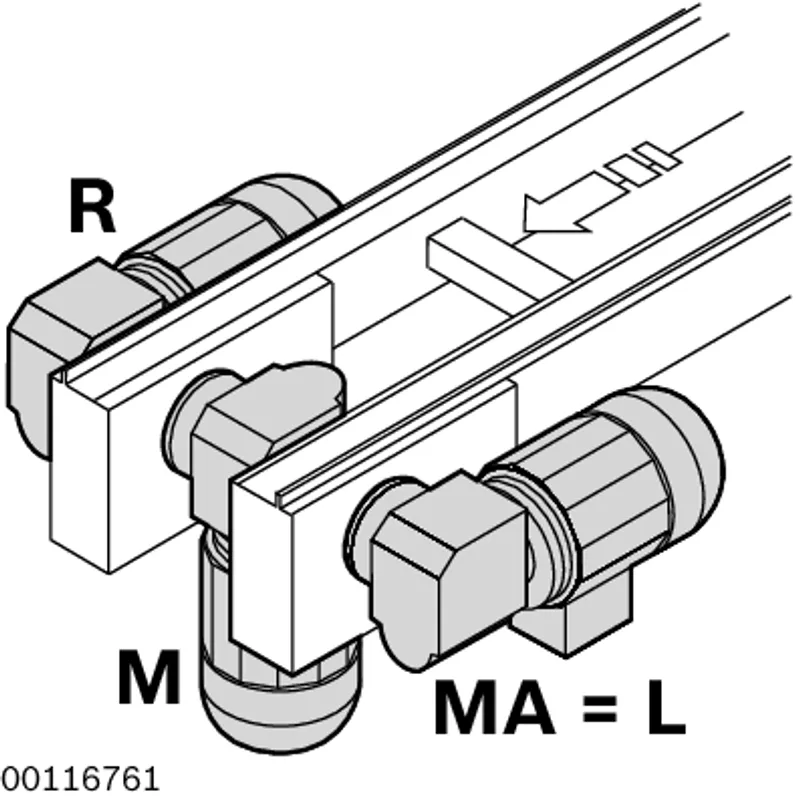

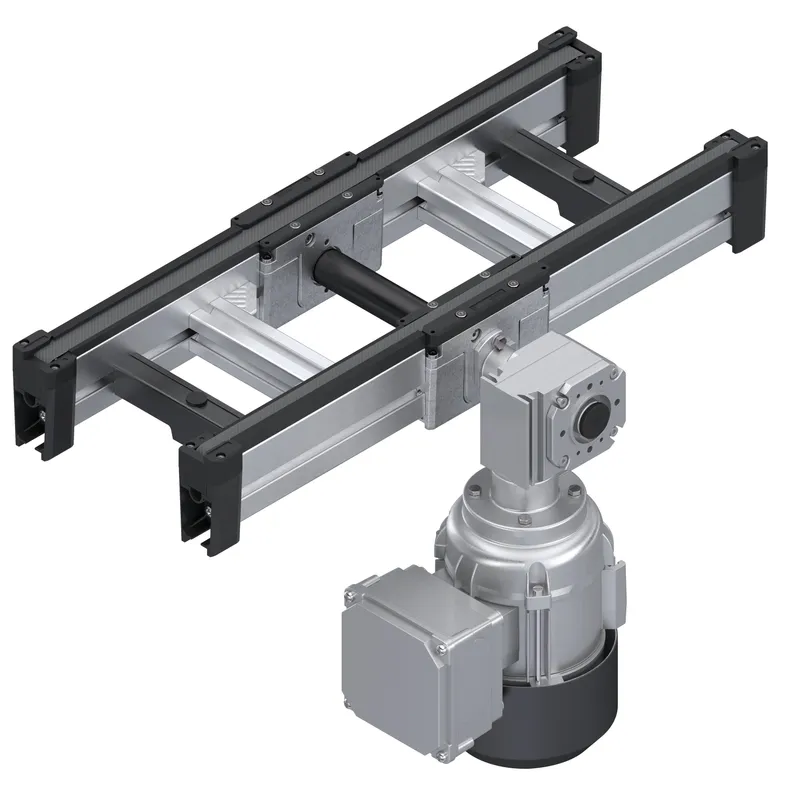

Longitudinal conveying of workpiece pallet on conveyor sections of up to 5000 mm. The central motor mounting allows close assembly of components to the section end. Position of the drive freely selectable Ready for operation conveyor section with own drive. Motor mounting right (MA = R), left (MA = L), with track width b = 160 mm also central (MA = M) Section loads up to 30 kg in accumulation operation Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K) Special models on request

Specifications

ESD	Yes

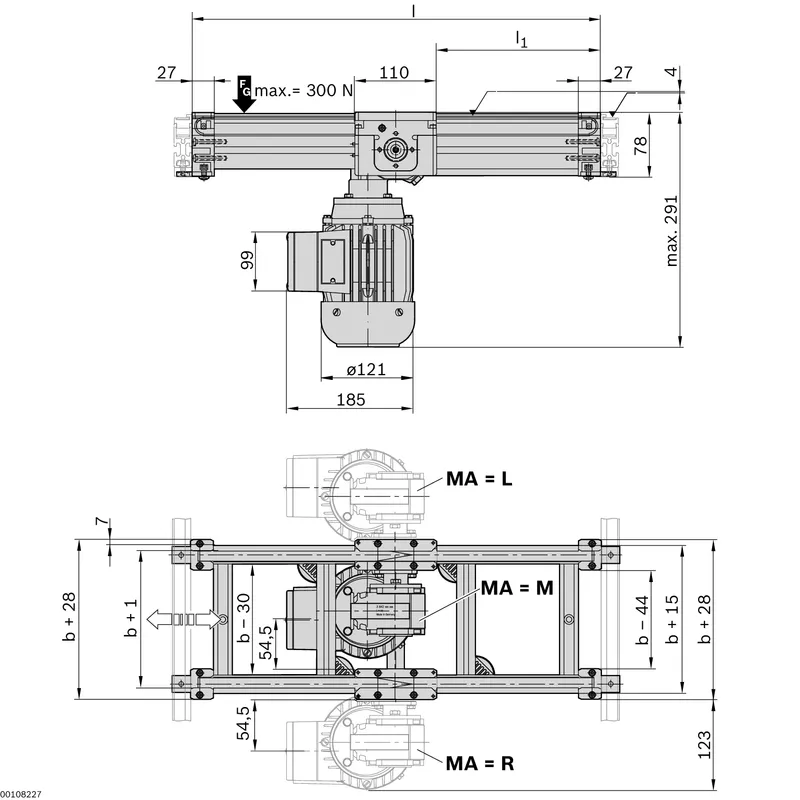

Length max [l max] [mm]	5000
Length min [L min] [mm]	350
Length [L1]	120...4800 mm für b < 90 mm; 90...4800 mm für b ≥ 90 mm
Dry room [%rF]	<1
Track width in direction of transport [b max] [mm]	720
Track width in direction of transport [b min] [mm]	80
Section load in accumulation operation [kg]	30
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min

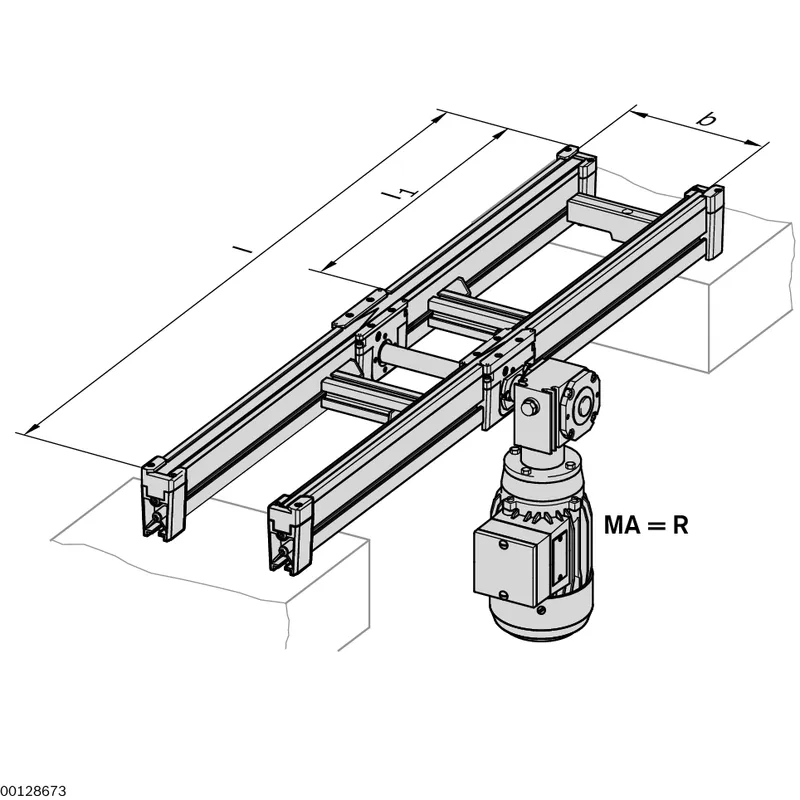

Length [l]	300...5000 mm for b ≥ 90 mm
Delivery information	Assembled. Motor included separately.
Preferred values [mm]	120; 160; 80
Clean room classification	ISO class 7
Recommended accessories	Connection kit; Leg set SZ 1
Weight [kg]	0
