Home / Bosch Rexroth / Curve KU 1 / Bosch Rexroth 3842999987

Bosch Rexroth

Bosch Rexroth 3842999987

CURVE KU 1/180

MPN: 3842999987
Category: Curve KU 1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999987?

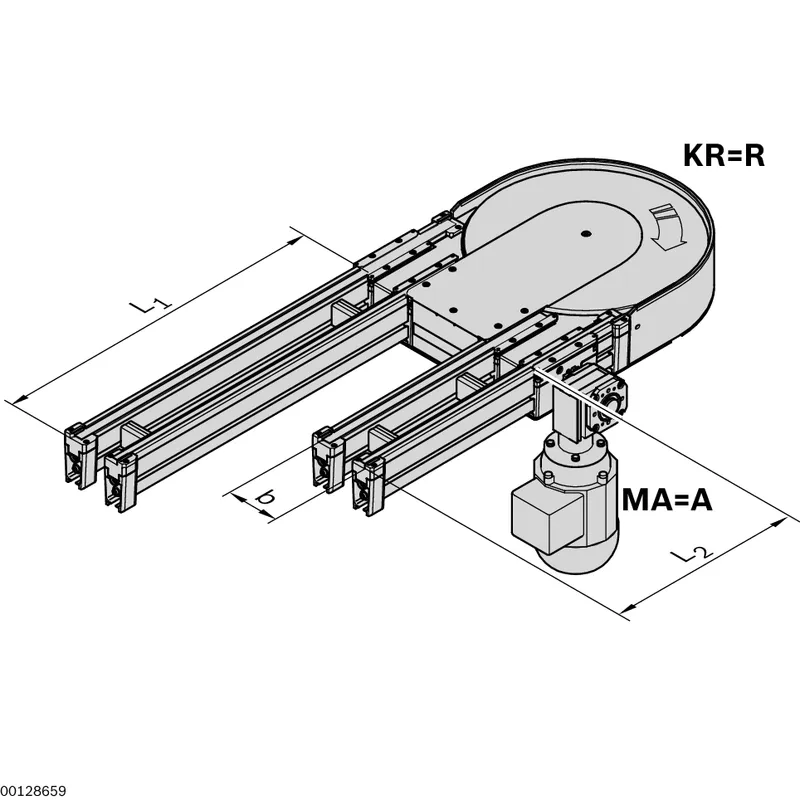

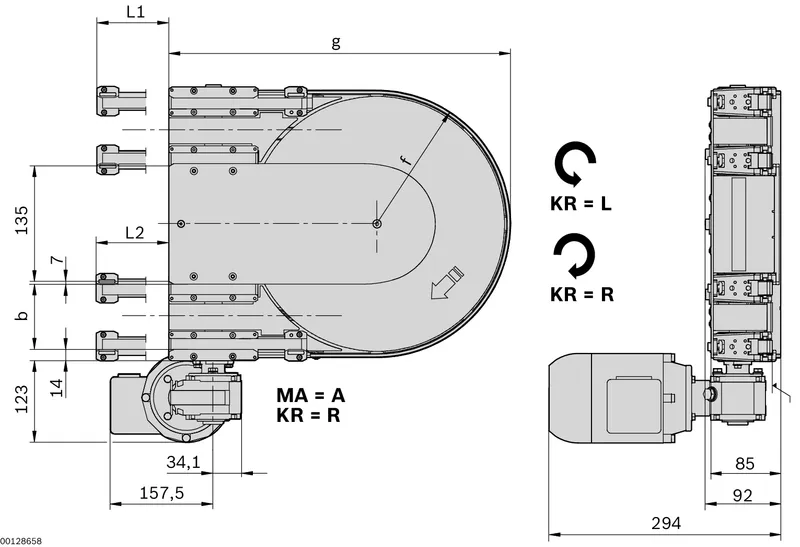

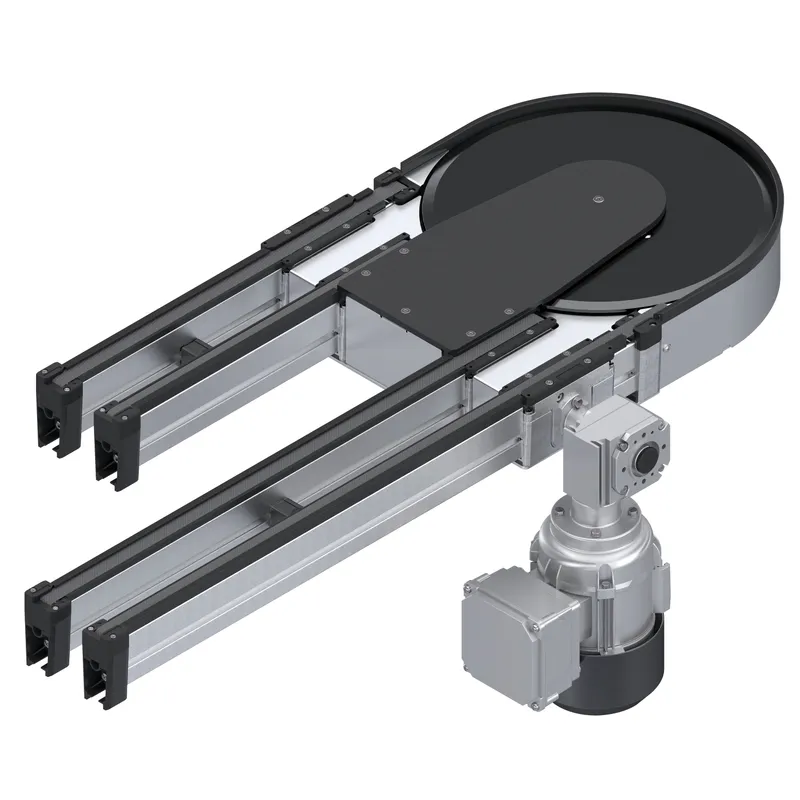

Curve KU 1/180 with built-in drive for 180° curve conveying of a workpiece pallet. Due to its accumulation capability, the KU 1/180 can be operated without any need for elaborate controls. It is also suitable for use in ESD applications. Reversible operation is not possible. At the end of operation (e.g. end of shift), all WTs must have left the curve.

Belt distance a = 135 mm

Integrated shared drive for the turntable and the mounted belt sections in the infeed and outfeed section

Section load up to 30 kg

Conveyor medium: Turntable, suitable for use in an EPA

Length of the infeed and outfeed section freely selectable, lmax = 5000 mm

Curve direction right (KR = R) or left (KR = L)

Motor mounting external (MA = A)

Specifications

ESD	Yes
Dry room [%rF]	<1
Section load in accumulation operation [kg]	30
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Track width in direction of transport [b] [mm]	120; 160; 80
Scope of delivery	Curve module complete with drive; Infeed section (with L1 > 150 mm); Outfeed section (with L2 > 150 mm)
Delivery information	Partially assembled
Clean room classification	ISO class 7
Recommended accessories	Accumulation pressure regulation; Connection kit for mounting on AS 1 or UM 1; Connection kit for mounting on BS 1; Leg sets SZ 1/...
Weight [kg]	0
