Bosch Rexroth 3842999903

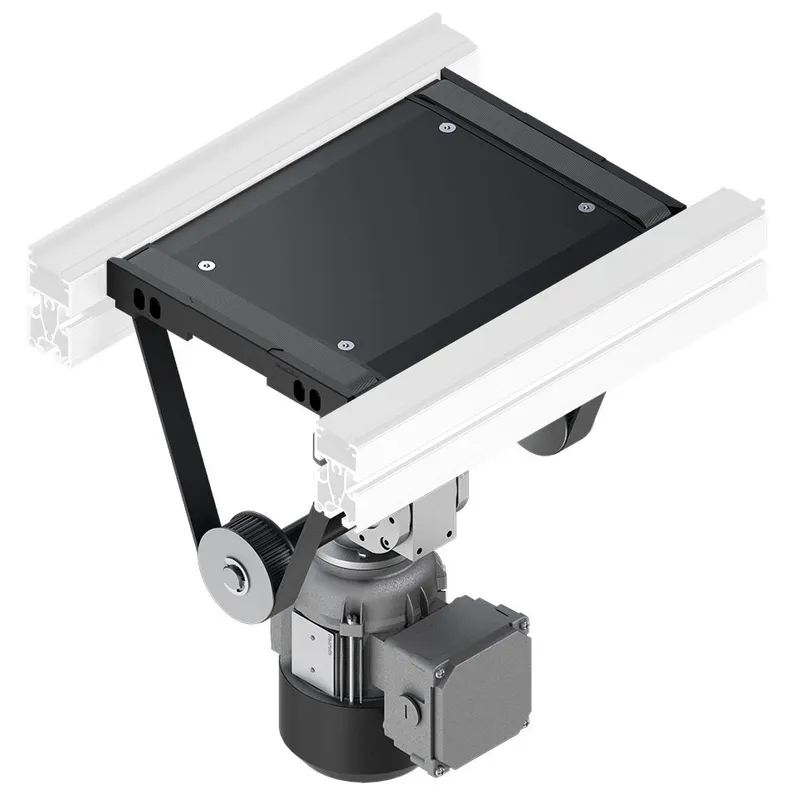

LIFT TRANSFER UNIT HQ 2/U

MPN: 3842999903
Category: Lift transverse units TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999903?

Lift Transverse Unit HQ 2/U

Lift transverse unit for feeding out of a from longitudinal section into a transverse section and vice versa

Use in tight spaces by means of suspended drive motor (outside dimensions must be no wider than the section)

Drive by toothed belt coupling is not possible because of the compact design

Conveyor medium: Toothed belt (suitable for use in an EPA)

Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2/E, WT 2, WT 2/F and WT 2/LS (only with version LS)

Reversible operation possible

Specifications

ESD	Yes
Combination options bQ x bL	160 x 160; 240; 320; 240 x 160; 240; 320; 400; 320 x 160; 240; 320; 400; 400 x 240; 320; 400; 480 x 320
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	30
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Assembly kit for electrical position inquiry; Incl. fastening material; Pneumatic equipment for two or three positions; Protective housing
Delivery information	Fully assembled; Kit for electrical position inquiry included
Notice	Pneumatic equipment PN = 2: Upper and middle lift position; Pneumatic equipment PN = 3: Upper, middle and lower lift position
Preferred values [mm]	160; 240; 320; 400; 480
Conveyor medium	Toothed belt (suitable for use in an EPA)
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Required accessories	1x M12x1 sensor with rated sensing range S for each position inquiry<sub>N</sub> = 4 mm
Recommended accessories	Damper DA 2/60 for the outfeeding of workpiece pallets at v<sub>N</sub> > 9 m/min; Rocker WI 2/…, WI/M and dampers DA 2/60, DA 2/100-C for BG 2 for the infeeding of workpiece pallets
Weight [kg]	0
