Bosch Rexroth 3842999899
BELT SECTION BS 1/T
- MPN
- 3842999899
- Category
- Belt sections TS 1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842999899?

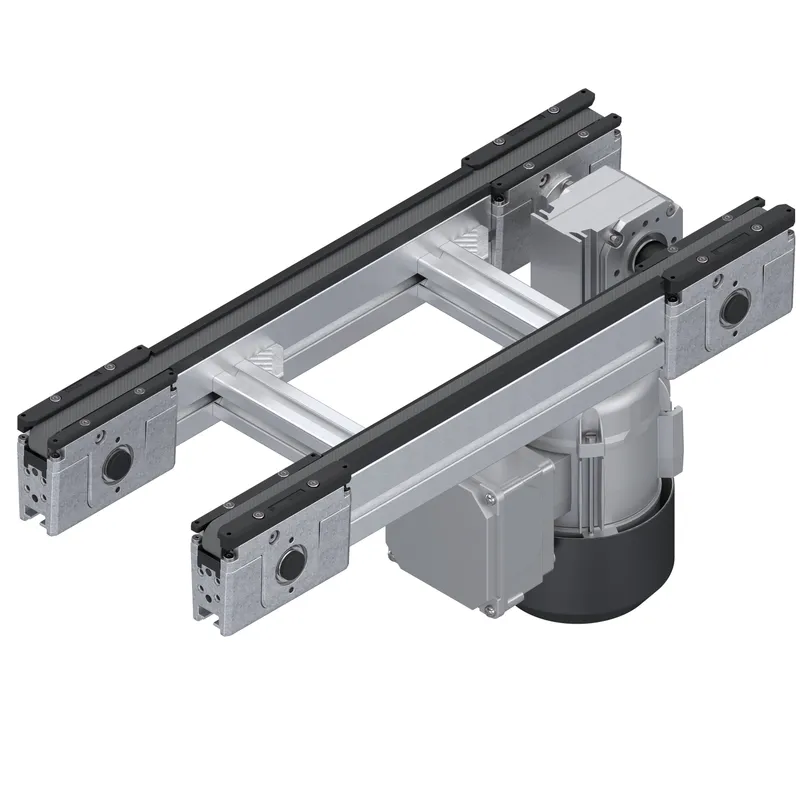

Belt Section BS 1/T

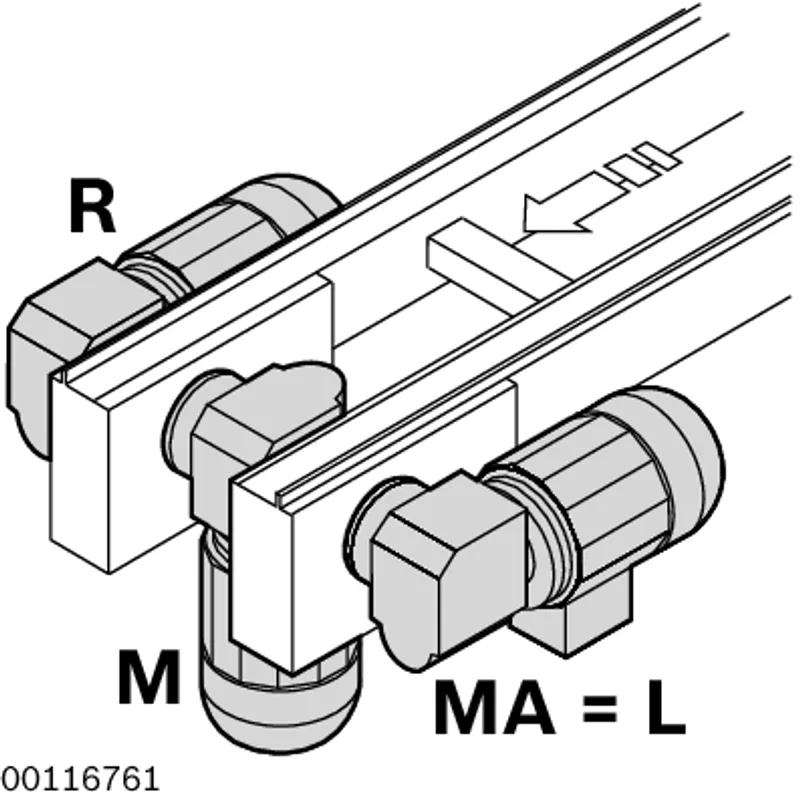

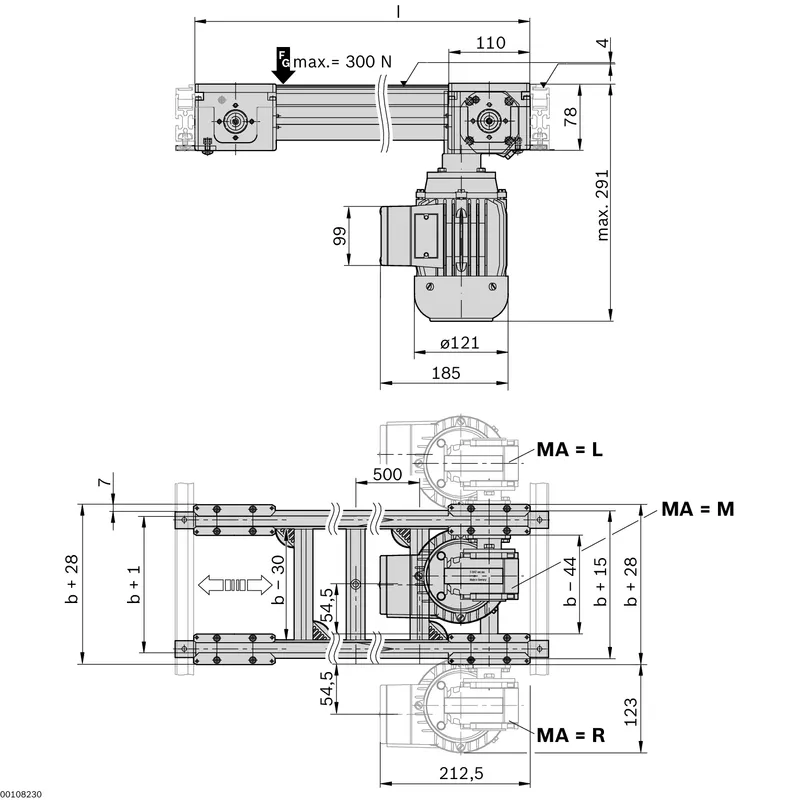

Ready for operation conveyor section with own drive. Motor mounting right (MA = R), left (MA = L), with track width b = 160 mm also central (MA = M)
Section loads up to 30 kg in accumulation operation
Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA
On the return unit, a curve KE 1/O-90 or KE 1/O-180 can be driven via an attachment kit (attachment kit included in the KE 1/O scope of delivery)
Depending on the length, the BS 1/T is delivered with two, three or four cross connectors
Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
Longitudinal transport of the workpiece pallet with segmented conveyor sections of up to 5000 mm
Drive of curves KE 1/O-90 or KE 1/O-180 possible via the return unit side
Special models on request
Specifications
Specifications
| ESD | Yes |
| Length max [l max] [mm] | 5000 |
| Length min [L min] [mm] | 320 |
| Dry room [%rF] | <1 |
| Track width in direction of transport [b max] [mm] | 720 |
| Track width in direction of transport [b min] [mm] | 80 |
| Section load in accumulation operation [kg] | 30 |
| Nominal speed [vN] | 0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min |
| Delivery information | Assembled. Motor included separately. |
| Preferred values [mm] | 120; 160; 80 |
| Clean room classification | ISO class 7 |
| Recommended accessories | Connection kit; Leg set SZ 1 |
| Weight [kg] | 0 |
3842999899: frequently asked questions
When can 3842999899 be shipped?
3842999899 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842999899 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842999899 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842999899, subject to availability and destination.
