Bosch Rexroth 3842999894

ELT TRANSVERSE CONVEYOR EQ 2/TR

MPN: 3842999894
Category: Electrical transverse conveyors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999894?

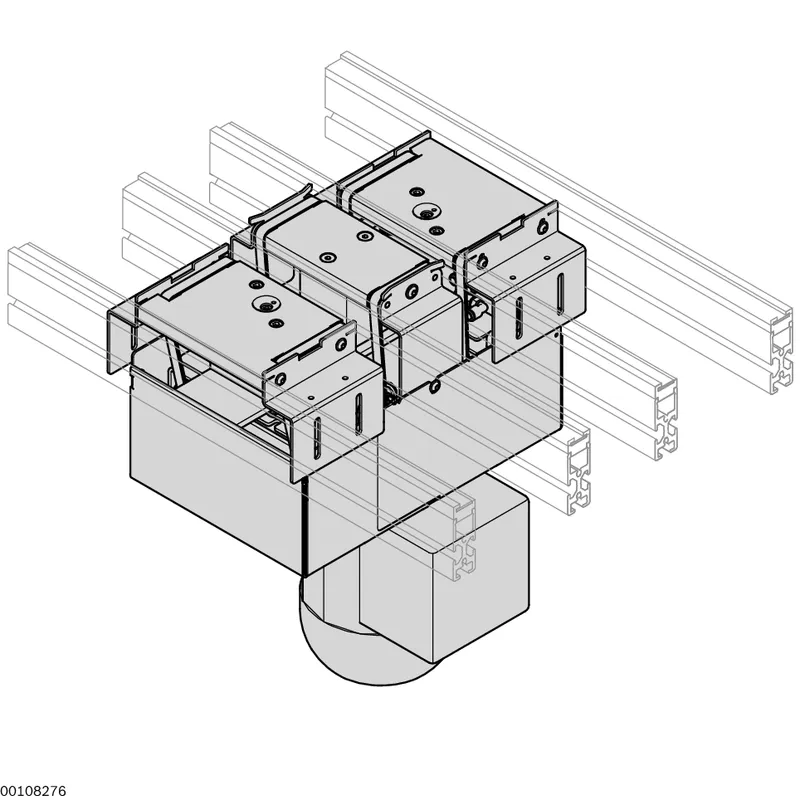

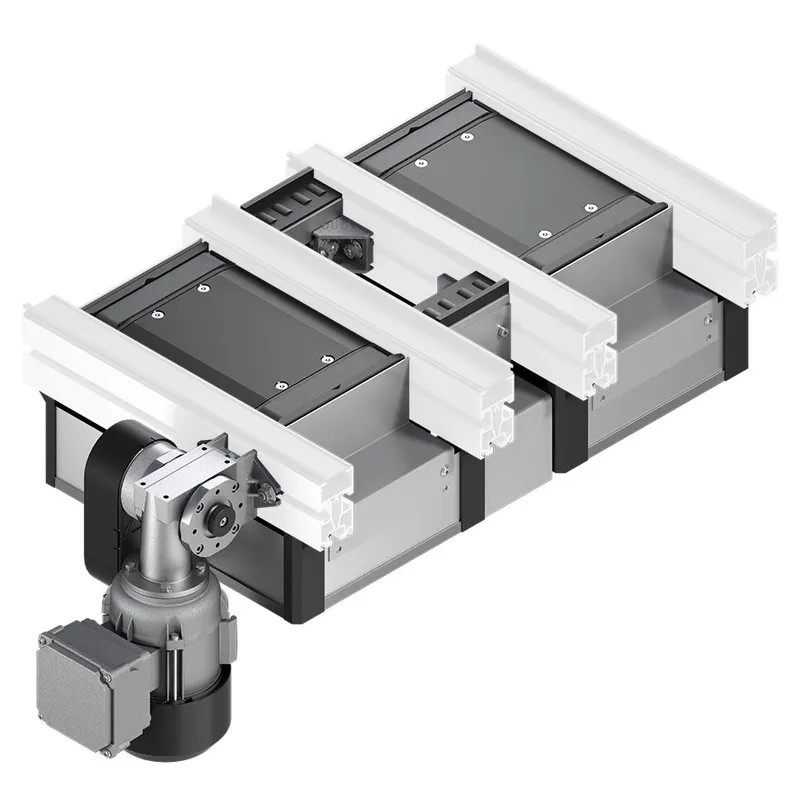

EQ 2/TR Electric Transverse Conveyor

Complete macro module for connecting two parallel longitudinal sections at a short distance from each other

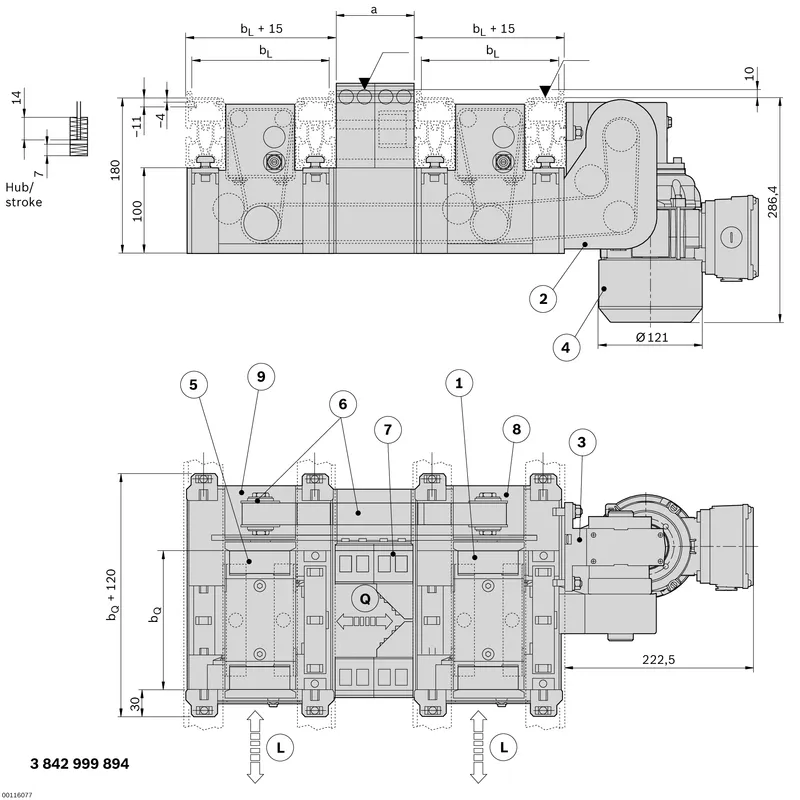

In tandem design with an RS 2 roller section at a distance of a = 45 … 135 mm

Size 2 with two lifting cylinders from ≥ 480 x 480 mm and above

Conveyor medium: Toothed belt (suitable for use in an EPA)

Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Suspended motor mounting only. Other motor mounting variants available on request

Can be combined with WT 2/E, WT 2, WT 2/F and WT 2/LS (only with version LS)

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Combination options bQ x bL	BG 1:<br/>160 x 160; 240;320<br/>240 x 160; 240; 320; 400<br/>320 x 160; 240; 320; 400<br/>400 x 240; 320; 400<br/>480 x 320; BG 2:<br/>400 x 480<br/>480 x 400; 480<br/>640 x 400; 480<br/>800 x 400; 480
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	30
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Incl. fastening material; Kit for electrical position inquiry (2x sensors); Pneumatic equipment for two or three positions; Protective housing
Delivery information	Connection kit; HQ 2/O and HQ 2/T lift transverse unit assembled; Housing elements: not assembled; Motor attachment kit, drive motor enclosed; Roller section with roller elements
Notice	a = 90 mm nur bei b<sub>L</sub> ≥ 240 mm; a = 135 mm nur bei b<sub>L</sub> ≥ 320 mm
Preferred values [mm]	160; 240; 320; 400; 480; 640; 800
Conveyor medium	Toothed belt (suitable for use in an EPA)
Required accessories	1x M12x1 sensor with rated sensing range S for each (top/bottom) position inquiry<sub>N</sub> = 4 mm
Recommended accessories	Damper DA 2/60 for the outfeeding of workpiece pallets at v<sub>N</sub> > 9 m/min; Rocker WI 2/…, WI/M and dampers DA 2/60, DA 2/100-C for BG 2 for the infeeding of workpiece pallets
Weight [kg]	0
