Bosch Rexroth 3842999888

LIFT TRANSFER UNIT HQ 2/S

MPN: 3842999888
Category: Lift transverse units TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999888?

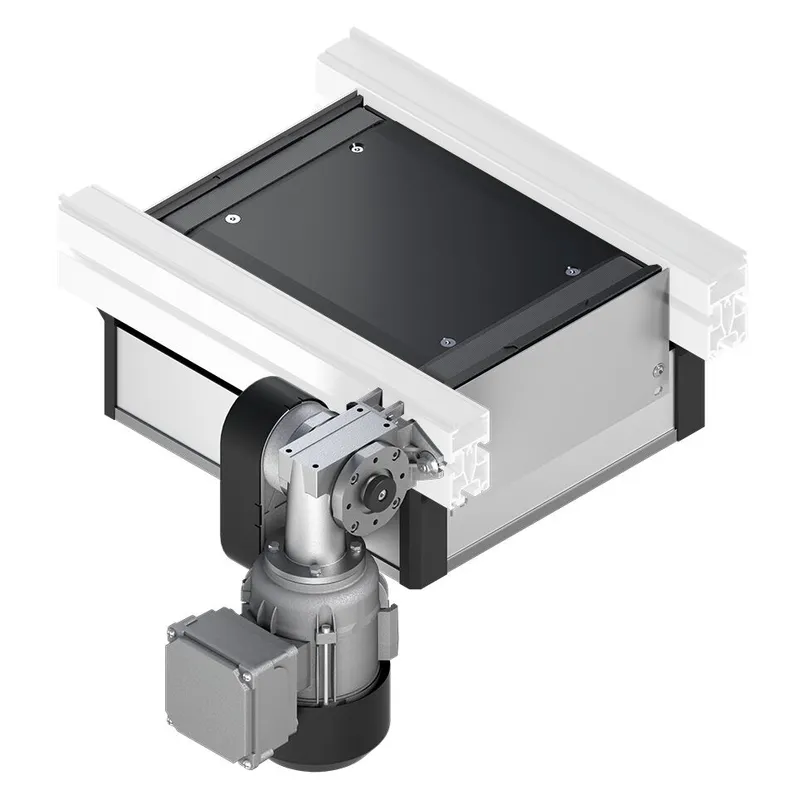

Lift Transverse Unit HQ 2/S

Lift transverse unit for feeding out from a longitudinal section into a transverse section and vice versa

Low height with motor mounted on side. It is therefore suitable for the operation of double-deck conveyor sections

In two sizes with one or two lifting cylinders

Conveyor medium: Toothed belt (suitable for use in an EPA)

Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2/E, WT 2 and WT 2/F

Vertical movement is delivered by pneumatic cylinders. There are two sizes available for total weights (workpiece pallet + load) of up to 30 kg: Size 1 (BG 1) with 1 pneumatic cylinder. Size 2 (BG 2) with 2 pneumatic cylinders for workpiece pallet dimensions from 400 x 480 mm

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Combination options bQ x bL	160 x 160; 240; 320; 240 x 160; 240; 320; 400; 320 x 160; 240; 320; 400; 400 x 240; 320; 400; 400 x 480; 480 x 320; 480 x 400; 480; 640 x 400; 480; 800 x 400; 480; BG 1; BG 2
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min
Workpiece pallet total weight [mG] [kg]	30
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Assembly kit for electrical position inquiry; Incl. fastening material; Pneumatic equipment for two or three positions; Protective housing
Delivery information	Pre-assembled in modular units; Protective housing, not assembled
Notice	Pneumatic equipment PN = 2: Upper and middle lift position; Pneumatic equipment PN = 3: Upper, middle and lower lift position
Preferred values [mm]	160; 240; 320; 400; 480; 640; 800
Conveyor medium	Toothed belt (suitable for use in an EPA)
Required accessories	1x M12x1 sensor with rated sensing range S for each position inquiry<sub>N</sub> = 4 mm
Recommended accessories	Damper DA 2/60 for the outfeeding of workpiece pallets at v<sub>N</sub> > 9 m/min; Rocker WI 2/…, WI/M and dampers DA 2/60, DA 2/100-C for BG 2 for the infeeding of workpiece pallets
Weight [kg]	0
