Bosch Rexroth

Bosch Rexroth 3842998941

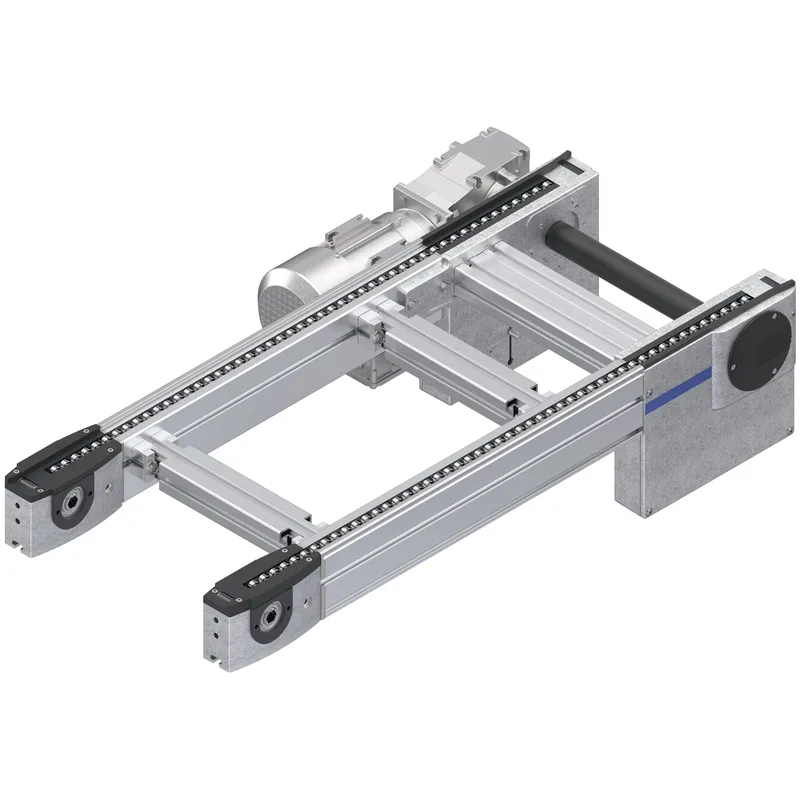

BELT SECTION BS 2/R-V-1200

MPN: 3842998941
Category: Belt section accumulation roller chain Vplus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998941?

The belt section is a ready for operation conveyor section with its own drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in connection with two lift transverse units HQ 2

Functional operation conveyor complete with drive for high workpiece pallet speeds

Sturdy design for especially heavy-duty systems

Conveyor medium: Accumulation roller chain V plus (suitable for use in an EPA)

Reversible operation possible for l ≤ 2000 mm and accumulation roller chains without small parts protection

Motor mounting right, left or central

Motor connection: optionally with cable/plug or terminal box motor connection

Special models on request

On the accumulation roller chain Vplus, the workpiece pallet attains a speed up to the factor of 2.5 higher than that of the chain. Special measures must therefore be observed for chain speeds > 9 m/min!

Positioning of WTs in the area of the drive heads/return heads is not permitted.

Specifications

Condition on delivery	Assembled
ESD	Yes
Length max [l max] [mm]	6000
Length min [L min] [mm]	650
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	400
Section load in accumulation operation [kg]	1200
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min nicht möglich bei f = 60 Hz; 6 m/min; 9 m/min
Material information	Glide profile: Steel; corrosion-resistant; Small parts protection: Steel
Conveyor medium	Accumulation roller chain Vplus (suitable for use in an EPA)
Recommended accessories	Connection kits; Decentralized automatic lubrication unit LU 2, or central automatic lubrication unit LU 2/P; Leg sets SZ 2/...-H
Weight [kg]	0
