Bosch Rexroth 3842998937

BELT SECTION BS 2/R-300

MPN: 3842998937
Category: Belt section accumulation roller chain

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998937?

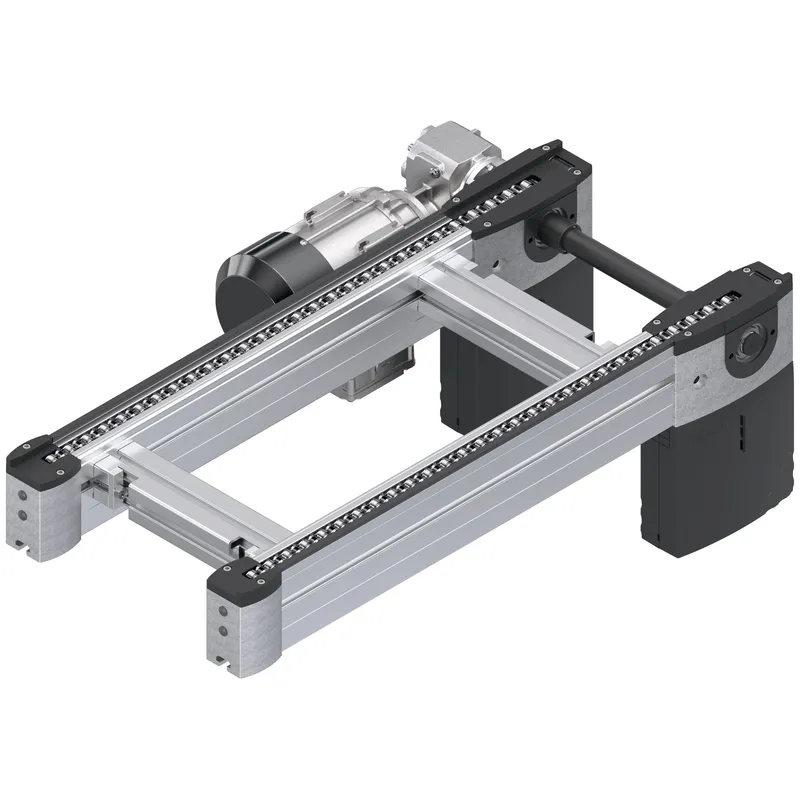

The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.

Reversible operation possible for l ≤ 2000 mm and accumulation roller chains without small parts protection

Chain tensioner for reversible operation contained in drive head

Special models on request

Positioning of WTs in the area of the drive heads/return heads is not permitted.

With short, light workpiece pallets (lWT = 160, 240), it may be necessary to ensure that conveyor trenches are traversable by installing the included acceleration element. When doing so, note the following: Avoid accumulation above the acceleration element! Accumulation above the acceleration element causes severe roller wear and shortens the service life of the chain.

Low-maintenance version available

Notice: The low-maintenance version of the accumulation roller chain allows it to be used without additional lubrication for higher requirements in clean environments. In addition, less installation and maintenance effort will be necessary. The service life can vary depending on the application compared to the standard chain.

Specifications

Condition on delivery	Assembled
ESD	Yes
Length max [l max] [mm]	6000
Length min [L min] [mm]	300
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	160
Operating temperature [T] max	+40 °C
Glide profile [GP]	0 = Plastic (max. 1 kg/cm specific section load); 1 = steel
Section load in accumulation operation [kg]	300
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Frequency [Hz]	50; 60
Track width [b] [mm]	1040; 1200; 160; 240; 320; 400; 480; 640; 800
Notice	Individual width variants can be ordered
Material information	Chain: PA or steel accumulation rollers; Glide profile: PA/steel; corrosion-resistant; Section profile: Aluminum, natural; anodized; Small parts protection: PA
Voltage at 60 Hz [V]	460; 575; 220; 400
Conveyor medium	Accumulation roller chain (suitable for use in an EPA)
Voltage at 50 Hz [V]	200; 400
Recommended accessories	Connection kits; Decentralized automatic lubrication unit LU 2, or central automatic lubrication unit LU 2/P; Leg sets SZ 2/...
Weight [kg]	0
