Bosch Rexroth 3842998933
BELT SECTION BS 2/C-100
- MPN
- 3842998933
- Category
- Belt section flat top chain
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

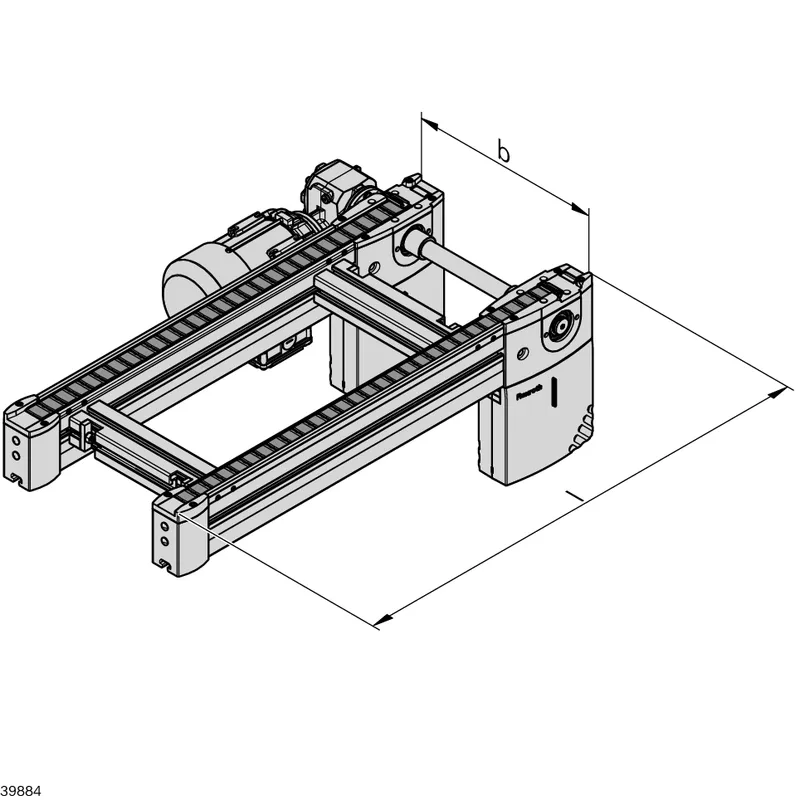

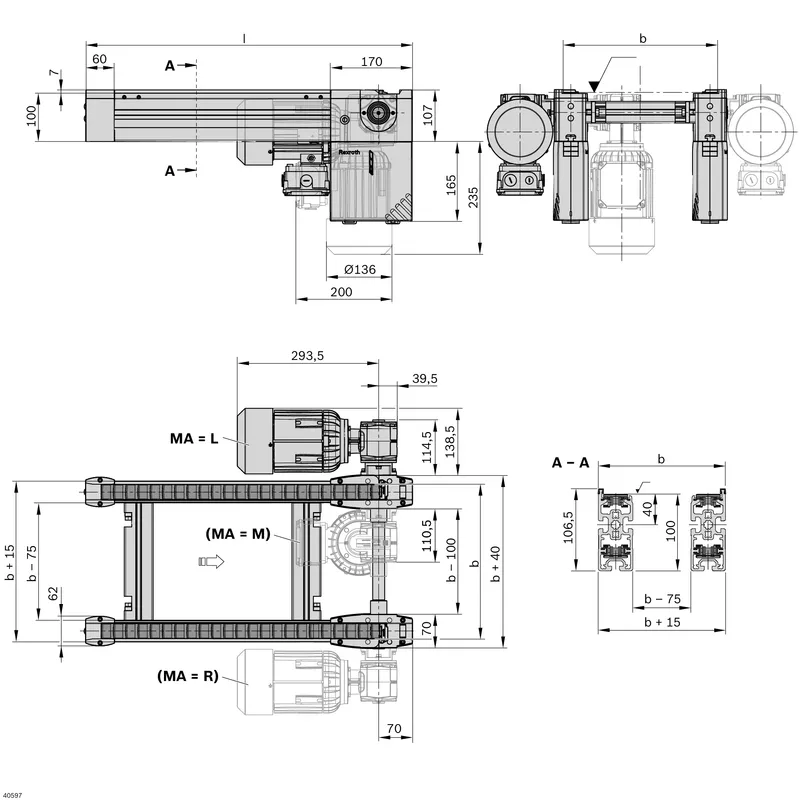

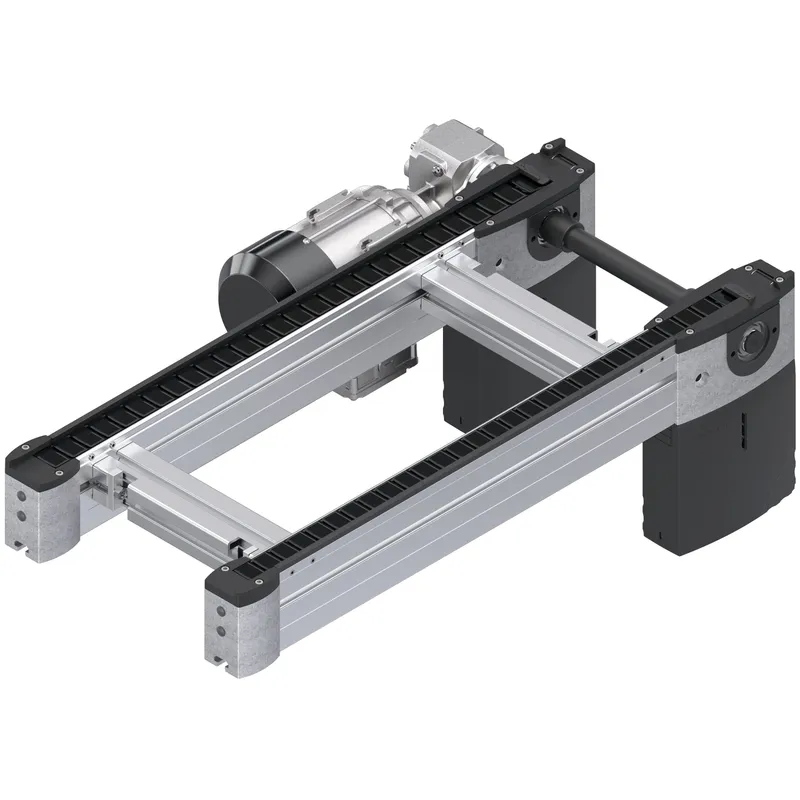

What is the Bosch Rexroth 3842998933?
Functional operation conveyor section complete with drive
The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.
Longitudinal conveying of the workpiece pallet on conveyor sections of up to 6000 mm
Transverse conveying between parallel conveyor sections
Can be combined with WT 2, WT 2/E, WT 2/LS and WT 2/F with wear pad PA
Special models on request
Use with medium accumulation loads
The WT 2/LS can be used for longitudinal conveyors with this component
Cross-traversing and motor mounting in the center (MA = M) is not possible
Positioning of WTs in the area of the drive heads/return heads is not permitted.
Specifications
Specifications
| Condition on delivery | Assembled |
| ESD | Yes |
| Length max [l max] [mm] | 6000 |
| Length min [L min] [mm] | 300 |
| Dry room [%rF] | <1 |
| Operating temperature [T] max | +40 °C |
| Section load in accumulation operation [kg] | 100 |
| Nominal speed [vN] | 0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min |
| Material information | Glide profile: PA/steel; corrosion-resistant; Guide profile: PA; Section profile: Aluminum, natural; anodized |
| Clean room classification | ISO class 7 |
| Conveyor medium | Plastic flat-top chain (with KA = A suitable for use in an EPA) |
| Recommended accessories | Connection kits; Decentralized automatic lubrication unit LU 2, or central automatic lubrication unit LU 2/P; Leg sets SZ 2/... |
| Weight [kg] | 0 |
