Bosch Rexroth 3842998934
BELT SECTION BS 2/C-250
- MPN
- 3842998934
- Category
- Belt section flat top chain
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842998934?

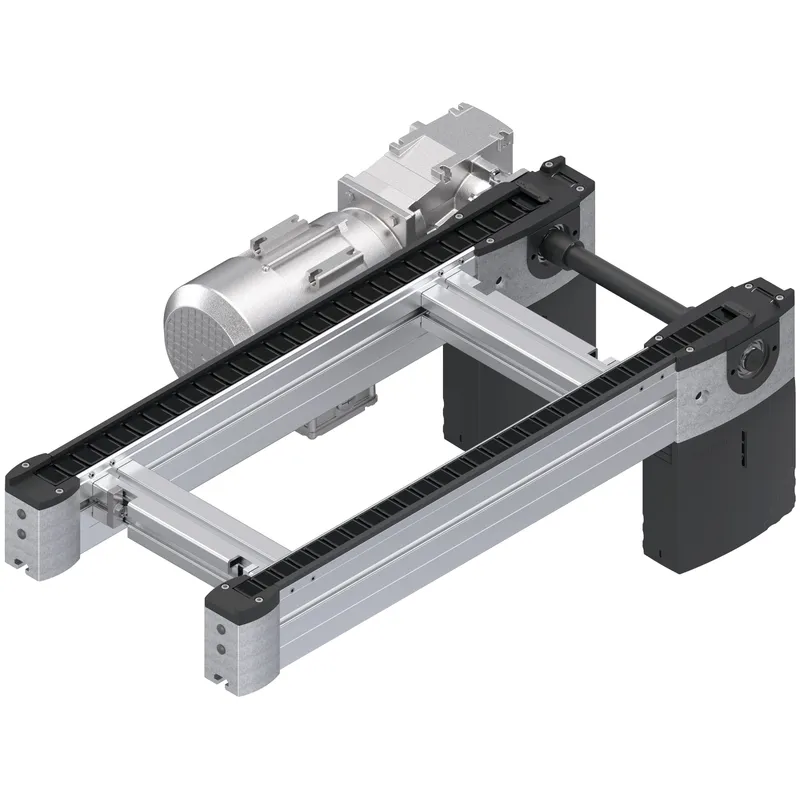

Functional operation conveyor section complete with drive
The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.
Longitudinal conveying of the workpiece pallet on conveyor sections of up to 6000 mm
Transverse conveying between parallel conveyor sections in conjunction with lift transverse units
Can be combined with WT 2, WT 2/E, WT 2/LS and WT 2/F with wear pad PA
Special models on request
Use with medium accumulation loads
The WT 2/LS can be used for longitudinal conveyors with this component
Positioning of WTs in the area of the drive heads/return heads is not permitted.
Specifications
Specifications
| Condition on delivery | Assembled |
| ESD | Yes |
| Length max [l max] [mm] | 6000 |
| Length min [L min] [mm] | 300 |
| Dry room [%rF] | <1 |
| Operating temperature [T] max | +40 °C |
| Section load in accumulation operation [kg] | 250 |
| Nominal speed [vN] | 0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min |
| Preferred values [mm] | 1040; 1200; 160; 240; 320; 400; 480; 640; 800 |
| Material information | Glide profile: PA/steel; corrosion-resistant; Guide profile: PA; Section profile: Aluminum, natural; anodized |
| Clean room classification | ISO class 7 |
| Conveyor medium | Plastic flat-top chain (with KA = A suitable for use in an EPA) |
| Recommended accessories | Connection kits; Decentralized automatic lubrication unit LU 2; Leg sets SZ 2/... |
| Weight [kg] | 0 |
