LIFT TRANSFER UNIT HQ 5
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Lift transverse units TS 5 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842998930 be shipped?
3842998930 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842998930 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842998930 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998930, subject to availability and destination.

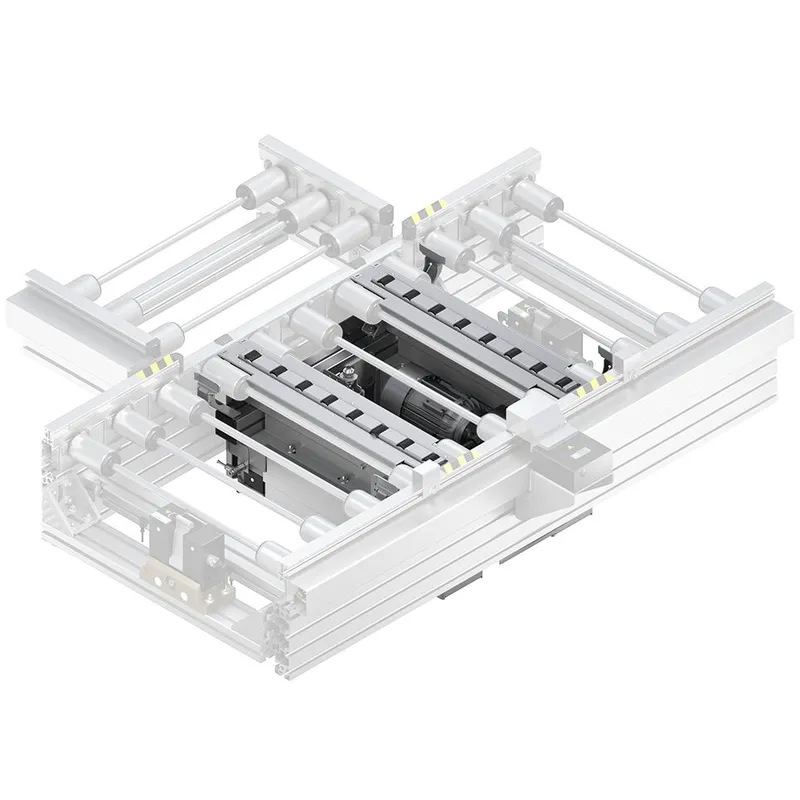

The lift transverse unit is a module for branching transport. It lifts the workpiece pallet and moves it transversely to the original conveying direction via a driven roller section. <b>Notice:<br></b>-This lift transverse unit is delivered without section.<br>- Note the orientation of the workpiece pallet after branching.<br>- When using the interface to SEW, the motor is in the direction of transport before HQ 5. Can be used with all WT 5 workpiece pallets The transverse transport level is 4.5 mm above the transport level of the longitudinal section Protective casing can also be removed in the case of low conveyor heights Compressed air connection: 5 ... 6 bar Pneumatic push-in fitting: 6 mm Drive possible with AB 5
Specifications
Specifications
| Nominal speed [vN] | 12 m/min; 6 m/min; 9 m/min |
| Gear motor [GM] | 0 = ohne Getriebemotor; 1 = mit Getriebemotor |
| Scope of delivery | Incl. cover on passive or active side depending on the selection of parameter OFD and use of support rollers; Incl. guide piece and warning label; Incl. protective covers for the lifting mechanism and roller section; Incl. support rollers included in all configurations up to b<sub>L</sub> = 845 mm with p = 130 mm or p = 195 mm, as there are no problems with the conveyor trench; Including fastening material for mounting the HQ 5 in conveyor sections ST 5/XH, ST 5/H and in the drive modules AS 5/XH, AS 5/H |
| Delivery information | Fully assembled |

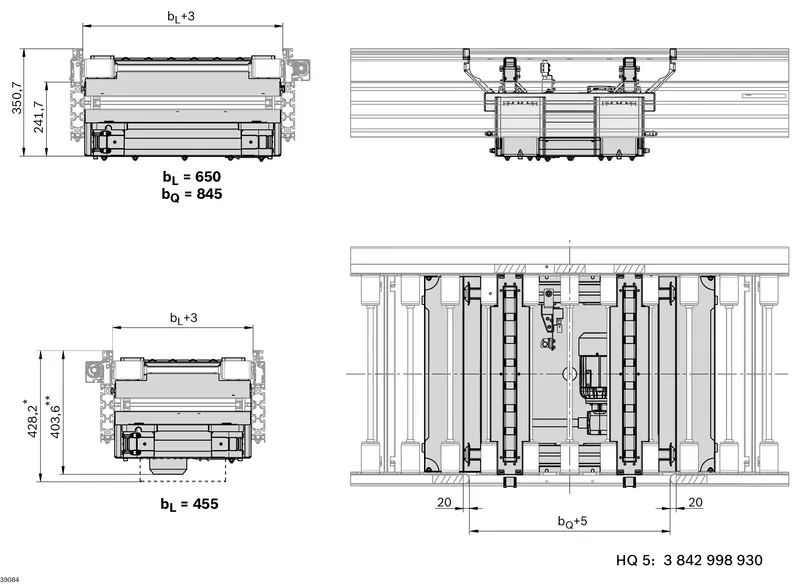

| Preferred values [mm] | 1040; 455; 650; 845 |
| Required accessories | 2x switch bracket SH 2/U‑H for position inquiry top and bottom; Sensor application matrix; Stop gate VE 5/200, VE 5/D‑300, VE 5/D‑301, VE 5/D‑1000 or VE 5/D-1000-E |
| Recommended accessories | For position inquiry workpiece pallet sensor 3842545972; Lateral guide cover |
| Weight [kg] | 0 |
