Bosch Rexroth 3842998909
BELT SECTION BS 1/S
- MPN
- 3842998909
- Category
- Belt sections TS 1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842998909?

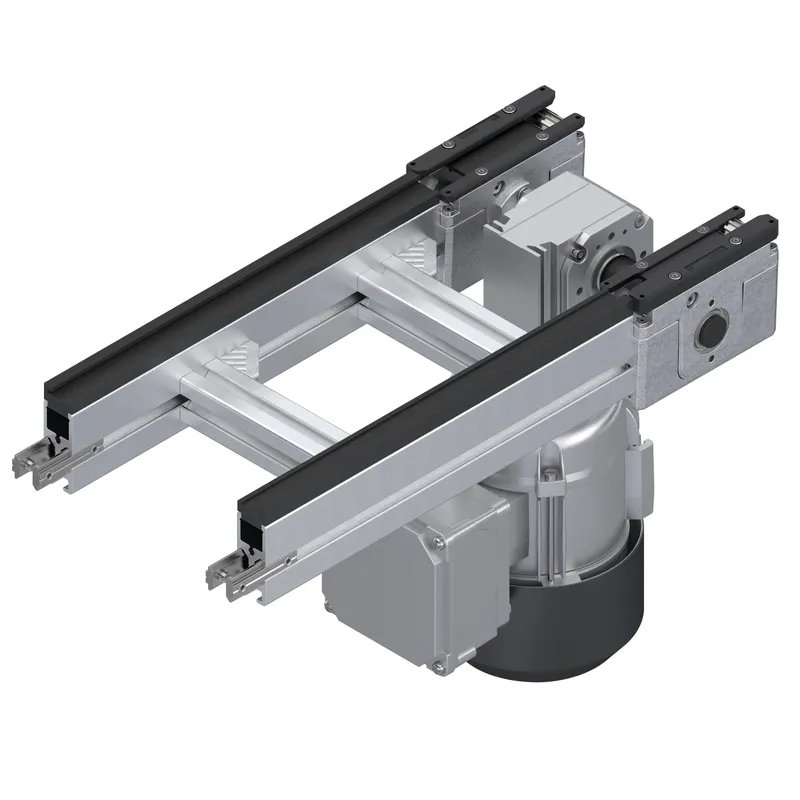

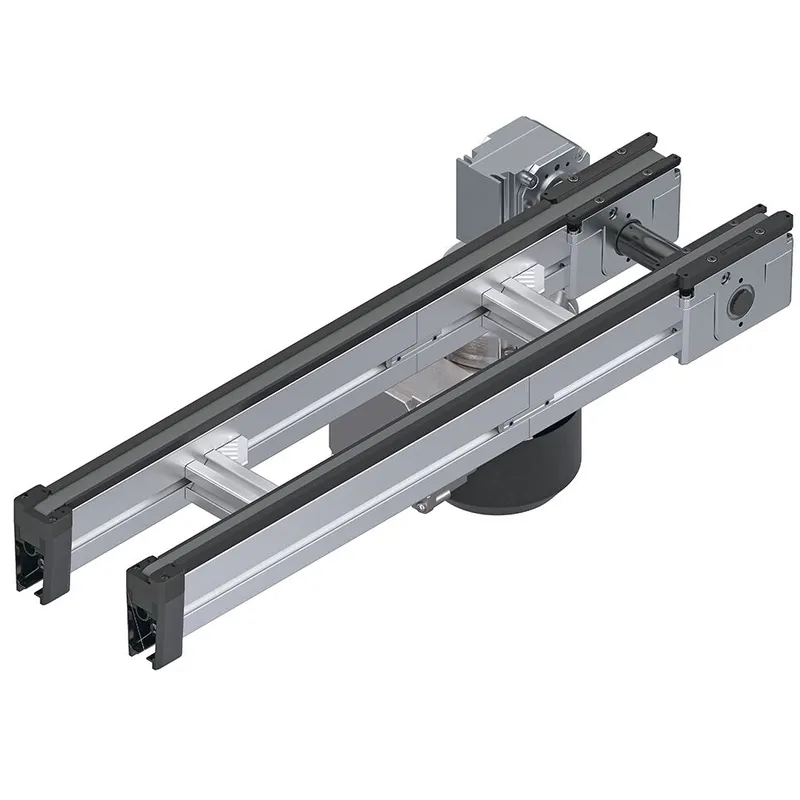

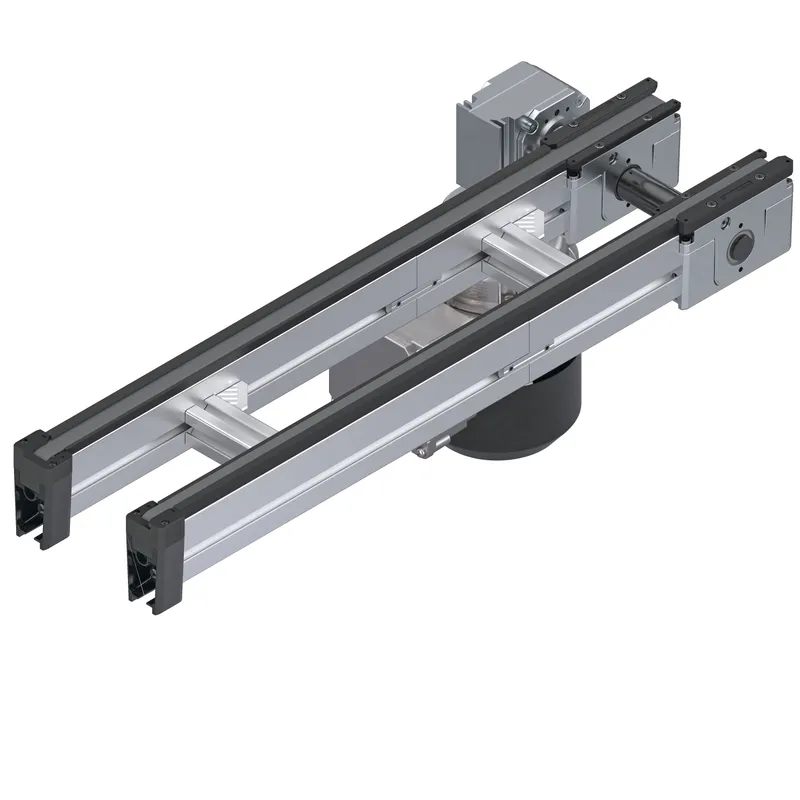

BS 1/S belt section

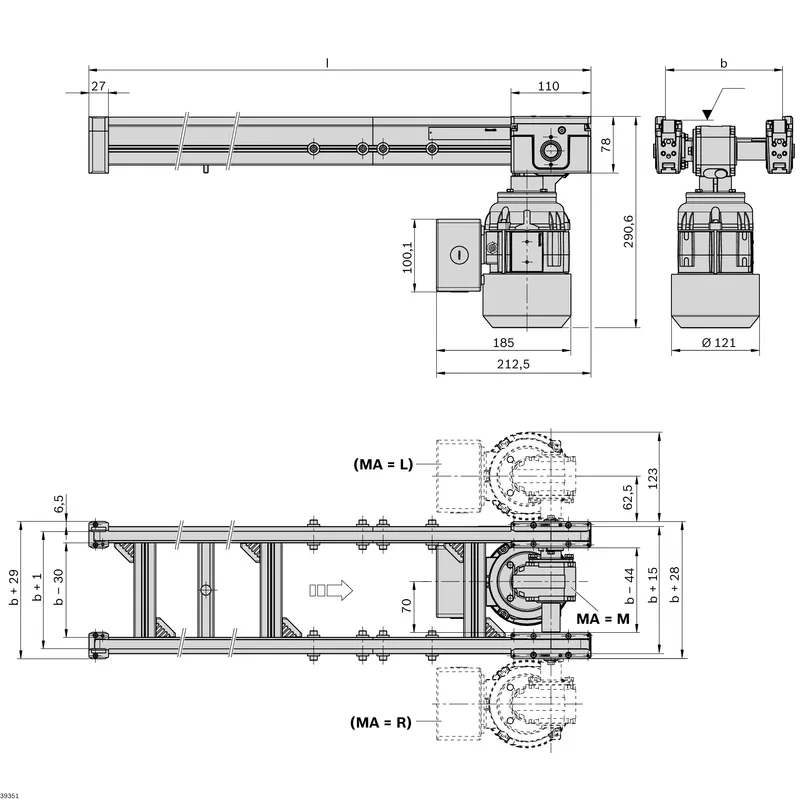

Ready for operation conveyor section with own drive. Motor mounting right (MA = R), left (MA = L), with track width b = 160 mm also central (MA = M)
Segmented belt section with the possibility of up to 3 additional cuts in the longitudinal profile
Connection with standard profile connectors
This allows flexible individual parts of the belt section to be removed
This also causes simpler handling and more efficient transportation of the belt sections
Depending on the length, the BS 1 is delivered with two, three or four cross connectors
Section loads up to 30 kg in accumulation operation
Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA
Longitudinal transport of the workpiece pallet with segmented conveyor sections of up to 5000 mm
Transverse transport of the workpiece pallet between parallel conveyor sections (in conjunction with two lift transverse units HQ 1/U)
Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
Special models on request
Specifications
Specifications
| ESD | Yes |
| Dry room [%rF] | <1 |
| Track width in direction of transport [b max] [mm] | 720 |
| Track width in direction of transport [b min] [mm] | 81 |
| Section load in accumulation operation [kg] | 30 |
| Nominal speed [vN] | 0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min |
| Delivery information | Assembled. Motor included separately. |
| Notice | Motor mounting MA = M only when b = 160 or b = 161... 720 |
| Preferred values [mm] | 120; 160; 80 |
| Material information | Glide profile: Polyamide; Guide profile: Polyamide; Section profile: Aluminum, natural; anodized |
| Length min [l1] [mm] | 260 |
| Length max [l1] [mm] | 5740 |
| Length [l2] [mm] | 520 ... 5480 |
| Length [l3] [mm] | 780 ... 5220 |
| Length [lges min] [mm] | 520 |
| Length [lges max] [mm] | 6000 |
| Clean room classification | ISO class 7 |
| Recommended accessories | Connection kit; Leg set SZ 1 |
| Weight [kg] | 0 |
