Bosch Rexroth 3842998924

STOP GATE VE 5/D-1000-E

MPN: 3842998924
Category: Stop gate TS 5

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998924?

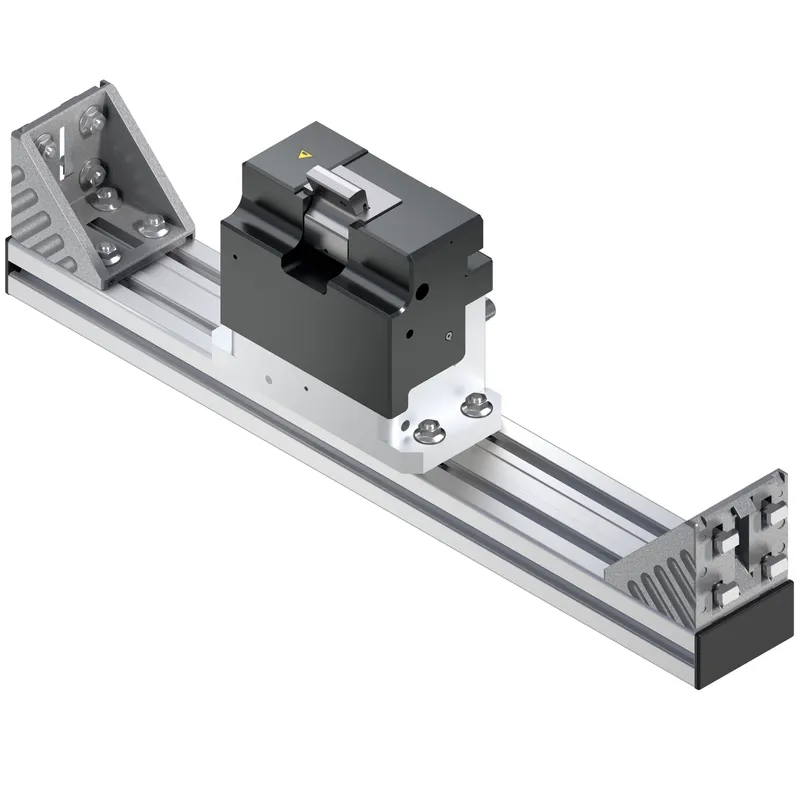

Stop gate VE 5/D-1000-E

Please note that in the limit ranges of the permissible weight/speed combinations, the damping behavior may not be optimal.

Damped stopping of a workpiece pallet at the defined stop surface and for separating workpiece pallets

Electrical stop gate for the set-up of plants without pneumatic system

Can be combined with WT 5

Little installation work as there is no pneumatic system

Low noise development

Loading only in the direction of transport

No spring return, the stop blade of the stop gate is reset or put up by means of a step motor

Hydraulic damping, not adjustable

Transportation Control

Specifications

ESD	Yes
Operating temperature [T] max	+5 ... +60 °C
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	1000; 1000; 700; 800; 900
Cycle Time [s]	5
Scope of delivery	Electric push-in connection, 5-pole; Incl. fastening material for assembly on conveyor section
Delivery information	Not assembled
Preferred values [mm]	1040; 455; 650; 845
Material information	Housing: Aluminum, hard anodized; Stop: Steel, hardened
Min. workpiece pallet weight m	50 kg
Required accessories	Actuator and sensor system cables common in the market (5-pole)
Weight [kg]	0
