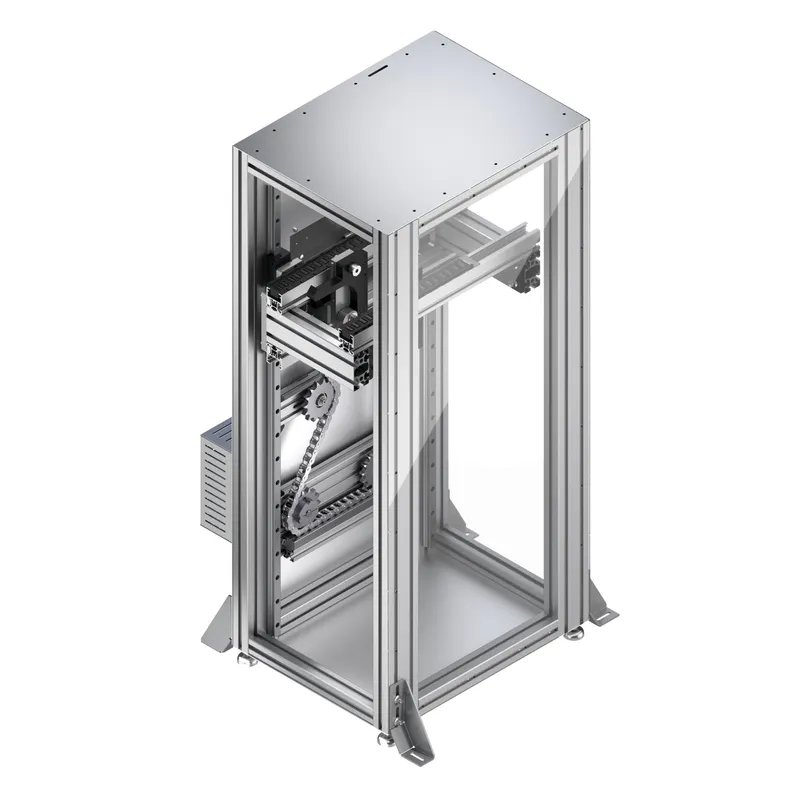

Lift EL 2 Lift for changing workpiece pallets between two different transport levels Drive through synchronous servomotor MSM with absolute encoder<br>- Interface: Plug-in connectors for encoder connection and power connection<br>- Electrically released holding brake Lift for conveying a workpiece pallet vertically from a lower conveying section to a higher conveying section or vice versa Designed as a head lift Suitable for use in an EPA For all workpiece pallet dimensions up to 800 x 800 mm Lower transportation height possible from 290 mm Max. total workpiece pallet weight = 60 kg Short cycle times of up to 7.9 s are possible Strokes of up to 1500 mm can be achieved Maintenance hatch for servicing purposes included Options are available for protective cover material The product to be transported must not exceed neither b<sub>WT </sub>nor I<sub>WT </sub>of the workpiece pallet
Specifications
Specifications
| ESD | Yes |
| Section load in accumulation operation [kg] | 60 |
| Gear motor [GM] | 0 = mit Getriebe, ohne Motor, ohne Kompaktumrichter; 1 = mit Getriebe, Motor und Kompaktumrichter |
| Specific section load [kg/cm] | 1 |
| Min. stroke [mm] | 400 |
| Max. stroke [mm] | 1500 |
| Length in direction of transport [lT] [mm] | 160; 240; 320; 400; 480; 640; 800 |
| Scope of delivery | Incl. 2 x sensor M12x1, S<sub>N</sub> = 8 mm L = 45 mm, 3842557633; Incl. kit for position sensing (for 2 x sensor 3842557633); Incl. protective cover |

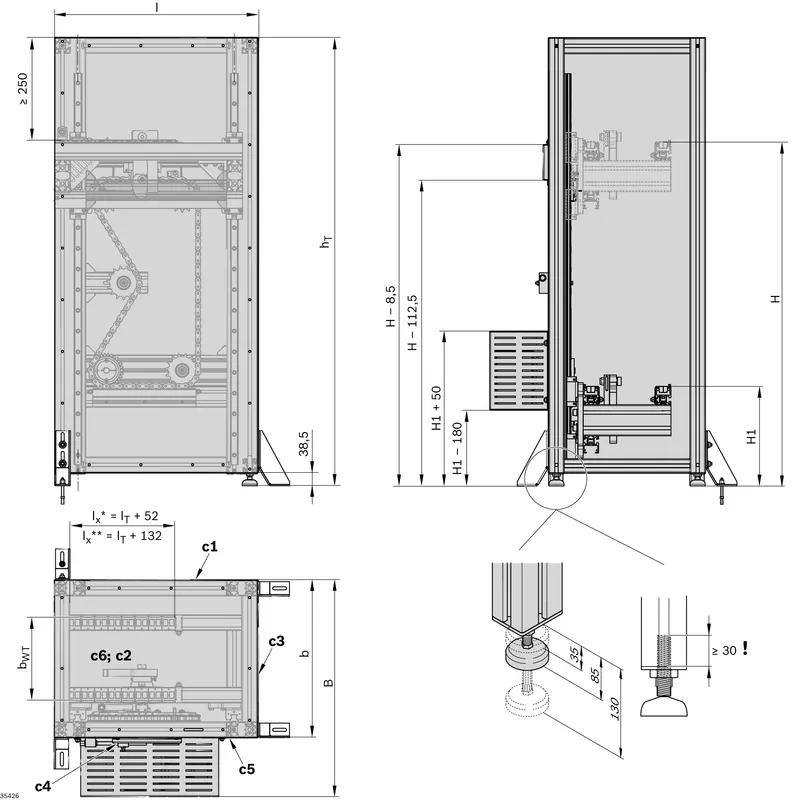

| Delivery information | Motor control unit, not assembled (GM = 0); Protective cover, partially assembled (c2, c4, c5 and c6 are assembled, see fig. on 5-81 below); Motor control unit, assembled (GM = 1) |
| Notice | Lower transport level H1: stroke s = H - H1, 400 ≤ s ≤ 1500; Total lift height h<sub>T</sub> ≥ 250 + H |
| Preferred values [mm] | 160; 240; 320; 400; 480; 640; 800 |
| Material information | Chain wheels and chain tensioner: steel; Feed hook: POM, black; Guide profiles: PUHMW, black; Motor cover: sheet, galvanized; Protective cover: PC, aluminum; Vertical guide: steel |
| Total lift height [hT] | 1000; 1100; 1200; 1300; 1400; 1500; 1600; 1700; 1800; 1900; 2000; 2300; 2600; 2900 |
| Required accessories | Optical sensor for infeeding; Rockers WI 2/…, WI/M for infeeding and outfeeding the workpiece pallet |
| Recommended accessories | Automatic lubrication unit LU 2 and adapter set for EL 2 (3842559808), connection kit EL 2 (3842559810) |
| Weight [kg] | 0 |
