Bosch Rexroth 3842998863

ROTATE UNIT DE 5

MPN: 3842998863
Category: Rotary units TS 5

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998863?

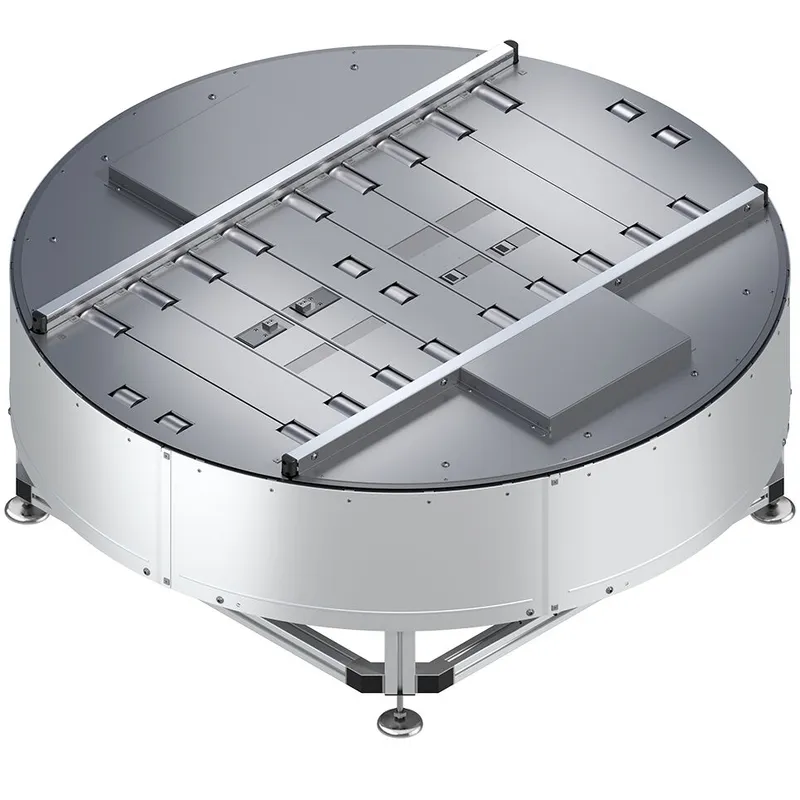

DE 5 rotary unit

The rotary unit is a module for the horizontal rotation and transport of workpiece carriers

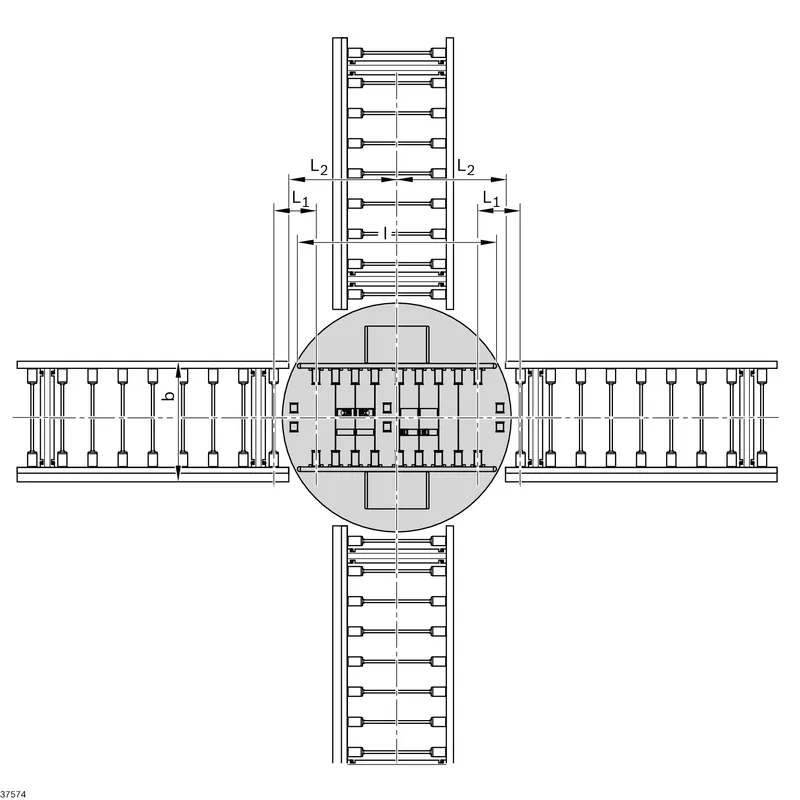

With this, branch-offs and crossings are also possible for heavy workpiece pallets (up to 400 kg)

Specifications

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	5
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 2 m/min; 4 m/min; 6 m/min; 9 m/min
Lateral guide material [LG]	1 = Stahl; 2 = Kunststoff; 3 = Aluminium
Roller material [TR]	1 = Stahl, verzinkt; 2 = Stahl, nitrocarburiert
Pneumatic straight connection [Ø] [mm]	6
Transportation height [H]	585 ... 1400
Stop gate [VE]	0 = ohne; 1 = mit
Rotary movement time	180°: 7; 270°: 10; 90°: 4
Belt section length L [mm]	1000; 1180; 1310

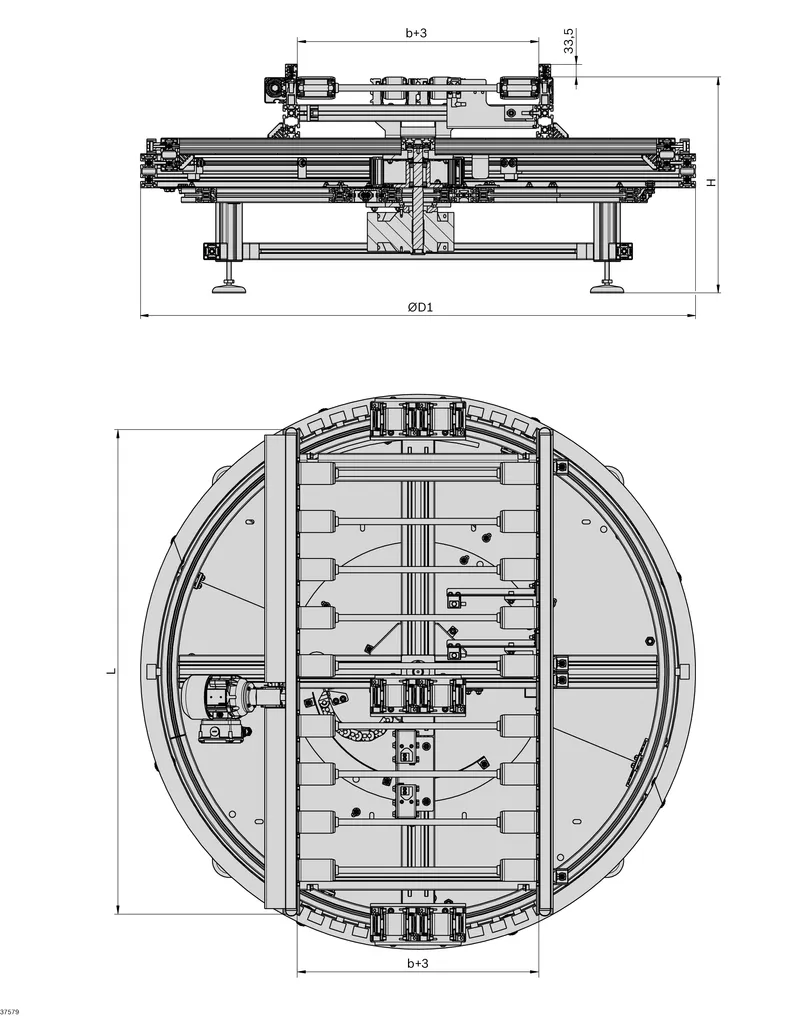

⌀ without protective cover D1, mm [mm]	1140; 1500

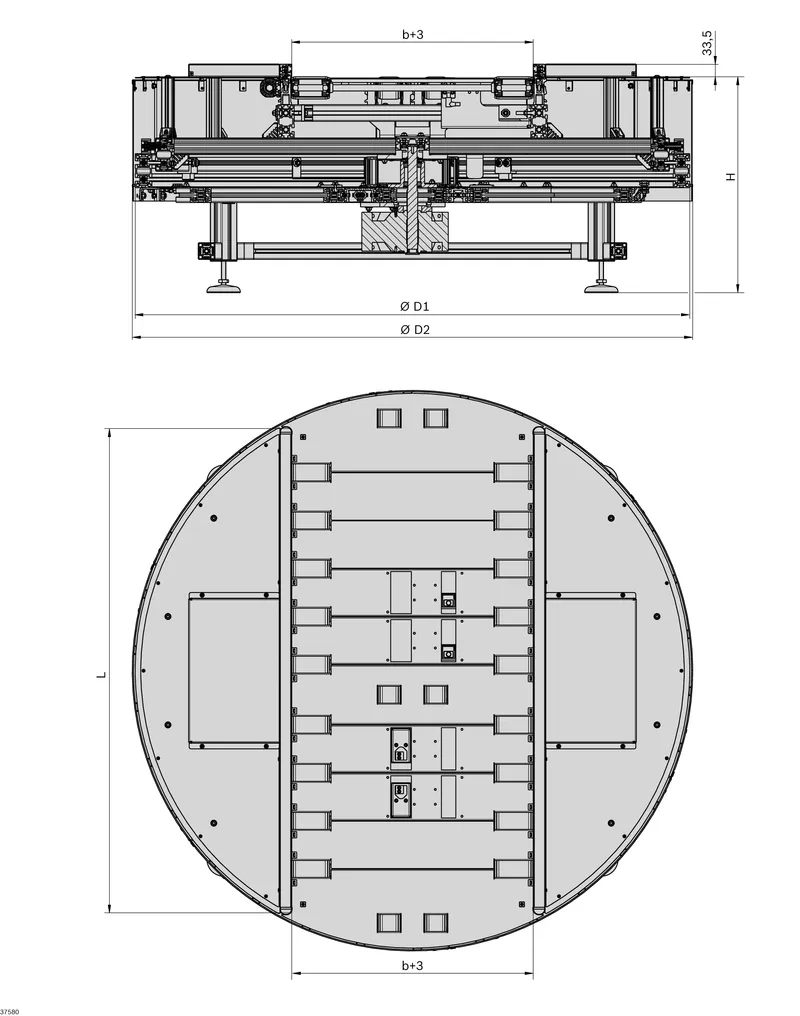

⌀ with protective cover D2, mm [mm]	1156; 1516
Track width in direction of transport [b] [mm]	455; 650; 845
Length in direction of transport [lT] [mm]	1040; 455; 650; 845
Delivery information	Protective covers (traversing mechanism and section) mounted optionally; protective covers cannot be ordered separately; Ready-to-install incl. supports
Preferred values [mm]	455; 650; 845
Weight [kg]	0
