Bosch Rexroth 3842998855

LIFT TRANSFER UNIT HQ 5/XH

MPN: 3842998855
Category: Lift transverse units TS 5

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998855?

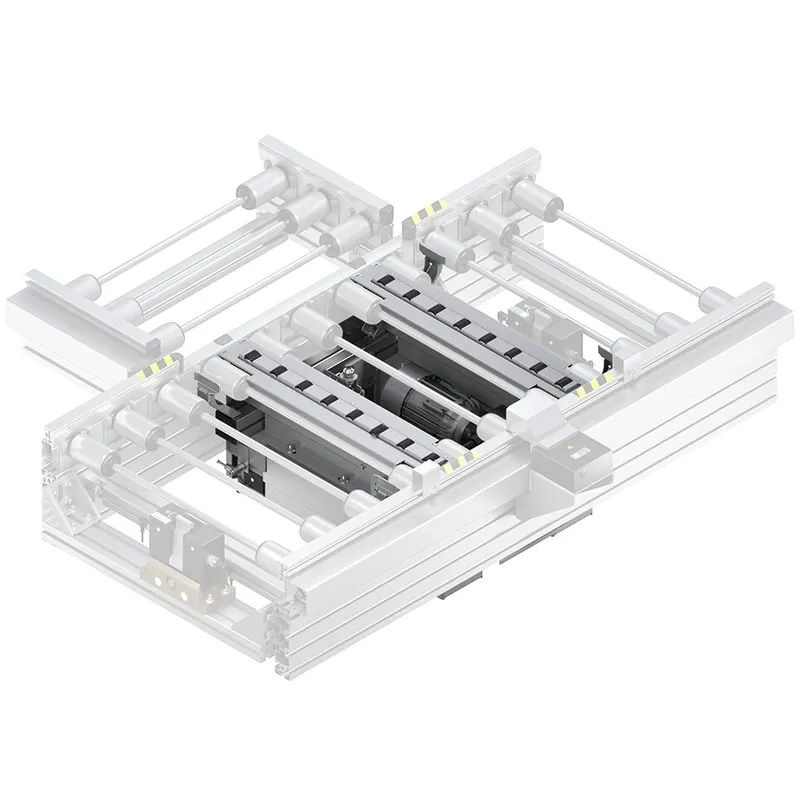

HQ 5/XH lift transverse unit

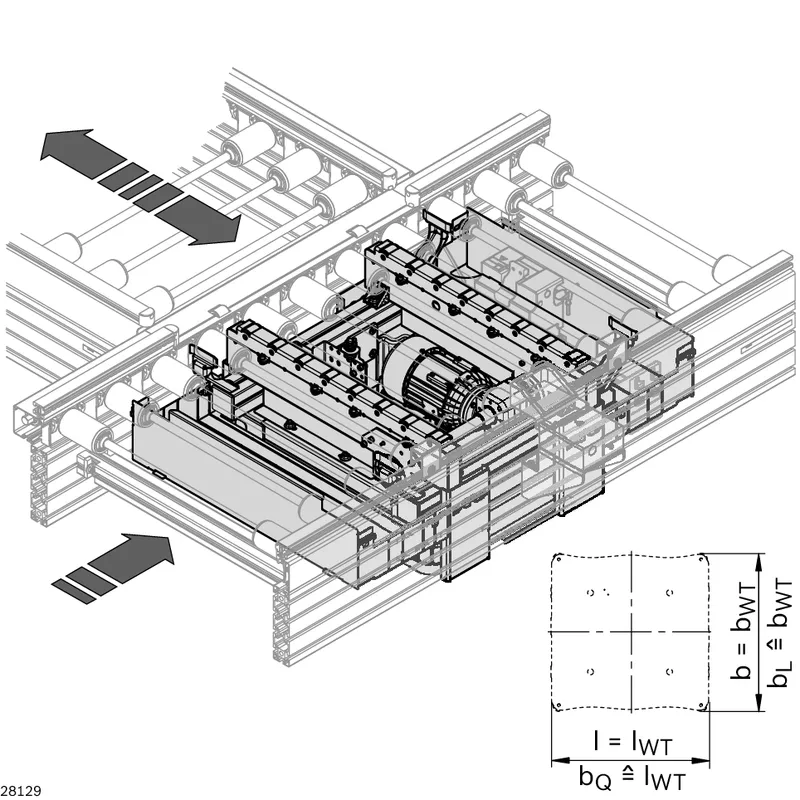

The HQ 5 lift transverse unit is a ready-for-operation module for branching transport. It lifts the workpiece pallet from the rollers and moves it transversely to the original conveyor direction via a driven roller section

Note: Note the orientation of the workpiece pallet after branching

Can be used with all WT 5 workpiece pallets

The transverse transport level is 4.5 mm above the transport level of the longitudinal section

Protective casing can also be removed in the case of low conveyor heights

Compressed air connection: 5 ... 6 bar

Pneumatic push-in fitting: 6 mm

Specifications

Nominal speed [vN]	12 m/min; 6 m/min; 9 m/min
Roller material [TR]	1 = Stahl, verzinkt; 2 = Stahl, nitrocarburiert
Scope of delivery	Incl. ST 5/XH or ST 5/H conveyor unit
Delivery information	Fully assembled

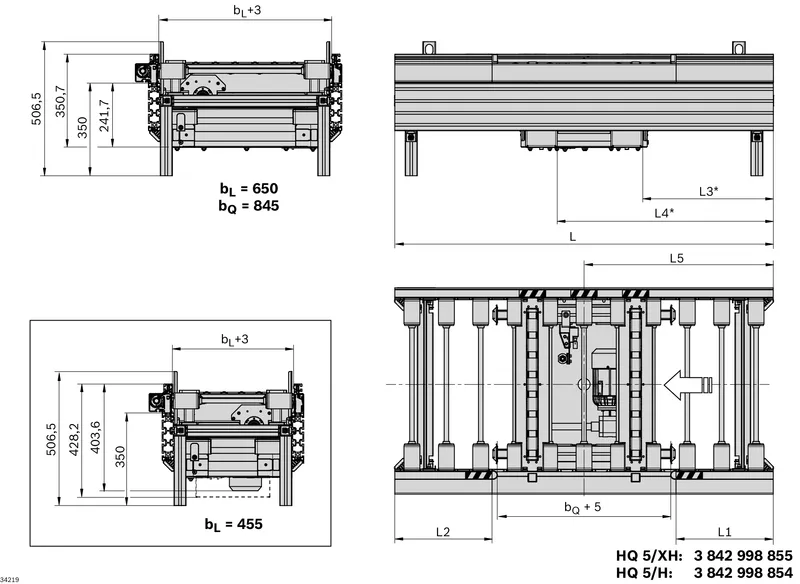

Preferred values [mm]	1040; 455; 650; 845
Required accessories	Clamping holder for sensors; SH 2/U-H switch bracket; VE 5/D-1000 stop gate, VE 5/D-300 stop gate, VE 5/D-301 stop gate or VE 5/200 stop gate
Recommended accessories	For position inquiry workpiece pallet sensor; protective covers
Weight [kg]	0
