Home / Bosch Rexroth / Drive units TS 5 / Bosch Rexroth 3842998841

Bosch Rexroth

Bosch Rexroth 3842998841

DRIVE MODULE AS 5/OC

MPN: 3842998841
Category: Drive units TS 5

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998841?

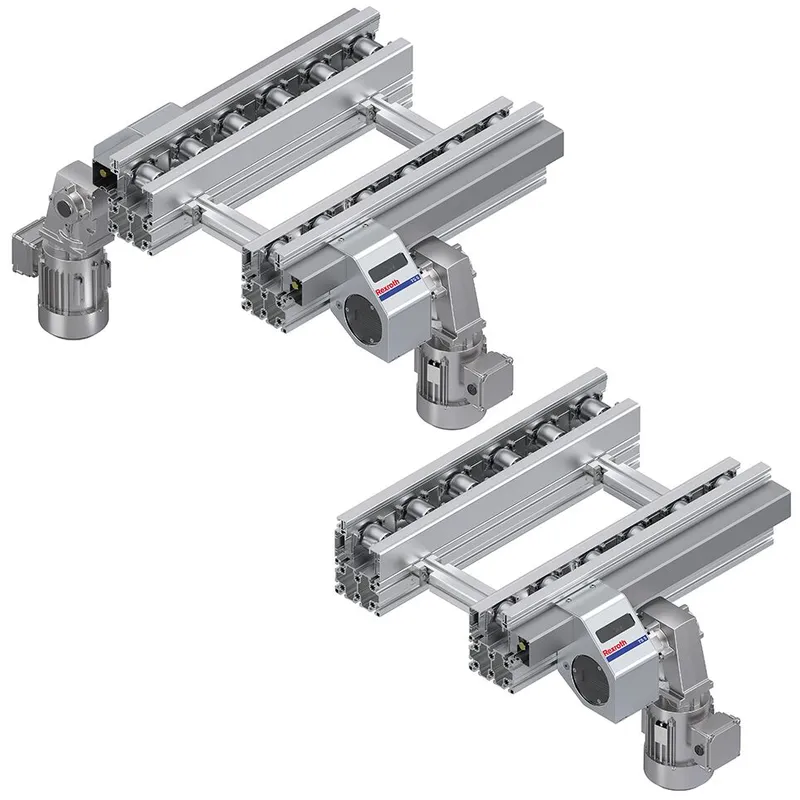

AS 5/OC drive units

Drive for ST 5/OC… conveyor units

Reversible operation possible

Accumulation operation possible

Motor connection with plug (AT = S) or terminal box (AT = K)

Freely selectable motor position and length

Gear motor can be mounted on both sides on the transmission drive (MA = R and MA = L)

Viewing window for checking the toothed belt

Due to the simple and space-saving disassembly of the cover, adjacent components/machines can be positioned at a distance of 20 mm from the AS 5

Optional frequency converter

Suitable for clean room of ISO class 7

Suitable for dry room Notice: Please take account of the load center of gravity when selecting the drive

Specifications

Length max [l max] [mm]	390
Length min [L min] [mm]	4160
Gear motor [GM]	0 = Schnittstelle SW27 ohne Getriebemotor; 1 = Schnittstelle SW27 mit Getriebemotor; 2 = Schnittstelle zu SEW Rundwelle Ø 20 ohne Getriebemotor
Lateral guide material [LG]	1 = Stahl; 2 = Kunststoff; 3 = Aluminium
Roller material [TR]	1 = Stahl, verzinkt; 2 = Stahl, nitrocarburiert
Number of rollers [N]	3; ... 12; 16; 21; 32
Workpiece pallet length [lWT] [mm]	1040; 455; 650; 845
Delivery information	Mounting option for the gear motor on the right/left possible; Ready-to-install, gear motor enclosed separately
Preferred values [mm]	1040; 455; 650; 845
Material information	Shaft: Brass
Weight [kg]	0
