Bosch Rexroth 3842998842

DRIVE KIT AB5

MPN: 3842998842
Category: Drive kit

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998842?

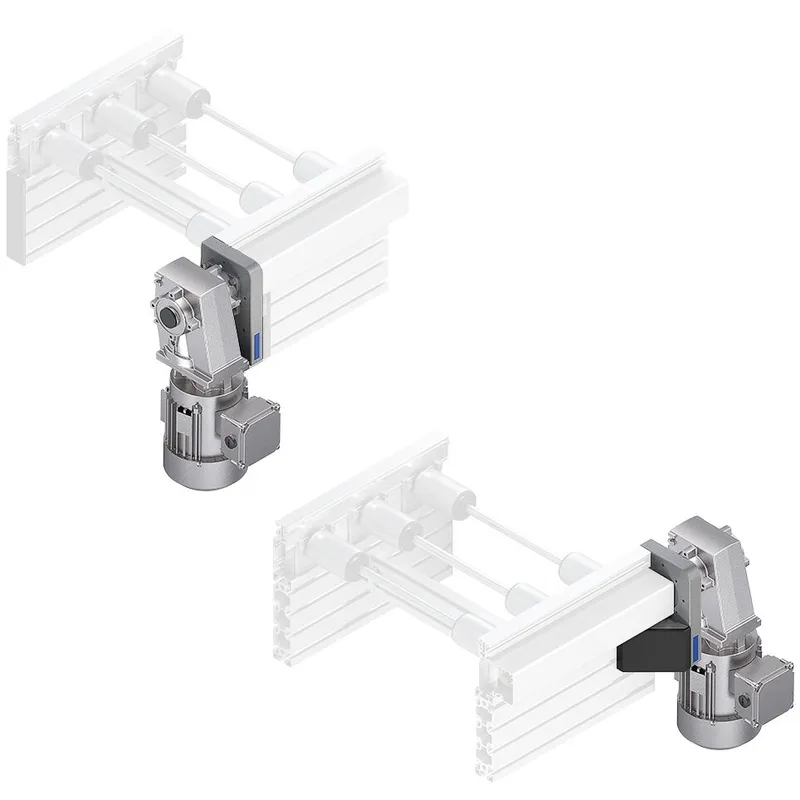

AB 5 drive kit

For face-side driving of conveyor units ST 5/… and CU 5

Adaptation of the sheet metal parts is required

Suitable for reversible operation (max. 20 Nm)

With a Lenze gear motor (GM = 1) or with interface for installing a SEW gear motor (GM = 2)

Motor connection with plug (AT = S) or terminal box (AT = K)

Optional frequency converter

Notice:

- Maximum length of the driven total section with p = 130 and 45 Nm motor output = 19.5 m (longer sections on request)

- Suitable for driving two connected curves

Specifications

Nominal speed [vN]	0 m/min ohne Getriebemotor; 12 m/min; 15 m/min; 18 m/min; 2 m/min ggf. Zusatzmaßnahmen erforderlich; 4 m/min ggf. Zusatzmaßnahmen erforderlich; 6 m/min; 9 m/min
Gear motor [GM]	0 = Schnittstelle SW27 ohne Getriebemotor; 1 = Schnittstelle SW27 mit Getriebemotor; 2 = Schnittstelle zu SEW Rundwelle Ø 20 ohne Getriebemotor
Scope of delivery	Incl. fastening material and flange; The corresponding section is not included in the scope of delivery
Delivery information	Mounting option for the gear motor at the top/horizontally/bottom possible; Not assembled
Notice	Parameter p is only used to assign the last end plate
Material information	Bracket: Aluminum; Coupling: Cast steel, brass; Flange (Lenze): Aluminum; Flange (SEW): Steel; Motor flange: Die-cast aluminum; Shaft: Stainless steel
Weight [kg]	0
