Bosch Rexroth 3842998871

ROTATE UNIT DE 2 - BG 1

MPN: 3842998871
Category: Rotary units TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998871?

Rotate unit DE 2 - BG 1

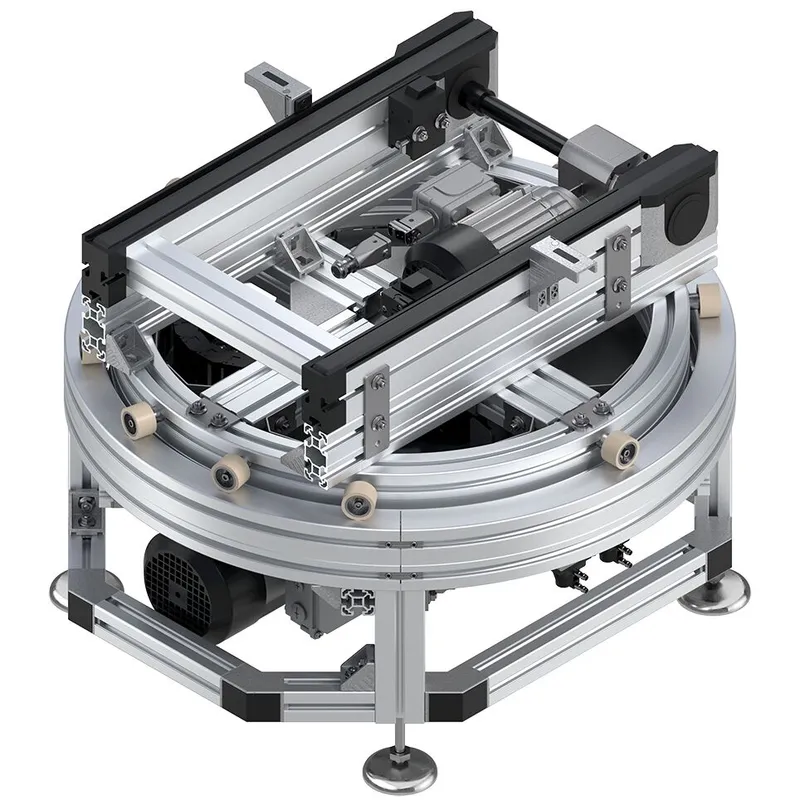

The rotary unit is a module for the horizontal rotation and transport of workpiece carriers

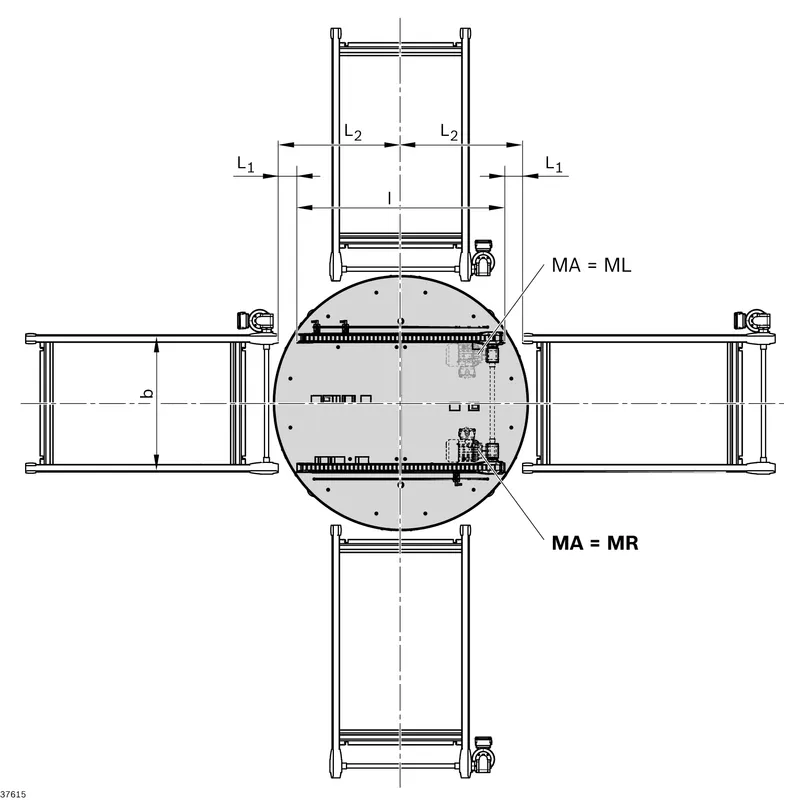

With this, branch-offs and crossings are also possible for heavy workpiece pallets (up to 96 kg)

Specifications

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	5
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	96
Pneumatic straight connection [Ø] [mm]	6
Workpiece pallet type [WT]	1 = WT 2, WT 2/F; 2 = WT 2/H, WT 2/F-H
Transportation height [H]	585 ... 1400
Stop gate [VE]	0 = ohne; 1 = mit Vereinzeler
Rotary movement time	180°: 7 s; 270°: 10 s; 90°: 4 s
Belt section length L [mm]	597; 656

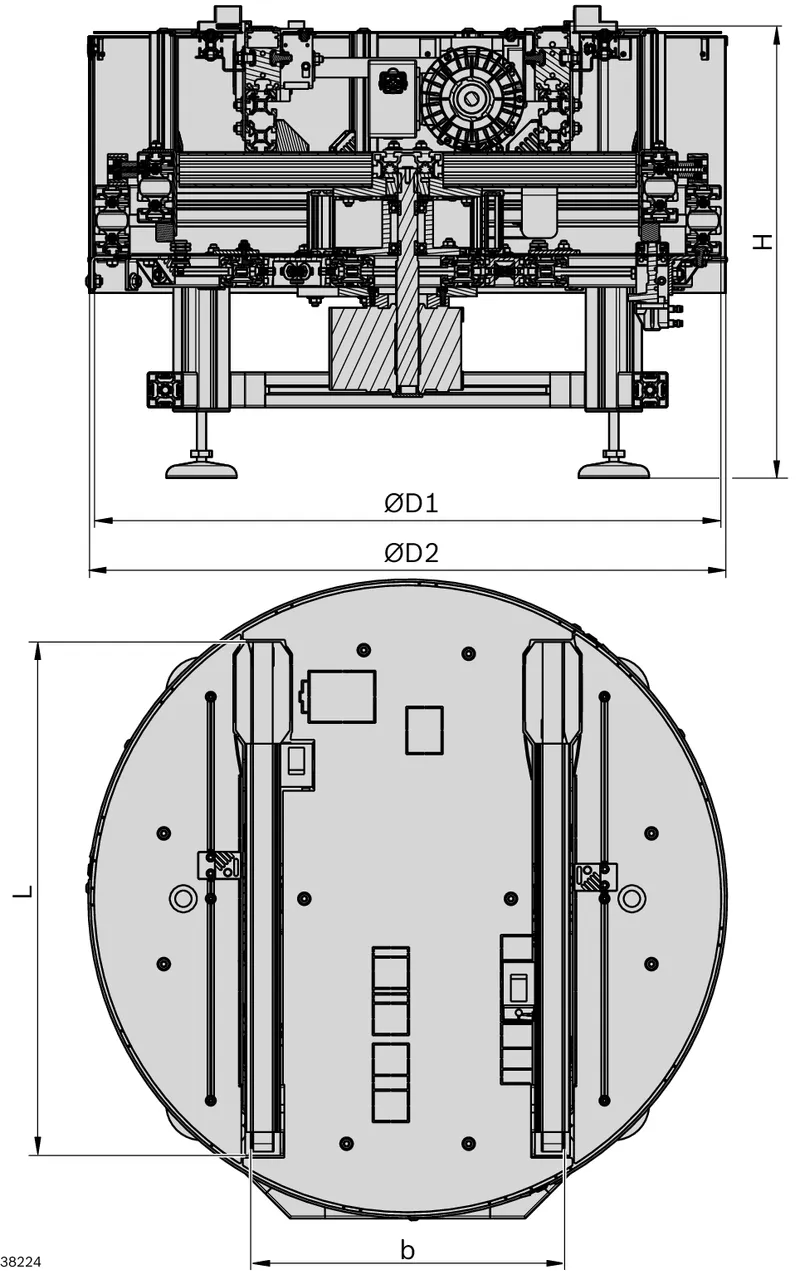

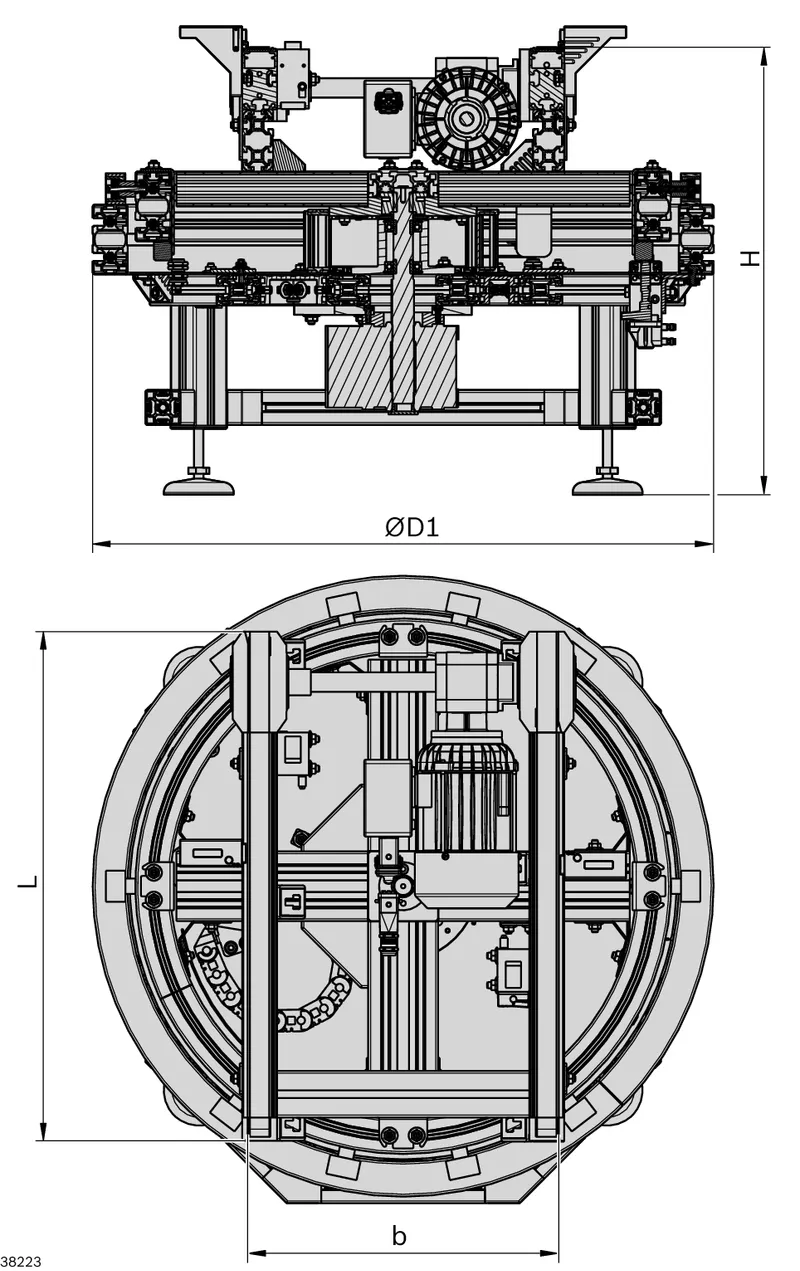

⌀ without protective cover D1, mm [mm]	800
⌀ with protective cover D2, mm [mm]	816
Track width in direction of transport [b] [mm]	400; 480
Length in direction of transport [lT] [mm]	400; 480
Delivery information	Optional: Protective covers assembled; Ready-to-install incl. supports
Preferred values [mm]	400; 480
Weight [kg]	0
