DRIVE MODULE AS 5/H-FR

Name: DRIVE MODULE AS 5/H-FR
Brand: Bosch Rexroth
SKU: 3842998840

MPN: 3842998840 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Drive units TS 5
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842998840 be shipped?

3842998840 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842998840 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842998840 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998840, subject to availability and destination.

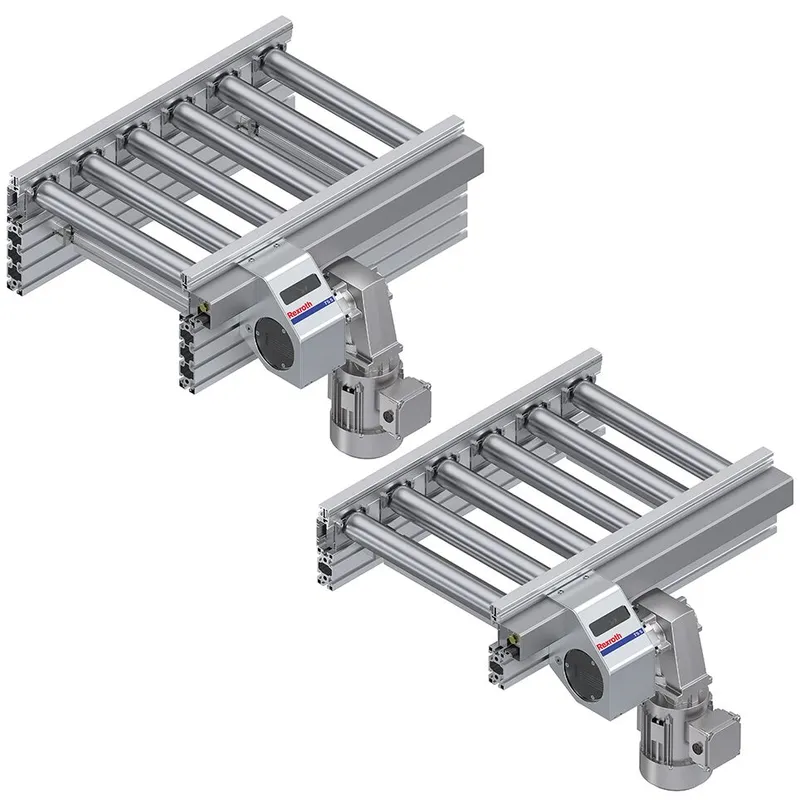

AS 5/H-FR drive unit For driving ST 5/…-FR conveyor units, CU 5/…-FR curves, DI 5/…-FR diverters, JU 5/…-FR junctions and an HQ 5/… lift transverse unit Reversible operation possible Accumulation operation possible Motor connection with plug (AT = S) or terminal box (AT = K) Freely selectable motor position and length Gear motor can be mounted on both sides on the transmission drive (MA = R and MA = L) Viewing window for checking the toothed belt Due to the simple and space-saving disassembly of the cover, adjacent components/machines can be positioned at a distance of 20 mm from the AS 5 Optional frequency converter Suitable for clean room of ISO class 7 Suitable for dry room <1% RH <b>Notice:</b> To transport workpieces without workpiece pallets. Use plastic lateral guides to ensure the workpiece is not damaged!

Specifications

Length max [l max] [mm]	390
Length min [L min] [mm]	4160
Gear motor [GM]	0 = Schnittstelle SW27 ohne Getriebemotor; 1 = Schnittstelle SW27 mit Getriebemotor; 2 = Schnittstelle zu SEW Rundwelle Ø 20 ohne Getriebemotor
Lateral guide material [LG]	1 = Stahl; 2 = Kunststoff; 3 = Aluminium
Roller material [TR]	1 = Stahl, verzinkt; 2 = Stahl, nitrocarburiert
Number of rollers [N]	3; ... 12; 16; 21; 32
Workpiece pallet length [lWT] [mm]	1040; 455; 650; 845
Delivery information	Mounting option for the gear motor on the right/left possible; Ready-to-install, gear motor enclosed separately
Preferred values [mm]	1040; 455; 650; 845
Material information	Shaft: Brass
Weight [kg]	0
