Bosch Rexroth 3842998838
DRIVE MODULE AS 5/H
- MPN
- 3842998838
- Category
- Drive units TS 5
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842998838?

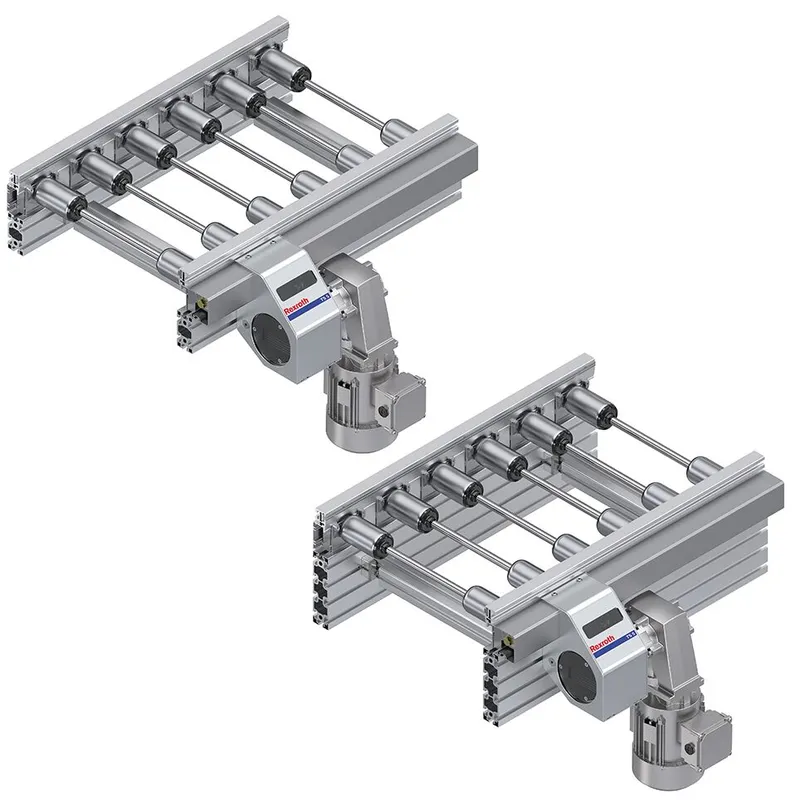

AS 5/H drive unit
For driving ST 5/… conveyor units, CU 5/… curves, DI 5/… diverters, JU 5/… junctions and an HQ 5/… lift transverse unit
Reversible operation possible
Accumulation operation possible
Motor connection with plug (AT = S) or terminal box (AT = K)

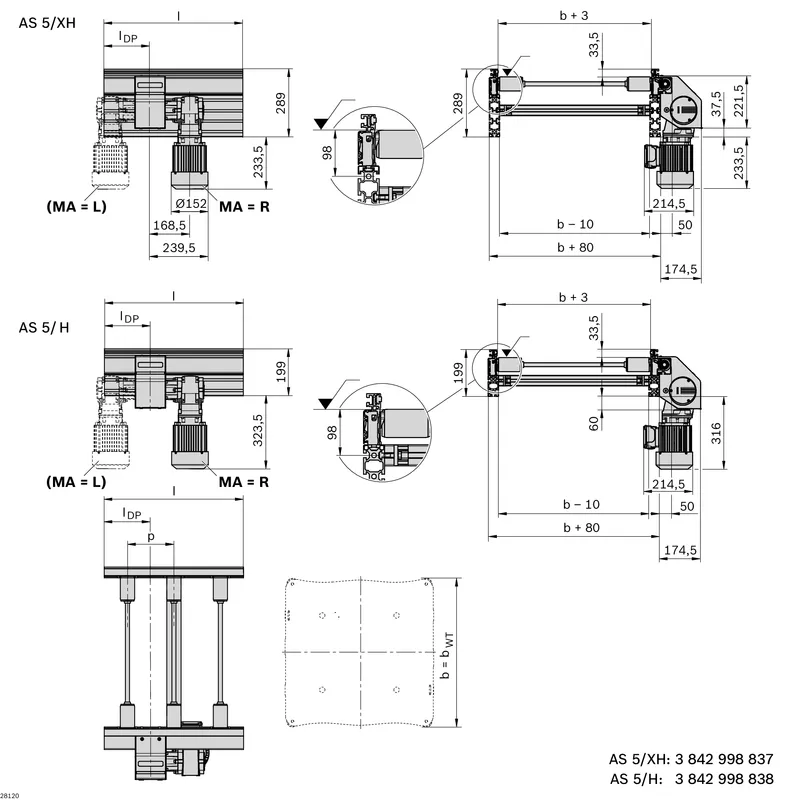

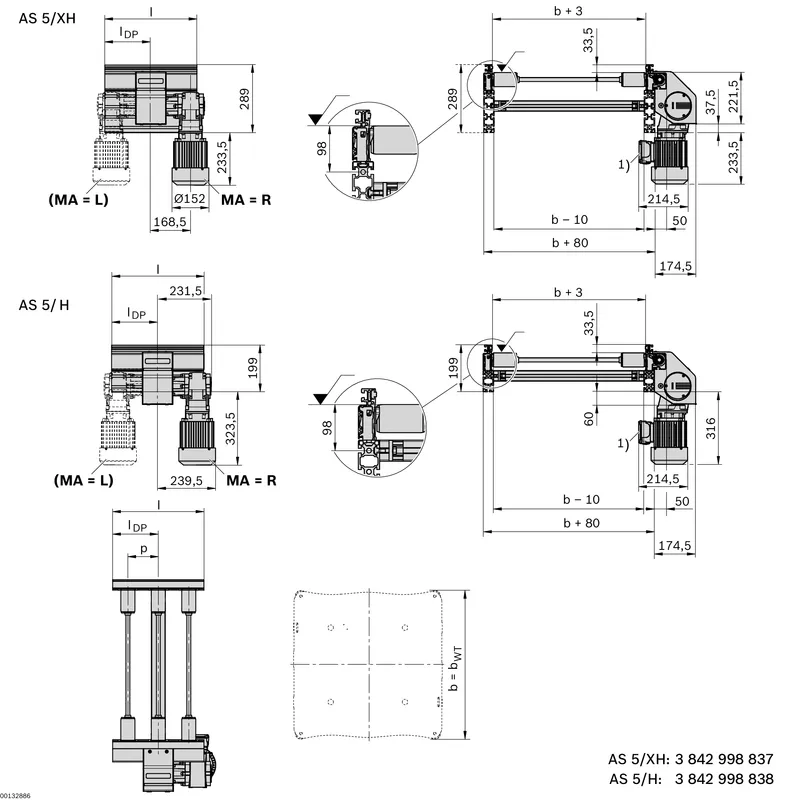

Freely selectable motor position and length
Gear motor can be mounted on both sides on the transmission drive (MA = R and MA = L)
Viewing window for checking the toothed belt
Due to the simple and space-saving disassembly of the cover, adjacent components/machines can be positioned at a distance of 20 mm from the AS 5
Optional frequency converter
Suitable for clean room of ISO class 7
Suitable for dry room <1% RH
Specifications
Specifications
| Length max [l max] [mm] | 390 |
| Length min [L min] [mm] | 4160 |
| Gear motor [GM] | 0 = Schnittstelle SW27 ohne Getriebemotor; 1 = Schnittstelle SW27 mit Getriebemotor; 2 = Schnittstelle zu SEW Rundwelle Ø 20 ohne Getriebemotor |
| Lateral guide material [LG] | 1 = Stahl; 2 = Kunststoff; 3 = Aluminium |
| Roller material [TR] | 1 = Stahl, verzinkt; 2 = Stahl, nitrocarburiert |
| Number of rollers [N] | 3; ... 12; 16; 21; 32 |
| Workpiece pallet length [lWT] [mm] | 1040; 455; 650; 845 |
| Delivery information | Mounting option for the gear motor on the right/left possible; Ready-to-install, gear motor enclosed separately |
| Preferred values [mm] | 1040; 455; 650; 845 |
| Material information | Shaft: Brass |
| Weight [kg] | 0 |
