POSITIONING UNIT PE 5/T

MPN: 3842998177
Category: Positioning units TS 5

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998177?

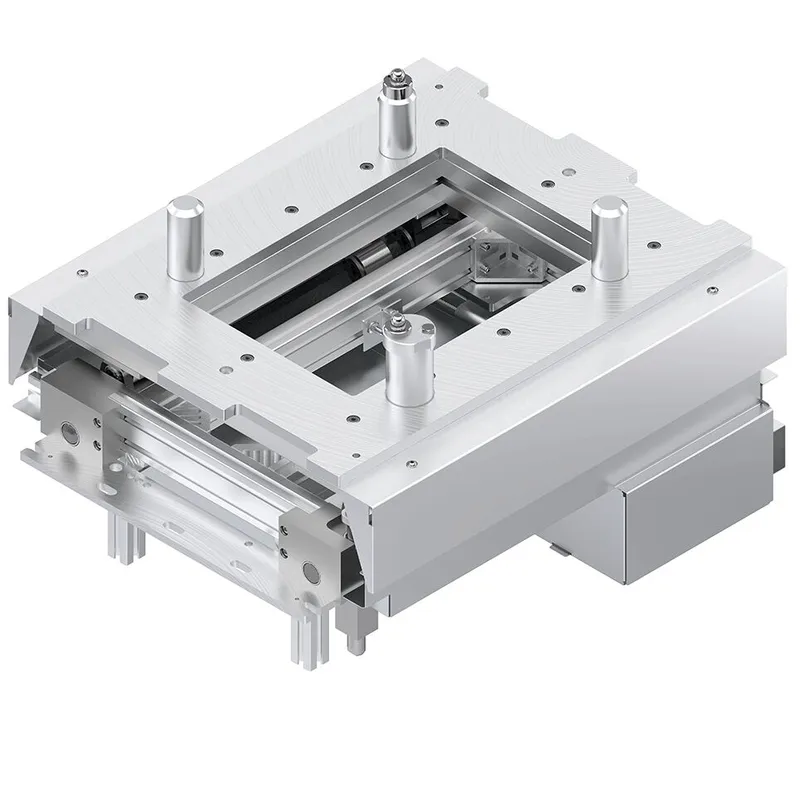

PE 5/T Positioning Unit

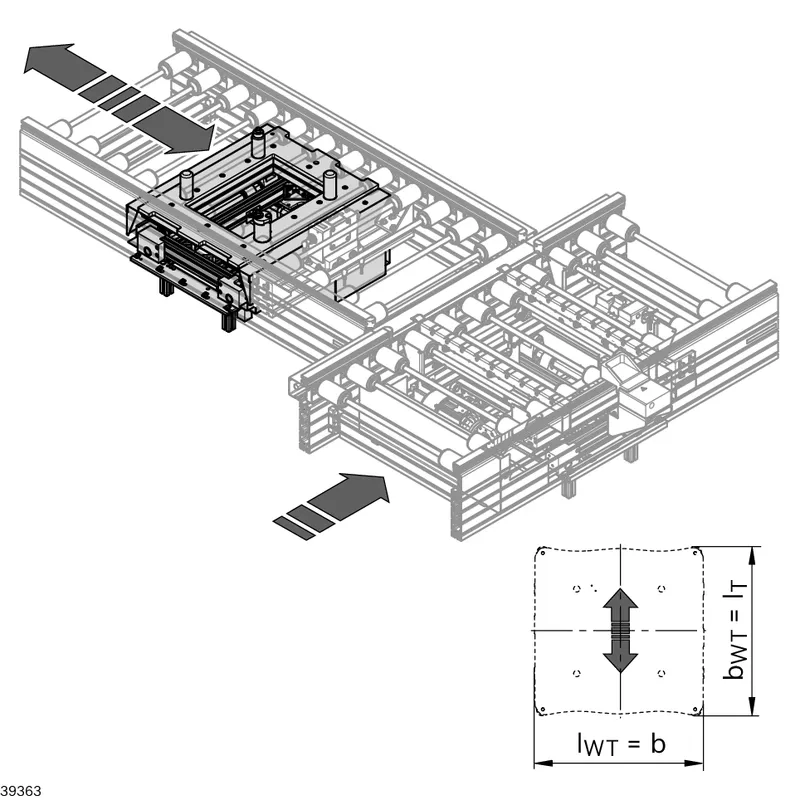

Positioning a workpiece pallet in a manual or automated processing station in the transverse conveyor with high positioning accuracy requirements (±0.3 mm)

Can be used with all WT 5 workpiece pallets

Installation from above also possible

Lift over transport level: 5 mm

Positioning accuracy: ±0.3 mm in x and y direction

Permissible vertical process force with center load: up to 4000 N 2) regardless of the WT weight

Suitable for ST 5/XH and ST 5/H (not ST 5/XH‑FR or ST 5/H‑FR)

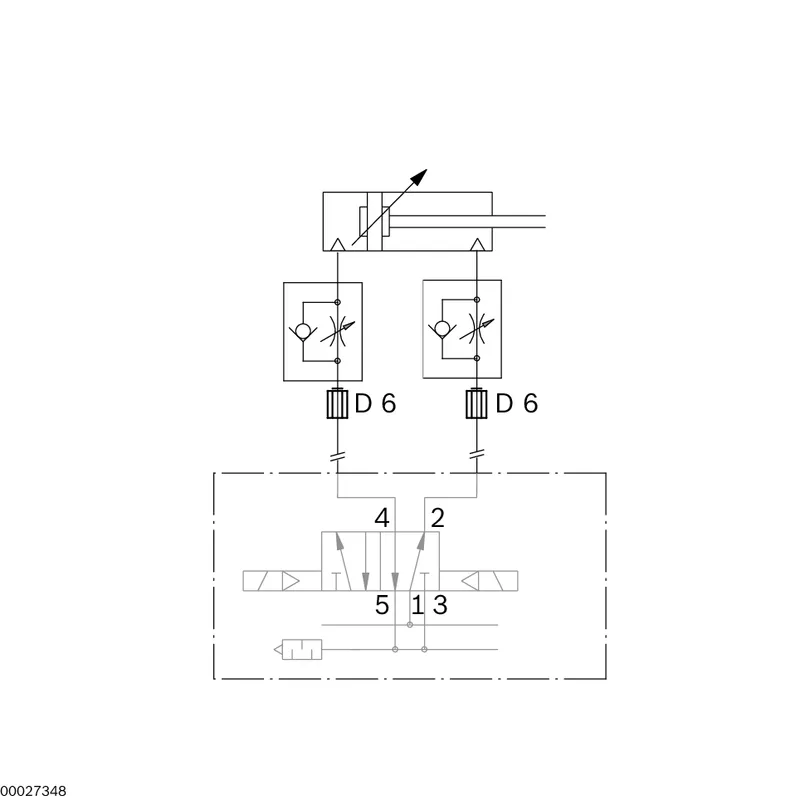

Compressed air connection: 5 ... 6 bar

Push in air connection: 8 mm

2) If assembling in a ST 5/H section place legs directly in front of and behind the PE 5/T.

Specifications

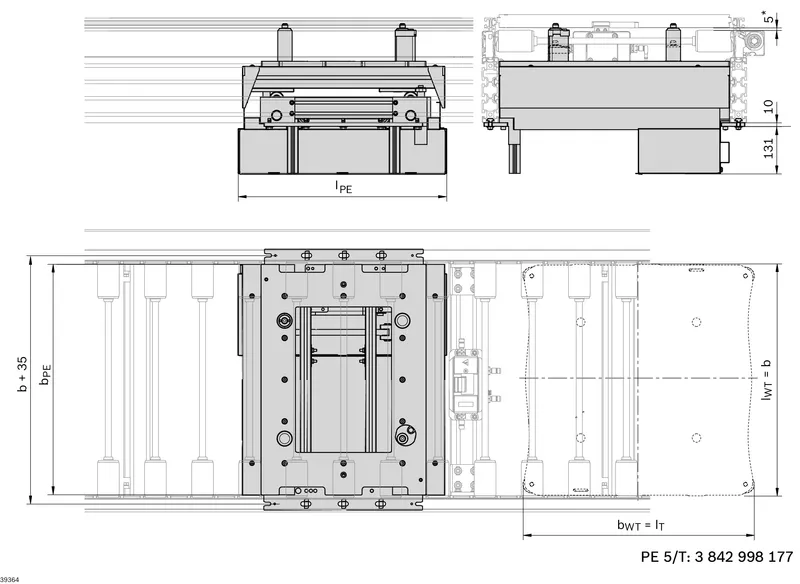

Length in direction of transport [lT] [mm]	455; 650; 845
Track width [b] [mm]	1040; 455; 650; 845
Positioning unit width [bPE] [mm]	441; 636; 831
Scope of delivery	Incl. fastening material for mounting the PE 5/T in ST 5/XH conveyor sections, and stop kit for VE 5/D‑300 and VE 5/D‑1000.
Delivery information	Fully assembled
Positioning unit length [lPE] [mm]	471; 576; 764
Preferred values [mm]	1040; 455; 650; 845
Required accessories	<sup>1)</sup> A position inquiry for the workpiece pallet on the PE is only possible through use of a stop gate VE 5/D‑300 or VE 5/D‑1000.; Assembly kit 3 842 996 185 is required for assembly in conveyor sections ST 5/H; Stop gate VE 5/200, VE 5/D‑300, VE 5/D‑301 or VE 5/D‑1000<sup>1)</sup>
Recommended accessories	Lateral guide cover; Protective sleeves
Weight [kg]	0
