Bosch Rexroth 3842998079

STOP GATE VE 5/D-301

MPN: 3842998079
Category: Stop gate TS 5

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998079?

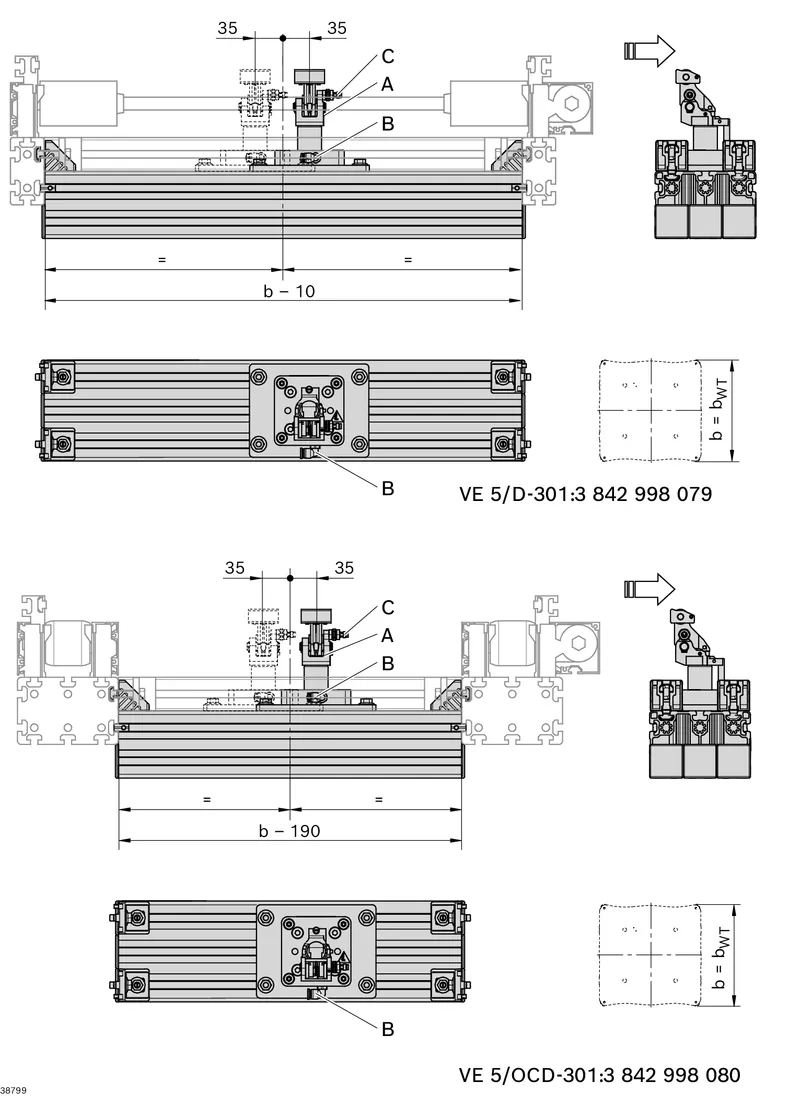

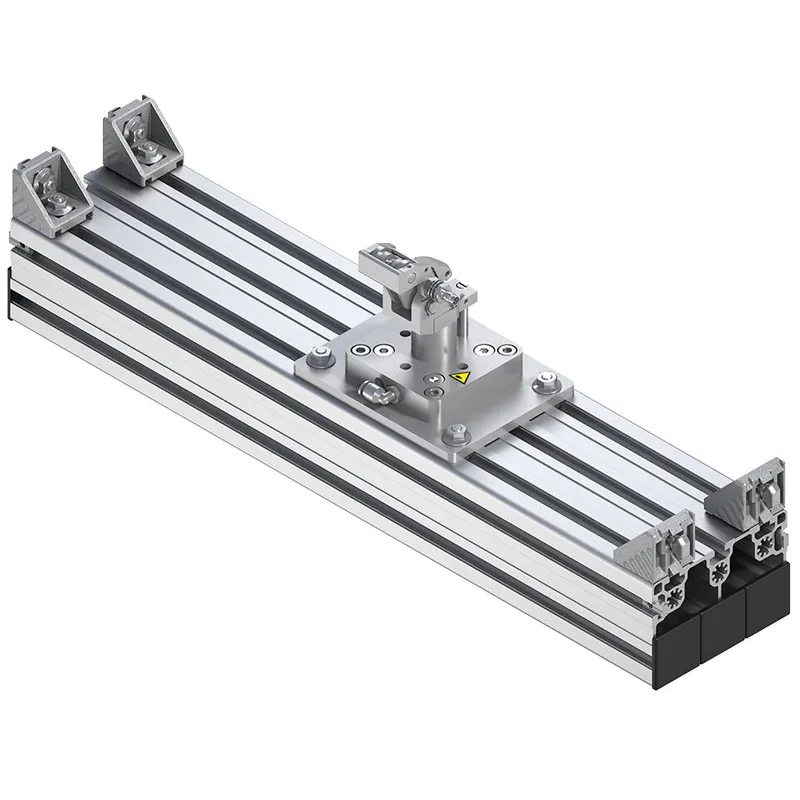

VE 5/D-301 stop gate

Damped stopping of one or more accumulating workpiece pallets at the defined workpiece pallet stop surfaces.

Pneumatic stop gate with steplessly adjustable damping. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped.

Compressed air connection: 5 ... 6 bar

Pneumatic connection, pushlock Ø 6 mm

Installation location AO = 1: Main section (stop gate is 35 mm eccentric)

Installation location AO = 2: Transverse section (stop gate is in the center, only applies for transverse section HQ 5)

Specifications

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	5
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Incl. fastening material for installation on conveyor section; Push in air connection ø 6 mm
Delivery information	Not assembled
Preferred values [mm]	1040; 455; 650; 845
Recommended accessories	Sensor 3 842 551 761 for<br/>- position inquiry top/bottom on request<br/>- position inquiry damper (handle retracted), sensor M8
Weight [kg]	0
