Bosch Rexroth 3842998053
DRIVE MODULE AS 2/C-100
- MPN
- 3842998053
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842998053?

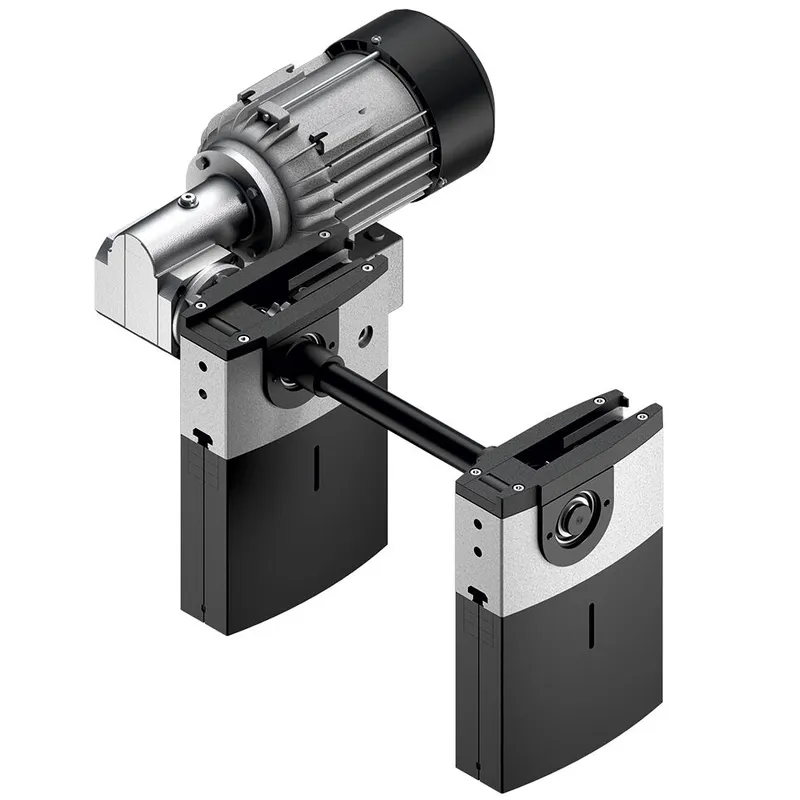

Drive Module AS 2/C-100
Drive for conveyor unit self-assembly
Conveyor medium: Flat top chain (where KA = A suitable for use in an EPA)
Motor mounting on right, left or centrally (centrally on track widths of 240 mm and above)
Motor connection: optionally with cable/plug or terminal box motor connection
Special models on request
Reversible operation not permitted
Use with medium accumulation loads
We strongly advise using the LU 2 automatic lubrication unit
Specifications
Specifications
| ESD | Yes |
| Dry room [%rF] | <1 |
| Track width in direction of transport [b max] [mm] | 1200 |
| Track width in direction of transport [b min] [mm] | 160 |
| Nominal speed [vN] | 6 m/min; 9 m/min; 0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min |
| Conveyor medium length [lAS] [mm] | 475 |
| Scope of delivery | Includes fastening material to mount on the ST 2/… conveyor section, as well as to mount on an adjacent return unit. |
| Delivery information | Fully assembled |
| Notice | Chain suitable for use in an EPA (KA = A); Individual width variants can be ordered |
| Preferred values [mm] | 1040; 1200; 160; 240; 320; 400; 480; 640; 800 |
| Clean room classification | ISO class 7 |
| Conveyor medium | Flat top chain (with KA = A suitable for use in an EPA) |
| Section load in accumulation operation [kg] | 100 |
| Recommended accessories | Connection Kits; LU 2 Automatic Lubrication Unit |
| Weight [kg] | 0 |
