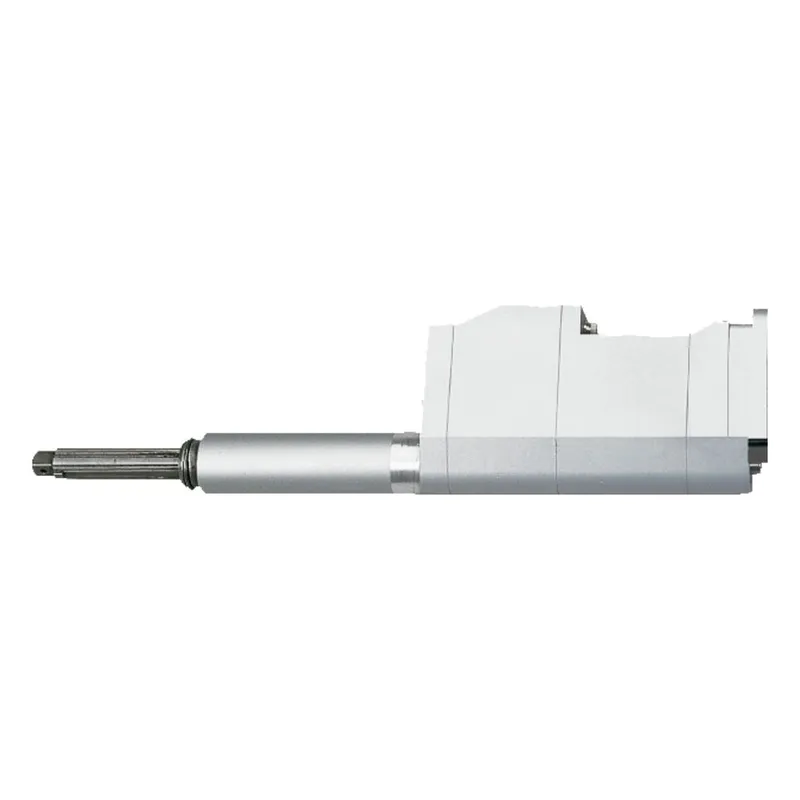

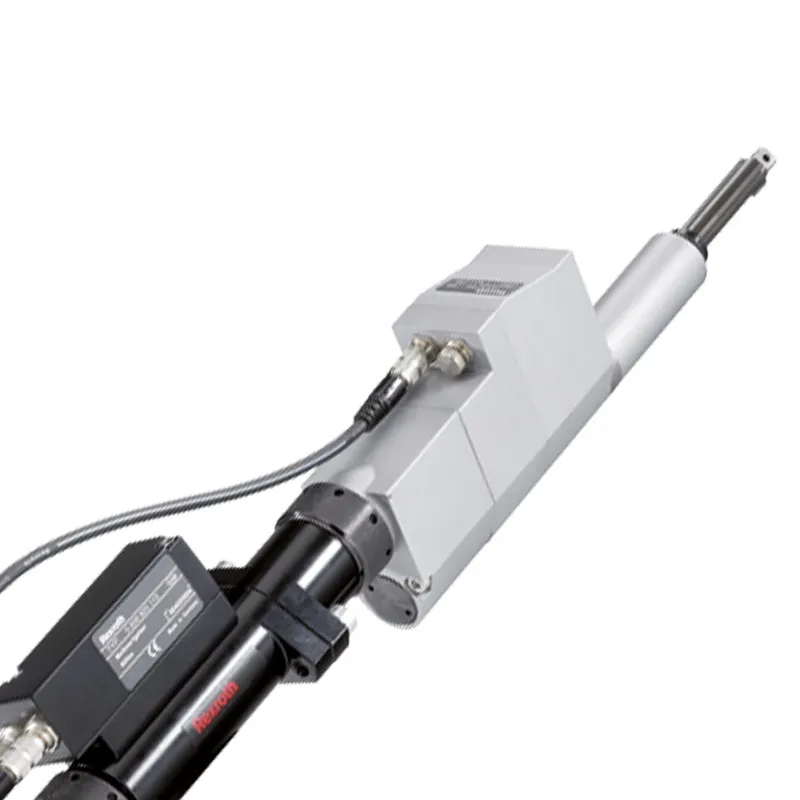

OFFSET OUTPUT DRIVE 3VMC060-SD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Offset output drive with integrated measurement transducer |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0608801014 be shipped?
0608801014 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0608801014 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0608801014 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0608801014, subject to availability and destination.
Working range 3.2-57 Nm Reduced center-to-center distances Max. output speed: 740 1/min Torque measurement directly at the screw Proximity switching digital measurement transfer Efficiency fluctuations do not affect measurements 100 % downstream-compatible with previous model With integrated dynamic maintenance counter Up to 2 million tightening processes without maintenance Suitable for robot applications with tool change systems (docking capability)
Specifications
Specifications
| Working range (max.) [Nm] | 57.0 |
| Working range (min) [Nm] | 6.0 |
| Maximum drive speed (1/min) [min⁻¹] | 295.0 |
| Tool mount | 3/8" square |
| Weight [kg] | 3.4; 3.35 |
| Typical efficiency | 0.93 |
| Maximum torque [Nm] | 57.0 |
| Length A | 152 |
| Installation length | 311.0 |
| Perm. ambient temperature (max) [°C] | 55.0 |
| Perm. ambient temperature (min) [°C] | 0.0 |
| Spring force (max) | 38.0 |
| Spring force (min) | 14.0 |
| Protection class | IP54 (NEMA 12) when installed |
| Reduction ratio | 1 |
| Spring travel | 50.0 |
| Accuracy in the working range | ≤ 2.5 % (6s according to VDI/VDE 2647) |
| Angular resolution | ≤ 0,25° |
| Order number | 0608801014 |
| Code | 3VMC060-SD |
