Bosch Rexroth 0608801017

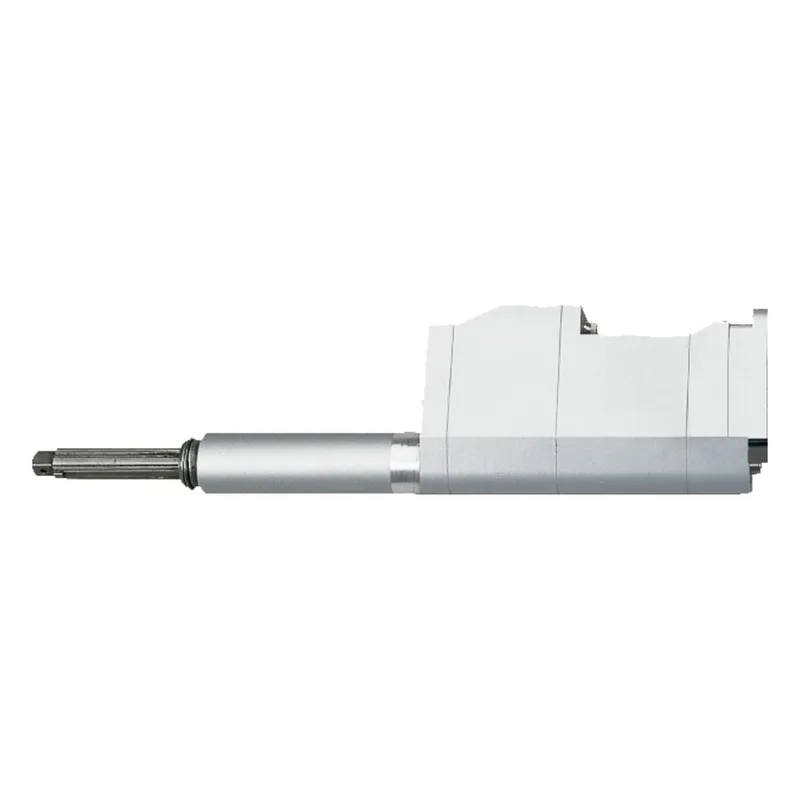

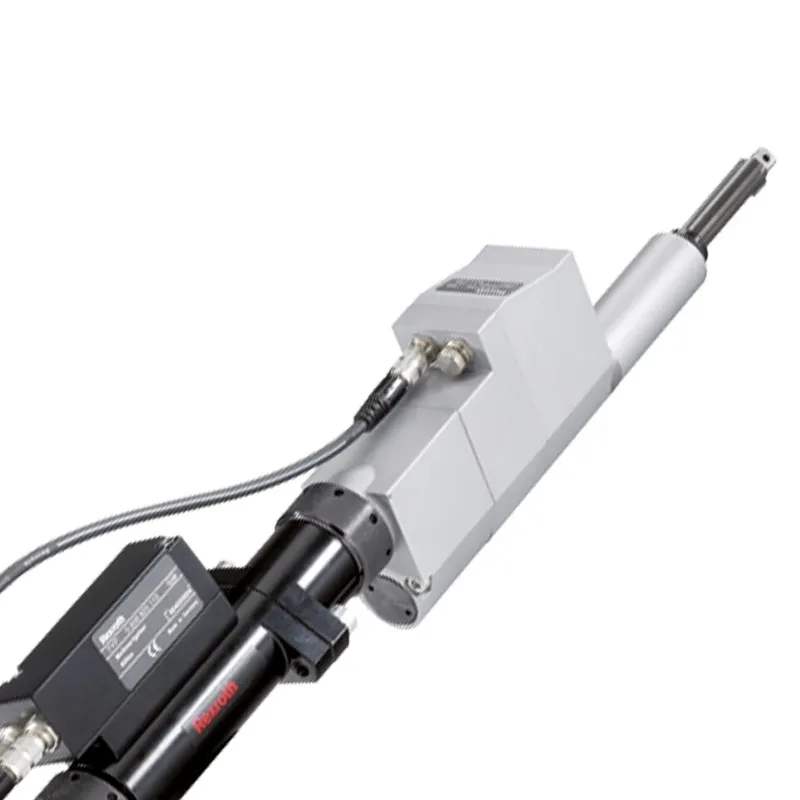

OFFSET OUTPUT DRIVE 4VMC360-SD

MPN: 0608801017
Category: Offset output drive with integrated measurement transducer

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 0608801017?

Working range 15-342 Nm

Max. output drive speed: 1000 rpm

Reduced center-to-center distances

Torque measurement directly at the screw

Proximity switching digital measurement transfer

Efficiency fluctuations do not affect measurements

Specifications

Working range (max.) [Nm]	342.0
Working range (min) [Nm]	36.0
Maximum drive speed (1/min) [min⁻¹]	135.0
Tool mount	3/4" square
Weight [kg]	11.7; 12.5
Typical efficiency	0.92
Maximum torque [Nm]	360.0
Length A	246
Installation length	476.0
Perm. ambient temperature (max) [°C]	55.0
Perm. ambient temperature (min) [°C]	0.0
Spring force (max)	100.0
Spring force (min)	30.0
Protection class	IP54 (NEMA 12) when installed
Reduction ratio	2.56
Spring travel	80.0
Accuracy in the working range	≤ 2.5 % (6s according to VDI/VDE 2647)
Angular resolution	≤ 0,25°
Order number	0608801017
Code	4VMC360-SD
