Offset output drive with integrated measurement transducer Parts









Compare Offset output drive with integrated measurement transducer
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Working range (max.) [Nm] | Tool mount | Weight [kg] | Order number | Code |
|---|---|---|---|---|---|
| 0608801017 | 342.0 | 3/4" square | 11.7; 12.5 | 0608801017 | 4VMC360-SD |
| 0608801016 | 200.0 | 3/4" square | 7.1; 7.95 | 0608801016 | 4VMC210-SD |

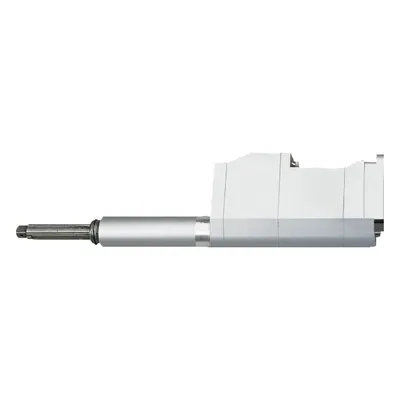

| 0608801015 | 142.0 | 1/2" square | 4.9; 6.55 | 0608801015 | 4VMC150-SD |
| 0608801021 | 142.0 | 7/16" quick-change chuck | 4.9; 4.9 | 0608801021 | 4VMC150-QC |
| 0608801023 | 57.0 | 3/8" square with centering pin | 3.4; 3.35 | 0608801023 | 3VMC060-SP |
| 0608801014 | 57.0 | 3/8" square | 3.4; 3.35 | 0608801014 | 3VMC060-SD |

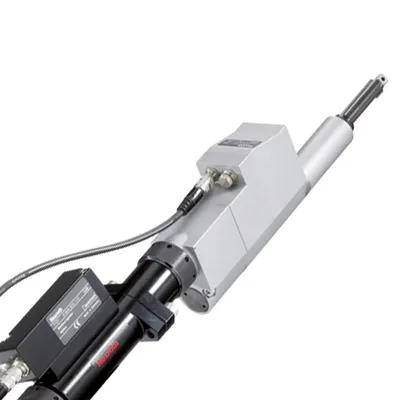

| 0608801020 | 57.0 | 7/16" quick-change chuck | 3.4; 3.4 | 0608801020 | 3VMC060-QC |
| 0608801012 | 16.0 | 3/8" square | 3.4; 3.3 | 0608801012 | 3VMC017-SD |
| 0608801018 | 16.0 | 1/4" quick-change chuck | 3.4; 3.4 | 0608801018 | 3VMC017-QC |
Common to all listed parts
| Perm. ambient temperature (max) [°C] | 55.0 |
| Perm. ambient temperature (min) [°C] | 0.0 |
| Protection class | IP54 (NEMA 12) when installed |
| Accuracy in the working range | ≤ 2.5 % (6s according to VDI/VDE 2647) |
| Angular resolution | ≤ 0,25° |
