Home / Bosch Rexroth / Feed output drive / Bosch Rexroth 0608800650

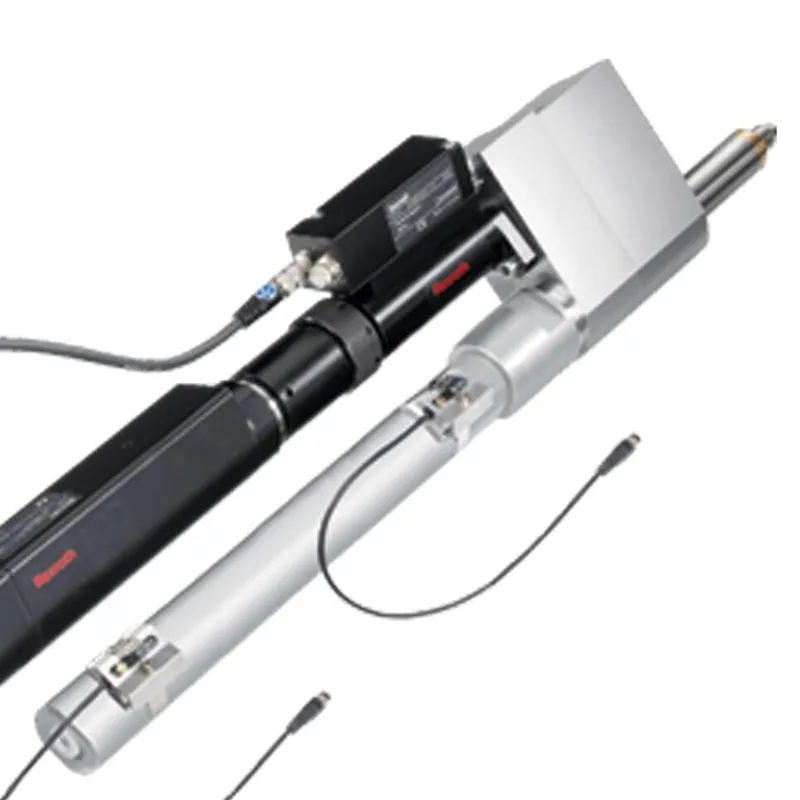

Bosch Rexroth 0608800650

FEED OUTPUT DRIVE 4S1M8 SZ4 1/2SQP

MPN: 0608800650
Category: Feed output drive

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 0608800650?

Working range 6-138 Nm

Max. output drive speed: 1000 rpm

Integrated infeed movement

In connection with automatic bolt feed

Standard tool mounts and compressed air connections

Maintenance-free for 1 million full load cycles

Specifications

Nominal size [mm]	4
Maximum air pressure [bar]	4.0
Order number	0608800650
Code	4S1M8
Working range (max.) [Nm]	138.0
Working range (min) [Nm]	15.0
Maximum drive speed (1/min) [min⁻¹]	340.0
Tool mount	1/2" square with centering pin
Weight [kg]	6.6; 7.15
Typical efficiency	0.9
Maximum torque [Nm]	150.0
Length A	101
Installation length	219.0
Reduction ratio	1
Stroke [mm]	200

0608800650: frequently asked questions

When can 0608800650 be shipped?

0608800650 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0608800650 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0608800650 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0608800650, subject to availability and destination.
