Bosch Rexroth 0608801018

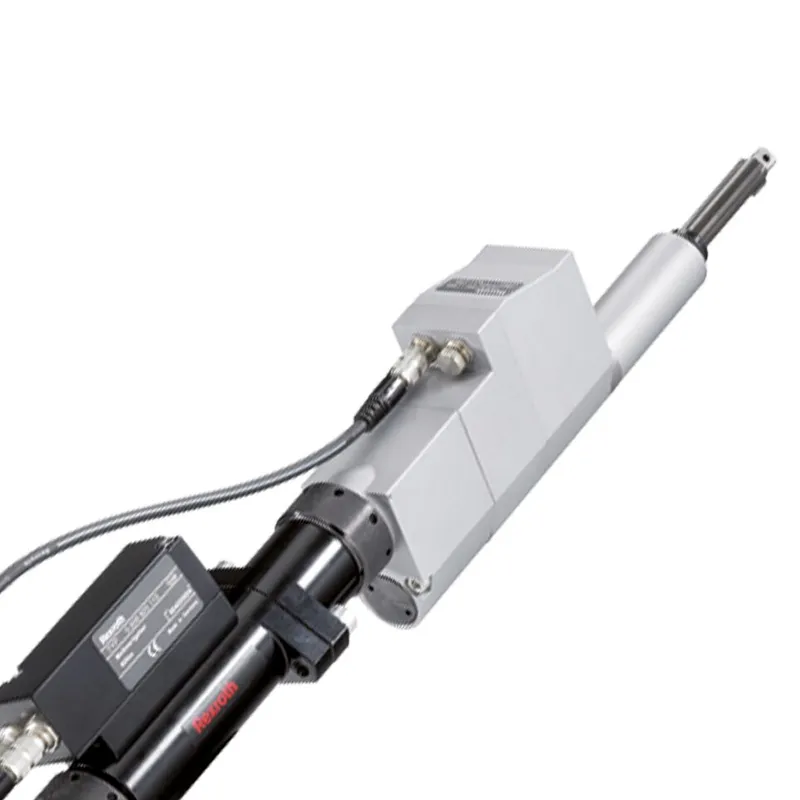

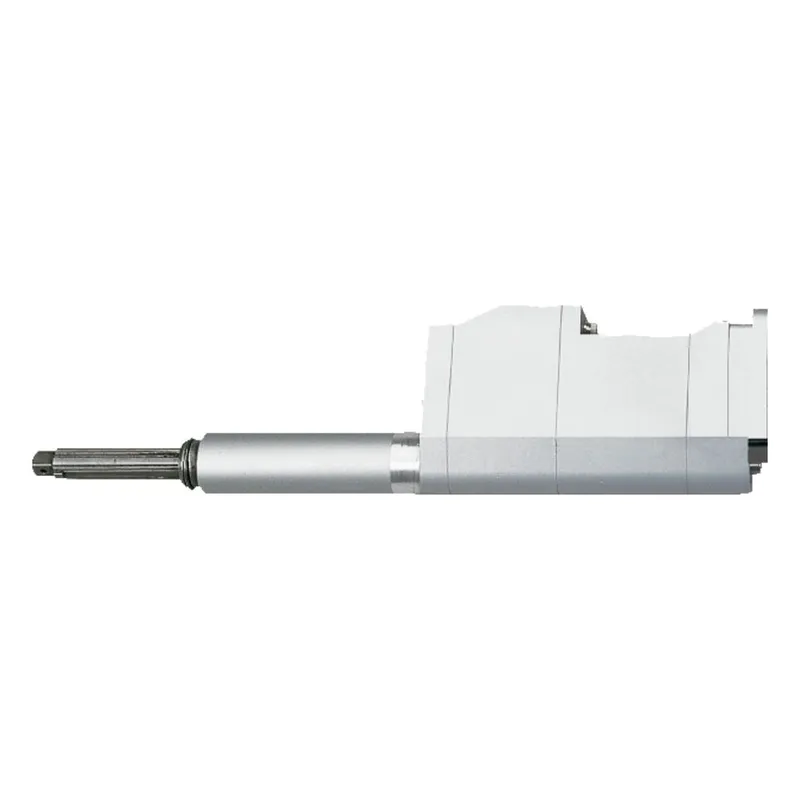

OFFSET OUTPUT DRIVE 3VMC017-QC

MPN: 0608801018
Category: Offset output drive with integrated measurement transducer

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 0608801018?

Reduced center-to-center distances

Torque measurement directly at the screw

Proximity switching digital measurement transfer

Efficiency fluctuations do not affect measurements

100 % downstream-compatible with previous model

With integrated dynamic maintenance counter

Up to 2 million tightening processes without maintenance

Suitable for robot applications with tool change systems (docking capability)

Specifications

Working range (max.) [Nm]	16.0
Working range (min) [Nm]	1.7
Maximum drive speed (1/min) [min⁻¹]	295.0
Tool mount	1/4" quick-change chuck
Weight [kg]	3.4; 3.4
Typical efficiency	0.93
Maximum torque [Nm]	16.0
Length A	152
Installation length	311.0
Perm. ambient temperature (max) [°C]	55.0
Perm. ambient temperature (min) [°C]	0.0
Spring force (max)	38.0
Spring force (min)	14.0
Protection class	IP54 (NEMA 12) when installed
Reduction ratio	1
Spring travel	50.0
Accuracy in the working range	≤ 2.5 % (6s according to VDI/VDE 2647)
Angular resolution	≤ 0,25°
Order number	0608801018
Code	3VMC017-QC
