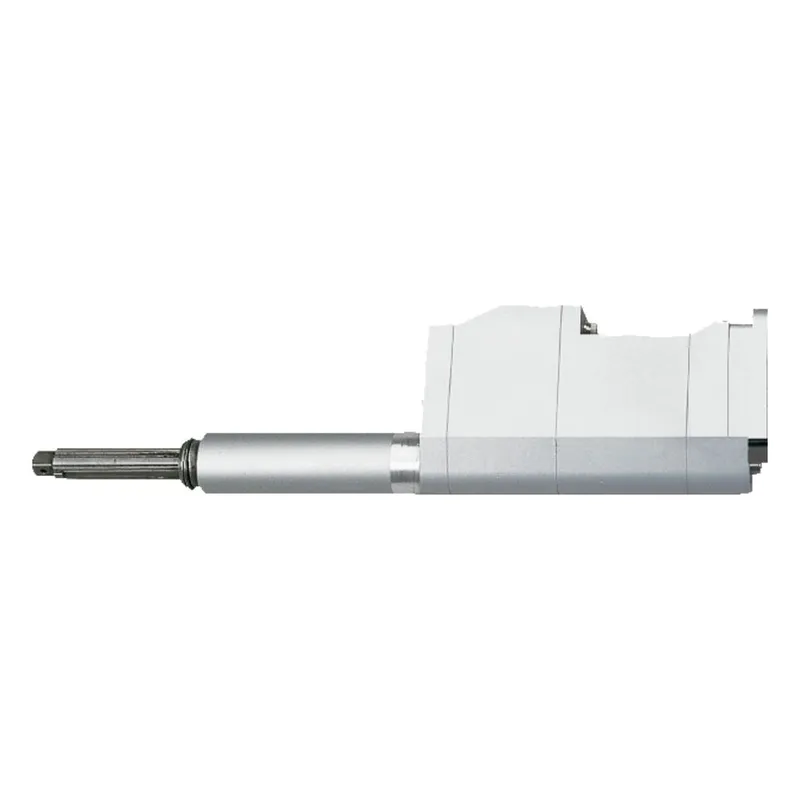

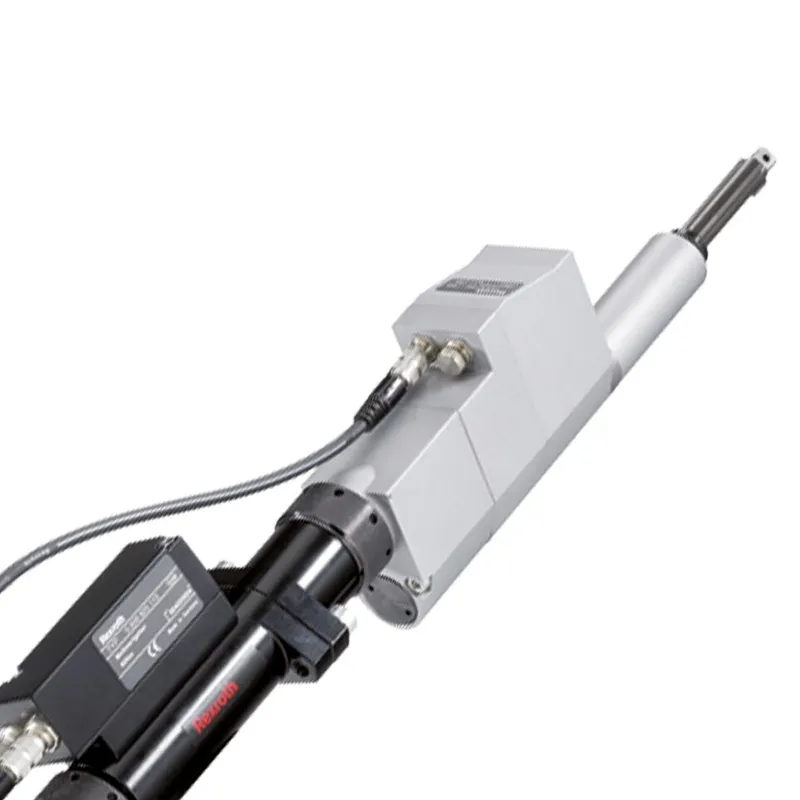

OFFSET OUTPUT DRIVE 4VMC210-SD

Name: OFFSET OUTPUT DRIVE 4VMC210-SD
Brand: Bosch Rexroth
SKU: 0608801016

MPN: 0608801016 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Offset output drive with integrated measurement transducer
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 0608801016 be shipped?

0608801016 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0608801016 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0608801016 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0608801016, subject to availability and destination.

Working range 15-342 Nm Max. output drive speed: 1000 rpm Reduced center-to-center distances Torque measurement directly at the screw Proximity switching digital measurement transfer Efficiency fluctuations do not affect measurements

Specifications

Working range (max.) [Nm]	200.0
Working range (min) [Nm]	21.0
Maximum drive speed (1/min) [min⁻¹]	240.0
Tool mount	3/4" square
Weight [kg]	7.1; 7.95
Typical efficiency	0.92
Maximum torque [Nm]	210.0
Length A	252
Installation length	438.0
Perm. ambient temperature (max) [°C]	55.0
Perm. ambient temperature (min) [°C]	0.0
Spring force (max)	100.0
Spring force (min)	30.0
Protection class	IP54 (NEMA 12) when installed
Reduction ratio	1.46
Spring travel	80.0
Accuracy in the working range	≤ 2.5 % (6s according to VDI/VDE 2647)
Angular resolution	≤ 0,25°
Order number	0608801016
Code	4VMC210-SD
