Beckhoff EQ2339-0022

EtherCAT Box, 16-channel digital combi, 24 V DC, 3 ms, 0.5 A, M12, stainless steel

MPN: EQ2339-0022
Category: EQ2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EQ2339-0022?

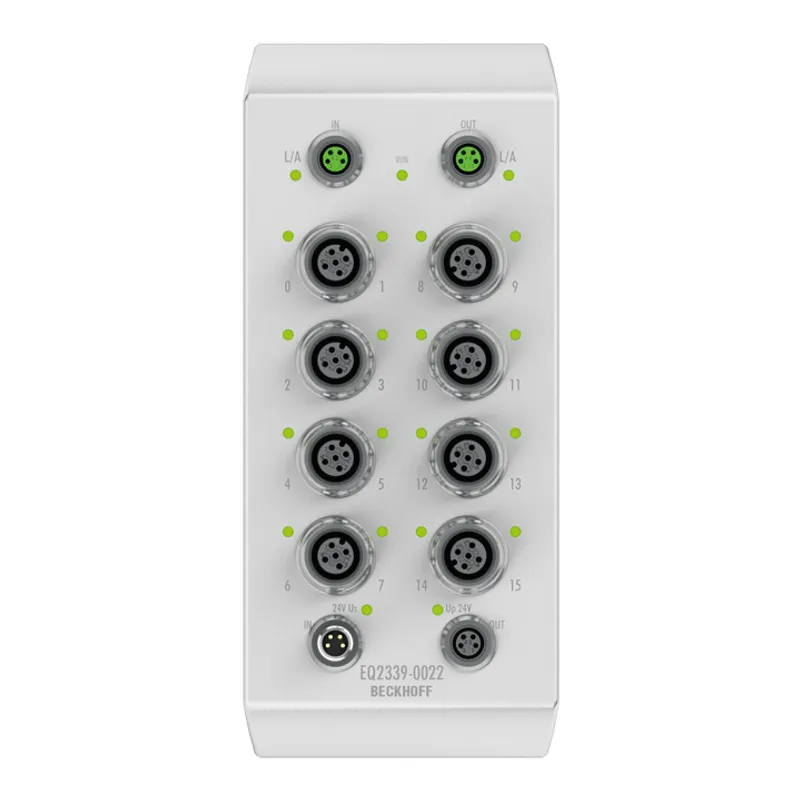

The EQ2339 EtherCAT Box has 16 digital channels, each of which can optionally be operated as an input or as an output. A configuration for using a channel as input or output is not necessary; the input circuit is internally connected to the output

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Specification	EN 61131-2, type 1/3
Number of channels	16 digital inputs or outputs
Input/output connections	M12 x 1, 5-pin, a-coded
Input filter	3.0 ms
“0” signal voltage	-3…+5 V
“1” signal voltage	11…30 V, 6 mA input current (EN 61131-2, type 3)
Sensor supply	from load supply voltage, max. 0.5 A, short-circuit proof in total
Load type	ohmic, inductive, lamp load
Rated load voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, individually short-circuit proof, ∑ 4 A
Switching times	typ. TON: 60 µs, typ. TOFF: 300 µs
Short-circuit current	typ. 1.5 A
Distributed clocks	–
Auxiliary power current	typ. 20 mA + load
Current consumption from US	120 mA
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Electrical isolation	500 V
Special features	stainless steel, Hygienic Design
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP69K (according to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	72 mm x 160 mm x 43 mm
Material	stainless steel
Installation	2 fixing lugs for M5
