Beckhoff EQ2008-0002

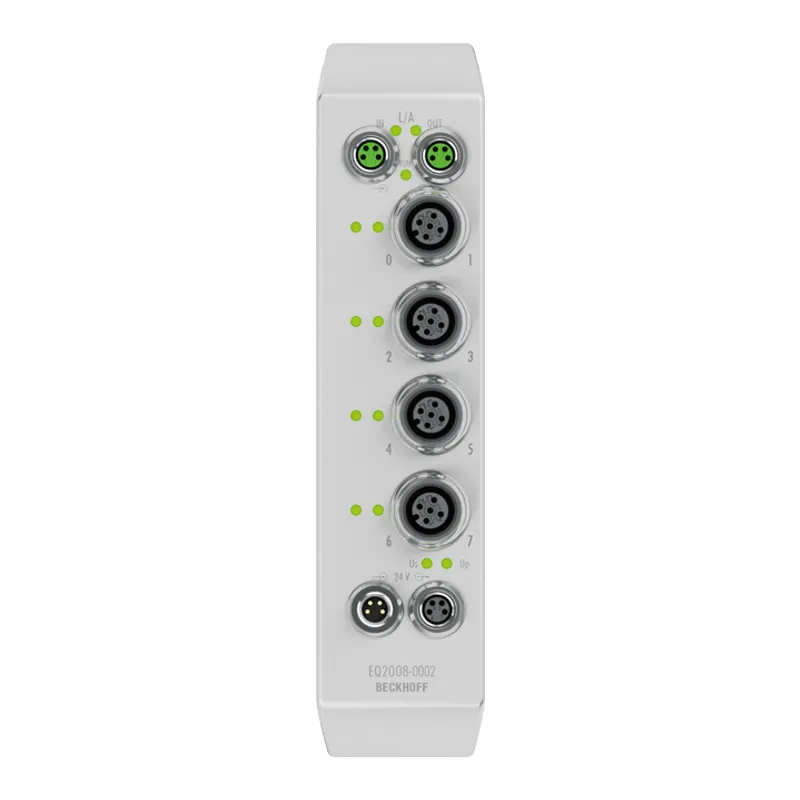

EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M12, stainless steel
- MPN
- EQ2008-0002
- Category
- EQ2xxx | Digital output
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EQ2008-0002?
The EQ2008-0002 EtherCAT Box is intended for processing digital/binary signals. It relays the binary control signals from the controller to the actuators at the process level. The eight outputs handle load currents of up to 0.5 A. A short-term overload
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of outputs | 8 |
| Output connections | M12 x 1, 5-pin, a-coded |
| Rated load voltage | 24 V DC (-15%/+20%) |
| Load type | ohmic, inductive, lamp load |
| Nominal output voltage | 24 V DC (-15%/+20%) |
| Max. output current | 0.5 A per channel, individually short-circuit proof, ∑ 4 A |
| Switching times | typ. TON: 50 µs, typ. TOFF: 100 µs |
| Short-circuit current | typ. 1.5 A |
| Distributed clocks | – |
| Current consumption from US | typ. 130 mA |
| Auxiliary power current | typ. 20 mA + load |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | 500 V |
| Special features | stainless steel, Hygienic Design |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP69K (according to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 39 mm x 160 mm x 43 mm |
| Material | stainless steel |
| Installation | 2 fixing lugs for M5 |
