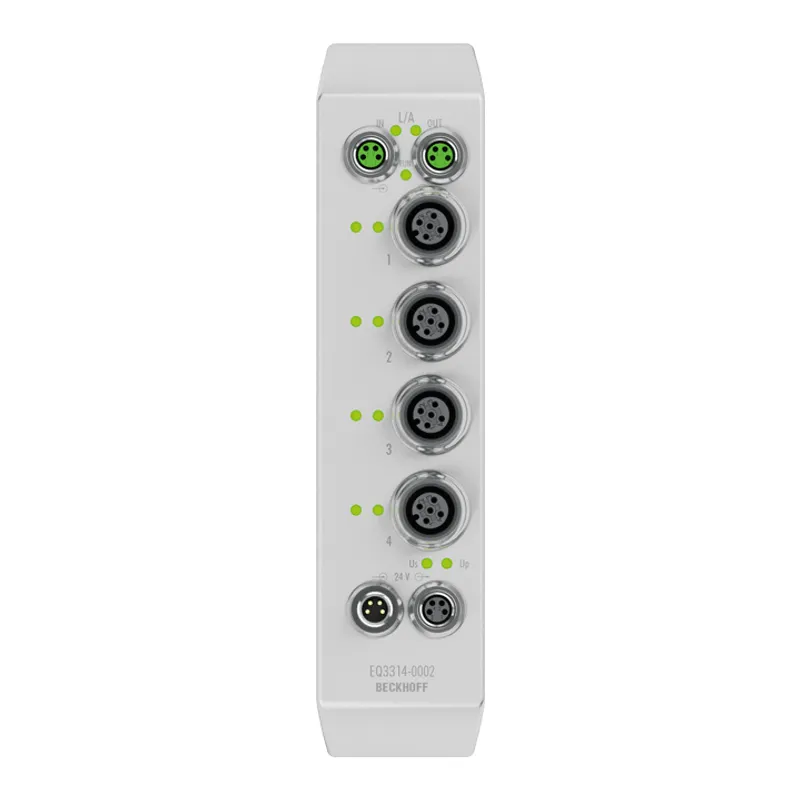

Beckhoff EQ3314-0002

EtherCAT Box, 4-channel analog input, temperature, thermocouple, 16 bit, M12, stainless steel

MPN: EQ3314-0002
Category: EQ3xxx | Analog input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EQ3314-0002?

The EQ3314 EtherCAT Box with analog inputs permits four thermocouples to be directly connected. The module’s circuit can operate thermocouple sensors using the 2-wire technique. Linearization over the full temperature range is realized with the aid of a

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Number of inputs	4
Connection method	M12 socket, 2-wire connection for thermocouple
Conversion time	2.5 s up to 20 ms, see documentation, default: approx. 250 ms
Resolution	0.1°C per digit
Sensor types	types J, K, L, B, E, N, R, S, T, U (default setting type K), mV measurement
Signal type	thermocouple
Measuring range	depending on sensor type; preset value is type K, -100…+1370°C
Measurement error/uncertainty	±0.3% for type K (relative to full scale value; further types see documentation)
Nominal voltage	24 V DC (-15%/+20%)
Distributed clocks	–
Input filter	5 variations, configurable
Current consumption from US	120 mA
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Electrical isolation	500 V
Special features	stainless steel, Hygienic Design
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP69K (according to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	39 mm x 160 mm x 43 mm
Material	stainless steel
Installation	2 fixing lugs for M5
